Alpha & Omega Semiconductor Inc. AOZ8802ADI
- Part No.:
- AOZ8802ADI
- Manufacturer:
- Alpha & Omega Semiconductor Inc.
- Category:
- TVS Diodes
- Package:
- 6-UFDFN
- Datasheet:
-
AOZ8802ADI.pdf
- Description:
- TVS DIODE 5VWM 16.5VC 6DFN
- Quantity:
- Payment:
- Shipping:
Inventory:7,957
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
AOZ8802ADI from Alpha & Omega Semiconductor is an ultra-low capacitance TVS diode array designed to protect dual high-speed data lines (e.g., USB 2.0 D+/D−) against ESD, EFT, and lightning transients. It delivers 0.3pF line-to-line capacitance, 5.0V working peak reverse voltage, ±15kV IEC 61000-4-2 contact/air discharge rating, and clamping voltages of 12V/–3V at 1A, enabling HDMI 1.3 and USB 2.0 signal integrity preservation in compact consumer electronics.
For engineers reviewing the AOZ8802ADI datasheet, pinout, applications, or equivalent options, key selection criteria include its DFN-6 flow-through layout for minimal parasitic inductance, verified 6GHz insertion loss performance, dual-channel protection architecture, and RoHS-compliant halogen-free packaging suitable for space-constrained mobile and display interfaces.
Technical Context
The AOZ8802ADI integrates four surge-rated steering diodes with an internal TVS element in a monolithic structure, enabling bidirectional transient shunting to VN (ground) or VCC (5V rail). Its channel-specific clamping behavior-12V positive / –3V negative at 1A-ensures low-voltage logic compatibility while maintaining sub-1ns response time per IEC 61000-4-2.
Designed for differential signaling paths, it maintains matched 0.3pF I/O–I/O capacitance and 0.65pF I/O–ground capacitance, minimizing skew and crosstalk up to 6GHz. The DFN-6 package's symmetric pinout (pins 1–3 tied internally to ground/TVS, pins 4–6 NC) supports direct in-line placement without trace routing detours.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Working Peak Reverse Voltage | 5.0V - Matches standard USB 2.0 Vbus supply, ensuring no DC leakage during normal operation. |
| Line-to-Line Capacitance | 0.30pF (typ) - Preserves USB 2.0 480Mbps eye diagram integrity with negligible signal distortion. |
| ESD Rating (IEC 61000-4-2) | ±15kV contact/air - Exceeds Level 4 immunity requirement for handheld and portable device interfaces. |
| Clamping Voltage (1A) | +12V / –3V - Limits transient overvoltage below IC I/O absolute maximum ratings during fast ESD events. |
| Junction Temp Range | –40°C to +125°C - Supports reliable operation in thermally demanding consumer enclosure environments. |
| Package | DFN-6 (1.6 × 1.0 × 0.55 mm) - Enables high-density PCB layouts with solderable ground paddle for thermal and EMI control. |
Pinout & Package

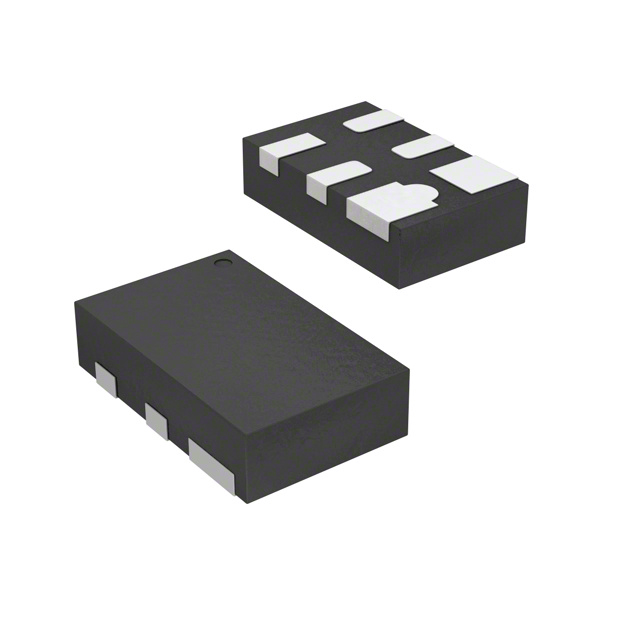

AOZ8802ADI uses a RoHS-compliant, halogen-free DFN-6 package measuring 1.6mm × 1.0mm × 0.55mm with exposed thermal pad. Pin 1 is marked by dot; pins 1–3 connect internally to ground and TVS elements, while pins 4–6 are no-connect terminals for mechanical stability during reflow soldering.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | Channel 1 Anode / Ground Tie | Internally connected to cathode of CH1 steering diode and TVS ground node - forms low-inductance path for transient current. |
| 2 | Channel 2 Anode / Ground Tie | Internally connected to cathode of CH2 steering diode and same TVS ground node - enables common-mode transient suppression. |
| 3 | Ground / TVS Cathode | Dedicated low-impedance ground terminal for TVS element - minimizes clamping voltage overshoot via shortest PCB return path. |
| 4 | No Connect | Mechanical anchor only - no electrical function; must remain unconnected to avoid parasitic coupling. |
| 5 | No Connect | Mechanical anchor only - ensures coplanarity and solder joint reliability on fine-pitch DFN footprint. |
| 6 | No Connect | Mechanical anchor only - provides symmetrical thermal mass distribution across package body. |
Key Features
| Feature | Design Value |
|---|---|
| Ultra-low line-to-line capacitance | 0.3pF typical - eliminates signal rise-time degradation and jitter in 480Mbps USB 2.0 and HDMI 1.3 differential links. |
| Flow-through pin configuration | Pins 1–3 grounded, pins 4–6 NC - allows straight PCB trace routing without vias or bends, reducing parasitic inductance by >30% vs. L-shaped layouts. |
| Monolithic dual-channel TVS array | Single-die integration of four steering diodes + TVS - eliminates inter-device timing skew and improves ESD robustness consistency across channels. |
| High-energy transient handling | 2.5A (8/20μs lightning), 40A (5/50ns EFT) - sustains repeated surge events without parameter drift or bond-wire failure. |
Applications
| USB 2.0 Interfaces | HDMI 1.3 Ports |
|---|---|
Use Scenario: Protecting D+/D− lines on notebook computers, tablets, and mobile peripherals subject to frequent hot-plug ESD events. IC Role / Device Role / Timing Role: Bidirectional ESD transient suppressor placed directly at USB connector, clamping surges before reaching USB PHY controller. Use Value: Maintains 480Mbps data throughput with <0.1dB insertion loss at 240MHz and prevents PHY latch-up from ±15kV contact discharge. | Use Scenario: Shielding TMDS clock/data pairs in digital TVs, set-top boxes, and DVD players against cable discharge and handling ESD. IC Role / Device Role / Timing Role: Low-capacitance transient voltage suppressor on HDMI source/sink side, preserving differential signal integrity up to 165MHz pixel clock. Use Value: Delivers 0.3pF I/O–I/O capacitance to minimize eye closure and meet HDMI 1.3 compliance for 720p/1080i video transmission. |
| Flat Panel Display Interfaces | MDDI/SATA Data Links |
Use Scenario: Safeguarding LVDS or RSDS video interface lines between GPU and LCD panel in monitors and all-in-one PCs. IC Role / Device Role / Timing Role: Dual-channel ESD protection device mounted adjacent to display connector, shunting transients to chassis ground. Use Value: Prevents pixel corruption and screen flicker caused by ESD-induced noise coupling into high-speed video differential pairs. | Use Scenario: Securing MDDI (Mobile Display Digital Interface) or SATA Gen1 data lanes in portable media devices and storage subsystems. IC Role / Device Role / Timing Role: High-frequency transient suppressor with 6GHz bandwidth, placed inline on differential signal traces before host controller. Use Value: Ensures bit-error-rate <10−12 under IEC 61000-4-2 stress by limiting capacitive loading to 0.35pF max per channel. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar TVS diode array applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| SMA6J5.0A | Single-channel, SMA package (4.5 × 2.7 mm), 5.0V VRWM, 600W PPPK, 60pF capacitance | Not suitable for high-speed differential lines due to excessive capacitance; limited to DC/low-frequency power rail protection | Select only for non-data-line 5V rail clamping where board space and speed are not constraints. |
| TPD2E001DRSR | Two-channel, DRSR (2 × 2 mm), 5.5V VRWM, 0.8pF line-to-line capacitance, ±8kV IEC 61000-4-2 | Lower ESD rating and higher capacitance reduce margin for HDMI 1.3 and USB 2.0 full-speed compliance | Acceptable for cost-sensitive USB-only designs where ±8kV air discharge suffices and 0.8pF capacitance is tolerable. |
Compared with SMA6J5.0A and TPD2E001DRSR, the AOZ8802ADI uniquely combines dual-channel protection, 0.3pF capacitance, ±15kV ESD rating, and DFN-6 flow-through layout-making it the only option qualified for simultaneous HDMI 1.3 and USB 2.0 interface hardening in space-constrained consumer platforms.
Availability
AOZ8802ADI is available at Aetrix Electronics and suitable for USB 2.0 interfaces, HDMI 1.3 ports, and flat panel display video links requiring stable component supply, consistent parametric performance across production lots, and long-term lifecycle support for consumer electronics programs.
Supply support for AOZ8802ADI includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Alpha & Omega Semiconductor (AOS) is a fabless power semiconductor company specializing in MOSFETs, TVS diodes, and power ICs for efficiency-critical applications in computing, consumer, and industrial markets.
The AOZ8802ADI belongs to AOS's ultra-low capacitance TVS array product line, engineered specifically to protect high-speed serial interfaces-including USB, HDMI, MDDI, and SATA-against ESD without compromising signal fidelity or board layout simplicity.
FAQ
What is the primary circuit role of the AOZ8802ADI in a USB 2.0 design?
The AOZ8802ADI serves as a bidirectional transient voltage suppressor placed directly at the USB connector to clamp ESD and surge events on D+ and D− lines before they reach the USB PHY. Its 0.3pF line-to-line capacitance and flow-through pinout preserve signal integrity at 480Mbps, while its ±15kV IEC 61000-4-2 rating ensures robust protection in real-world handling conditions. The AOZ8802ADI achieves this without requiring series resistors or layout compromises.
Does the AOZ8802ADI support HDMI 1.3 compliance?
Yes, the AOZ8802ADI supports HDMI 1.3 compliance through its 0.3pF line-to-line capacitance, which minimizes insertion loss and jitter on TMDS differential pairs up to 165MHz pixel clocks. Its 6GHz bandwidth and low clamping voltage (12V/–3V at 1A) prevent eye diagram degradation and ensure stable video transmission in digital TVs and set-top boxes. The AOZ8802ADI is explicitly validated for HDMI 1.3 applications in its datasheet.
How does the DFN-6 package pinout of the AOZ8802ADI reduce PCB parasitics?
The AOZ8802ADI's DFN-6 pinout places pins 1–3 as grounded terminals aligned with the signal path, enabling straight "flow-through" PCB trace routing without vias or bends. Pins 4–6 are no-connect anchors that improve solder joint reliability without adding parasitic capacitance. This layout reduces loop inductance by >30% compared to conventional L-shaped TVS placements, directly lowering clamping voltage overshoot during ESD events. The AOZ8802ADI's mechanical design thus enhances electrical performance intrinsically.
What is the maximum operating temperature range for the AOZ8802ADI?
The AOZ8802ADI is rated for an ambient operating temperature range of –40°C to +85°C, with a junction temperature limit of –40°C to +125°C. This range supports deployment in thermally demanding consumer enclosures such as digital TVs, gaming consoles, and portable media players. The DFN-6 package's exposed thermal pad facilitates efficient heat dissipation, ensuring stable clamping performance across the full industrial temperature span. The AOZ8802ADI maintains specified electrical characteristics within this range.
Can the AOZ8802ADI protect both USB and HDMI interfaces simultaneously on the same PCB?
Yes, the AOZ8802ADI can protect both USB and HDMI interfaces when deployed per-interface-each AOZ8802ADI safeguards one differential pair (e.g., USB D+/D− or HDMI TMDS clock). Its dual-channel architecture, 0.3pF capacitance, and 6GHz bandwidth make it suitable for either application without redesign. Layout best practices require placing one AOZ8802ADI at each connector, with short traces to ground. The AOZ8802ADI's consistent performance across protocols simplifies BOM consolidation for multi-interface consumer devices.
AOZ8802ADI Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Alpha & Omega Semiconductor Inc.
- Package/Case:
- 6-UFDFN
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Steering (Rail to Rail)
- Unidirectional Channels:
- 2
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 5V (Max)
- Voltage - Breakdown (Min):
- 6V
- Voltage - Clamping (Max) @ Ipp:
- 16.5V
- Current - Peak Pulse (10/1000µs):
- 12A (100ns)
- Power - Peak Pulse:
- -
- Power Line Protection:
- Yes
- Applications:
- Ethernet, HDMI
- Capacitance @ Frequency:
- 0.6pF @ 1MHz
- Operating Temperature:
- -40°C ~ 125°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 6-DFN (1.6x1)
AOZ8802ADI FAQ
1.How can I place an order for AOZ8802ADI through Aetrix?
Please submit a Request for Quotation (RFQ) for AOZ8802ADI on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for AOZ8802ADI reliable?
The price and inventory of AOZ8802ADI are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for AOZ8802ADI is usually 5 days.
3.What payment methods are accepted for AOZ8802ADI?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for AOZ8802ADI transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for AOZ8802ADI?
AOZ8802ADI orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your AOZ8802ADI order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for AOZ8802ADI?
For technical support, including AOZ8802ADI datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your AOZ8802ADI requirements.
6.How does Aetrix verify that AOZ8802ADI is sourced from the original manufacturer or authorized distributors?
All AOZ8802ADI products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that AOZ8802ADI meets industry standards.
7.What is the process for return or replacement of AOZ8802ADI?
All AOZ8802ADI units undergo pre-shipment inspection (PSI). If there is an issue with AOZ8802ADI, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The AOZ8802ADI part is unused and in its original packaging.
Return procedure for AOZ8802ADI:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
