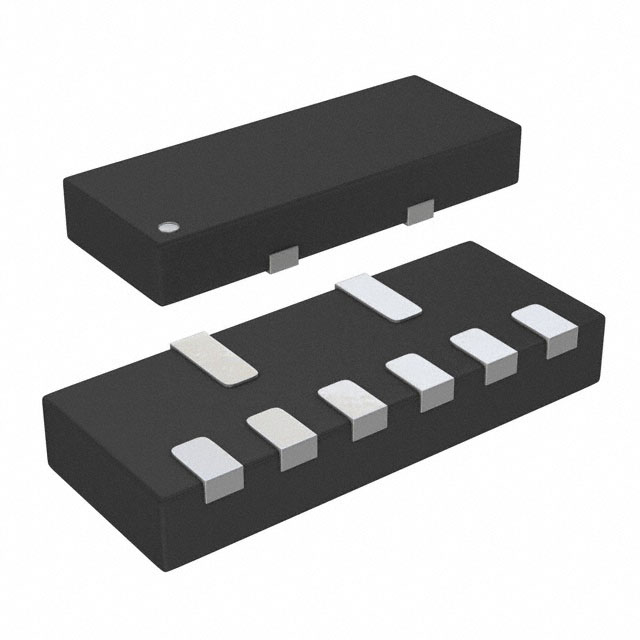

Alpha & Omega Semiconductor Inc. AOZ8806DI-05
- Part No.:
- AOZ8806DI-05
- Manufacturer:
- Alpha & Omega Semiconductor Inc.
- Category:
- TVS Diodes
- Package:
- 8-UFDFN
- Datasheet:
-
AOZ8806DI-05.pdf
- Description:
- TVS DIODE 5VWM 9VC 8-DFN
- Quantity:
- Payment:
- Shipping:
Inventory:4,905
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
AOZ8806DI-05 from Alpha & Omega Semiconductor is an ultra-low capacitance TVS diode array designed to protect six high-speed data lines (e.g., USB 3.0 differential pairs, HDMI, Thunderbolt) against ESD, EFT, and lightning surges. It features 0.3 pF line-to-line capacitance, 5.0 V working peak reverse voltage, ±15 kV IEC 61000-4-2 contact/air discharge rating, and clamps transients to ≤9.0 V at 4 A (8/20 µs).
For engineers reviewing the AOZ8806DI-05 datasheet, pinout, applications, or equivalent options, key selection criteria include low signal distortion up to 6 GHz, minimal PCB layout impact due to drop-in I/O alignment, RoHS-compliant 3.3 mm × 1.3 mm DFN-8 package, and validated performance in USB 3.0 (5 Gbps/10 Gbps) and HDMI 1.4 eye diagrams.
Technical Context
The AOZ8806DI-05 integrates twelve surge-rated steering diodes and one internal TVS in a single 8-lead DFN package, enabling bidirectional clamping of transient energy to VCC or GND. Its architecture supports simultaneous protection of three differential pairs (six I/O lines), with each path rated for 4 A (8/20 µs) peak pulse current and ≤9.0 V clamping voltage.
Designed for high-frequency integrity, it delivers <−25 dB insertion loss up to 6 GHz and maintains signal fidelity per USB 3.0 and HDMI 1.4 compliance testing. The device operates across −40 °C to +85 °C ambient, with junction temperature rated to +125 °C and storage range from −65 °C to +150 °C.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Working Peak Reverse Voltage | 5.0 V - sets maximum steady-state DC bias before conduction begins |
| Line-to-Line Capacitance | 0.3 pF - preserves signal integrity up to 6 GHz with minimal rise-time degradation |
| Clamping Voltage @ 4 A | ≤9.0 V - limits transient overvoltage seen by downstream ICs during IEC 61000-4-5 events |
| ESD Rating (IEC 61000-4-2) | ±15 kV contact/air - exceeds Level 4 immunity for robust system-level ESD robustness |
| Peak Pulse Current | 4 A (8/20 µs) - sustains lightning-surge energy without parametric shift or failure |
| Operating Temperature Range | −40 °C to +85 °C ambient - qualified for consumer and industrial endpoint applications |
| Package Dimensions | 3.3 mm × 1.3 mm × 0.55 mm DFN-8 - enables dense routing with signal traces passing underneath |
Pinout & Package
AOZ8806DI-05 uses a RoHS-compliant, halogen-free 8-lead DFN package (3.3 mm × 1.3 mm × 0.55 mm) with exposed thermal pad. Pin 1 is marked by dot; top view shows dual GND pins (1 & 2), followed by six I/O terminals (3–8) arranged for direct placement on differential signal pairs.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1, 2 | GND | Dual ground connections minimize return-path inductance for fast transient shunting |
| 3–8 | I/O (x6) | Steering diode inputs for six protected lines; symmetric layout allows straight-through routing without trace bends |
Key Features
| Feature | Design Value |
|---|---|
| Ultra-low capacitance | 0.3 pF line-to-line ensures <−25 dB S21 insertion loss up to 6 GHz, preserving USB 3.0/Thunderbolt eye opening |
| Integrated steering + TVS | Twelve discrete steering diodes plus one TVS enable bidirectional clamping to VCC or GND without external components |
| Drop-in I/O alignment | Pins 3–8 map directly to USB 3.0/SATA/HDMI differential pair routing, eliminating need for trace detours or vias |
| High-energy surge rating | 4 A (8/20 µs) IEC 61000-4-5 capability protects against induced lightning surges in connected peripherals |
| HBM ESD robustness | ±24 kV Human Body Model rating exceeds JEDEC JESD22-A114 requirements for handling safety |
Applications
| USB 3.0 Host Port Protection | HDMI 1.4 Source Interface |
|---|---|
Use Scenario: Protecting SuperSpeed TX/RX differential pairs and sideband signals (SSTX+, SSTX−, SSRX+, SSRX−, D+, D−, HPD) on notebook or desktop motherboard USB 3.0 controllers. IC Role / Device Role / Timing Role: Transient voltage suppressor array that clamps ESD/EFT pulses before they reach the USB PHY, preserving signal timing margins. Use Value: Maintains 5 Gbps/10 Gbps eye diagram compliance per USB-IF test plans with <0.3 pF loading and ≤9.0 V clamping. | Use Scenario: Shielding HDMI 1.4 TMDS clock and data channels (CLK+, CLK−, DATA0+, DATA0−, etc.) in digital TVs, set-top boxes, and video graphics cards. IC Role / Device Role / Timing Role: Low-capacitance ESD clamp placed at HDMI connector to prevent transient-induced pixel corruption or link dropouts. Use Value: Enables HDMI 1.4 eye pattern compliance with <−25 dB insertion loss at 3.75 GHz and no measurable jitter increase. |
| Thunderbolt 1/2 Cable Receptacle | MDDI Interface in Mobile Devices |
Use Scenario: Securing Thunderbolt 1/2 differential lanes (TX0+/−, RX0+/−, TX1+/−, RX1+/−) on docking stations and host controllers where cable hot-plug induces ESD. IC Role / Device Role / Timing Role: High-speed transient suppressor that routes surges to chassis ground without distorting 10 Gbps serial data timing. Use Value: Achieves ±15 kV IEC 61000-4-2 immunity while maintaining sub-100 ps edge fidelity required for Thunderbolt protocol lock. | Use Scenario: Protecting MDDI (Mobile Display Digital Interface) high-speed links between application processors and display modules in smartphones and tablets. IC Role / Device Role / Timing Role: ESD guard for MDDI forward/backward channel differential pairs operating up to 1.5 Gbps in space-constrained mobile PCBs. Use Value: Delivers 0.3 pF loading and 5.0 V working voltage compatibility with MDDI's 1.8 V signaling, preventing false resets or display artifacts. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar TVS diode array applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| SMA6J5.0A-Q | Single-channel, 5.0 V unidirectional TVS; 600 W peak power; 100 pF typical capacitance | Requires six discrete devices for full USB 3.0 protection; unsuitable for >1 GHz data rates due to high capacitance | Select only for low-speed DC power rail protection where signal integrity is not critical |
| SP3222-04UTG | Quad-channel, 5.0 V bi-directional TVS; 0.5 pF typical capacitance; 12 kV ESD rating | Protects four lines only; lacks integrated steering diodes for VCC-to-GND clamping; lower surge rating (2 A vs. 4 A) | Acceptable for cost-sensitive USB 2.0 or LVDS interfaces but insufficient for USB 3.0 10 Gbps or HDMI 1.4 compliance |
Compared with SMA6J5.0A-Q and SP3222-04UTG, the AOZ8806DI-05 uniquely combines six-line protection, 0.3 pF capacitance, 4 A surge rating, and integrated steering+TVS architecture-enabling single-device, high-fidelity safeguarding of next-generation high-speed serial interfaces without compromising PCB layout simplicity or signal integrity.
Availability
AOZ8806DI-05 is available at Aetrix Electronics and suitable for HDMI 1.4 source interfaces, USB 3.0 host ports, and Thunderbolt 1/2 receptacles requiring stable component supply, consistent lead-time visibility, and long-term lifecycle support.
Supply support for AOZ8806DI-05 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Alpha & Omega Semiconductor (AOS) is a fabless power semiconductor company specializing in MOSFETs, TVS diodes, and power ICs for efficiency-critical applications.
The AOZ8806 family targets high-speed interface protection, delivering ultra-low capacitance and integrated clamping architectures optimized for USB, HDMI, Thunderbolt, and MDDI endpoints in consumer and computing systems.
FAQ
What is the maximum clamping voltage of the AOZ8806DI-05 under IEC 61000-4-5 surge conditions?
The AOZ8806DI-05 has a maximum clamping voltage of 9.0 V when subjected to a 4 A, 8/20 µs current pulse per IEC 61000-4-5. This value is measured across each I/O line relative to GND or VCC, ensuring protected ICs experience minimal overvoltage stress during lightning-induced transients. The AOZ8806DI-05 achieves this with low dynamic impedance and integrated steering diode topology.
Does the AOZ8806DI-05 support both contact and air discharge ESD per IEC 61000-4-2 Level 4?
Yes, the AOZ8806DI-05 is rated for ±15 kV contact discharge and ±15 kV air discharge per IEC 61000-4-2 Level 4. These values are verified through standardized testing with 150 pF/330 Ω network and reflect the device's ability to absorb and divert ESD energy without degradation. The AOZ8806DI-05 maintains its 0.3 pF capacitance and 5.0 V working voltage throughout repeated ESD events.
Can the AOZ8806DI-05 be used to protect USB 3.1 Gen 2 (10 Gbps) interfaces?
Yes, the AOZ8806DI-05 is validated for USB 3.1 Gen 2 operation, as confirmed by published 10 Gbps eye diagram testing showing no measurable jitter or amplitude loss. Its 0.3 pF line-to-line capacitance and <−25 dB insertion loss up to 6 GHz ensure signal integrity is preserved. The AOZ8806DI-05's pinout aligns directly with USB 3.1 differential pair routing, enabling drop-in integration without layout redesign.
What is the thermal performance limit of the AOZ8806DI-05 in continuous operation?
The AOZ8806DI-05 has a maximum junction temperature of +125 °C and operates over an ambient range of −40 °C to +85 °C. Its DFN-8 package includes an exposed thermal pad that must be soldered to a PCB copper pour for effective heat dissipation. Under normal ESD/EFT transient conditions, self-heating is negligible; continuous DC leakage remains below 1.0 µA at 5.0 V VRWM, minimizing steady-state thermal load. The AOZ8806DI-05 does not require derating for standard endpoint use cases.
How does the AOZ8806DI-05 differ from the AOZ8806DI-03 variant?
The AOZ8806DI-05 has a 5.0 V working peak reverse voltage and 6.0 V minimum breakdown voltage, whereas the AOZ8806DI-03 is rated for 3.3 V VRWM and 3.5 V VBR. Both share identical 0.3 pF capacitance, ±15 kV ESD rating, and 8-lead DFN package. The AOZ8806DI-05 is selected for 5 V-biased interfaces like legacy USB 2.0 sideband lines or HDMI HPD, while AOZ8806DI-03 suits 3.3 V logic such as PCIe or SATA.
AOZ8806DI-05 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Alpha & Omega Semiconductor Inc.
- Package/Case:
- 8-UFDFN
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Steering (Rail to Rail)
- Unidirectional Channels:
- 6
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 5V (Max)
- Voltage - Breakdown (Min):
- 6V
- Voltage - Clamping (Max) @ Ipp:
- 9V
- Current - Peak Pulse (10/1000µs):
- 4A (8/20µs)
- Power - Peak Pulse:
- -
- Power Line Protection:
- Yes
- Applications:
- Ethernet, HDMI
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -40°C ~ 125°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-DFN (3.3x1.3)
AOZ8806DI-05 FAQ
1.How can I place an order for AOZ8806DI-05 through Aetrix?
Please submit a Request for Quotation (RFQ) for AOZ8806DI-05 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for AOZ8806DI-05 reliable?
The price and inventory of AOZ8806DI-05 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for AOZ8806DI-05 is usually 5 days.
3.What payment methods are accepted for AOZ8806DI-05?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for AOZ8806DI-05 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for AOZ8806DI-05?
AOZ8806DI-05 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your AOZ8806DI-05 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for AOZ8806DI-05?
For technical support, including AOZ8806DI-05 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your AOZ8806DI-05 requirements.
6.How does Aetrix verify that AOZ8806DI-05 is sourced from the original manufacturer or authorized distributors?
All AOZ8806DI-05 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that AOZ8806DI-05 meets industry standards.
7.What is the process for return or replacement of AOZ8806DI-05?
All AOZ8806DI-05 units undergo pre-shipment inspection (PSI). If there is an issue with AOZ8806DI-05, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The AOZ8806DI-05 part is unused and in its original packaging.
Return procedure for AOZ8806DI-05:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
