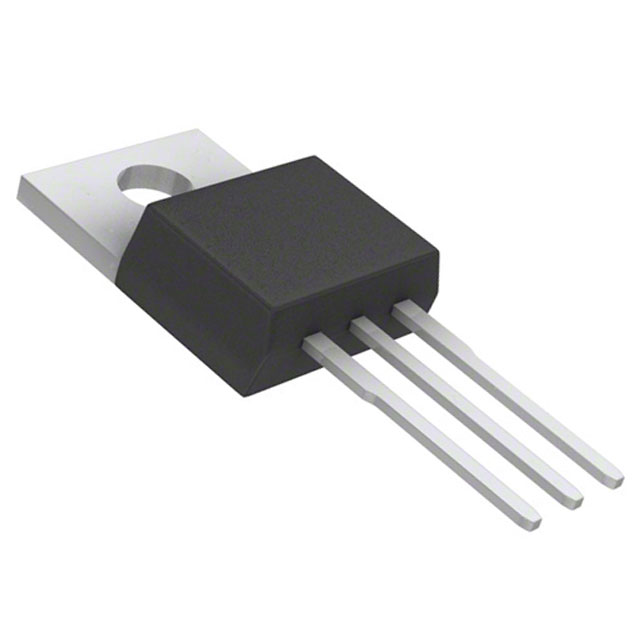

Central Semiconductor Corp CDM22010-650 SL
- Part No.:
- CDM22010-650 SL
- Manufacturer:
- Central Semiconductor Corp
- Category:
- FETs, MOSFETs
- Package:
- TO-220-3
- Description:
- MOSFET N-CH 650V 10A TO220
- Quantity:
- Payment:

- Shipping:

Inventory:464
Please send an inquiry. Send us your inquiry, and we will respond immediately.
CDM22010-650 SL Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Central Semiconductor Corp
- Series:
- -
- Package/Case:
- TO-220-3
- Packaging:
- Tube
- Product Status:
- Obsolete
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 650 V
- Current - Continuous Drain (Id) @ 25°C:
- 10A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):
- 10V
- Rds On (Max) @ Id, Vgs:
- 1Ohm @ 5A, 10V
- Vgs(th) (Max) @ Id:
- 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:
- 20 nC @ 10 V
- Vgs (Max):
- 30V
- Input Capacitance (Ciss) (Max) @ Vds:
- 1168 pF @ 25 V
- FET Feature:
- -
- Power Dissipation (Max):
- 2W (Ta), 156W (Tc)
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- TO-220-3
CDM22010-650 SL FAQ
1.How can I place an order for CDM22010-650 SL through Aetrix?
Please submit a Request for Quotation (RFQ) for CDM22010-650 SL on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for CDM22010-650 SL reliable?
The price and inventory of CDM22010-650 SL are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for CDM22010-650 SL is usually 5 days.
3.What payment methods are accepted for CDM22010-650 SL?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for CDM22010-650 SL transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for CDM22010-650 SL?
CDM22010-650 SL orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your CDM22010-650 SL order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for CDM22010-650 SL?
For technical support, including CDM22010-650 SL datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your CDM22010-650 SL requirements.
6.How does Aetrix verify that CDM22010-650 SL is sourced from the original manufacturer or authorized distributors?
All CDM22010-650 SL products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that CDM22010-650 SL meets industry standards.
7.What is the process for return or replacement of CDM22010-650 SL?
All CDM22010-650 SL units undergo pre-shipment inspection (PSI). If there is an issue with CDM22010-650 SL, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The CDM22010-650 SL part is unused and in its original packaging.
Return procedure for CDM22010-650 SL:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
