STMicroelectronics CR95HF-VMD5T

Overview

CR95HF-VMD5T from STMicroelectronics is a 13.56 MHz multi-protocol contactless transceiver IC supporting ISO/IEC 14443 A/B, ISO/IEC 15693, ISO/IEC 18092 (NFC Forum Types 1–4), and MIFARE Classic-compatible operation in Reader/Writer mode. It integrates a dedicated frame controller, highly integrated analog front end (AFE), SPI and UART host interfaces, and up to 528-byte FIFO buffer - deployed in secure access terminals, NFC-enabled point-of-sale systems, and industrial asset tagging.

For engineers reviewing the CR95HF-VMD5T datasheet, CR95HF-VMD5T pinout, CR95HF-VMD5T application, or CR95HF-VMD5T equivalent, key selection criteria include RF protocol coverage breadth, low-power Tag Detection mode, dual serial interface flexibility (SPI/UART), and verified interoperability with NFC Forum and ISO-compliant tags across proximity and vicinity ranges.

Technical Context

The CR95HF-VMD5T implements a fully integrated 13.56 MHz air interface with configurable modulation index and receiver gain registers for fine-tuned RF performance across ISO/IEC 14443 Type A, ISO/IEC 15693, and ISO/IEC 18092 protocols. Its internal frame controller handles encoding/decoding, CRC validation, and parity framing - including MIFARE Classic parity compliance when externally supported by secure host authentication logic.

Power management includes four low-consumption WFE states (Power-up, Hibernate, Sleep, Tag Detector), each with distinct wake-up sources (IRQ_IN, SPI_SS, timer, or tag presence). The device supports both crystal-based (27.12 MHz) and internal oscillator timing, with LFO active in all WFE states to maintain detection readiness while minimizing current draw.

Key Specifications

Pinout & Package

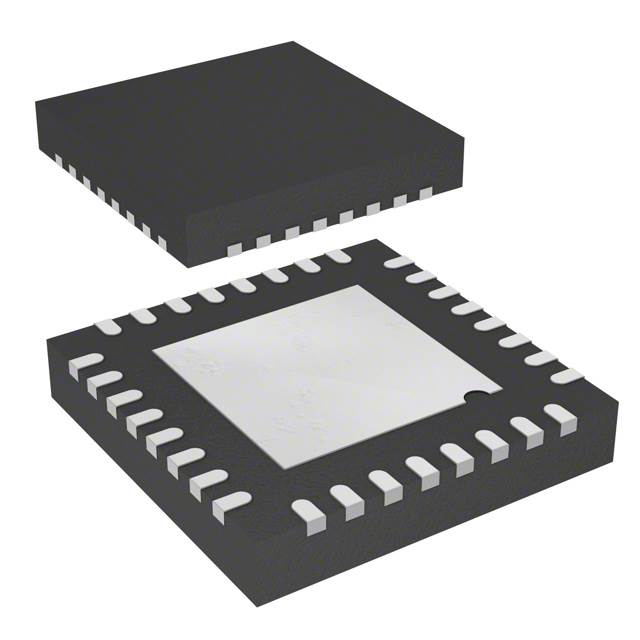

CR95HF-VMD5T uses a 32-pin VFQFPN (Very Thin Fine Pitch Quad Flat No-lead) package measuring 5 × 5 mm with 0.5 mm pitch and an exposed thermal pad requiring connection to GND for optimal thermal performance and noise immunity.

Key Features

Applications

Equivalent & Alternatives

The following parts are listed as comparable options for similar contactless transceiver applications.

Compared with PN5180 and SLI52, CR95HF-VMD5T delivers broader protocol coverage (including ISO/IEC 15693 and MIFARE Classic parity framing) and superior RF configurability (modulation index, receiver gain), making it optimal for multi-standard industrial and access control readers where host MCU handles protocol logic.

Availability

CR95HF-VMD5T is available at Aetrix Electronics and suitable for secure access control systems, NFC point-of-sale terminals, and industrial asset tagging requiring stable component supply, long-term lifecycle assurance, and RoHS-compliant manufacturing.

Supply support for CR95HF-VMD5T includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

STMicroelectronics is a global semiconductor leader headquartered in Geneva, Switzerland, designing and manufacturing microcontrollers, analog ICs, MEMS, and power management solutions for automotive, industrial, and consumer markets.

CR95HF-VMD5T belongs to the ST25 NFC/RFID product line, engineered specifically for robust, multi-protocol contactless reader applications demanding interoperability across NFC Forum, ISO, and proprietary tag ecosystems.
