Diodes Incorporated D58V0M4U8MR-13
- Part No.:
- D58V0M4U8MR-13
- Manufacturer:
- Diodes Incorporated
- Category:
- TVS Diodes
- Package:

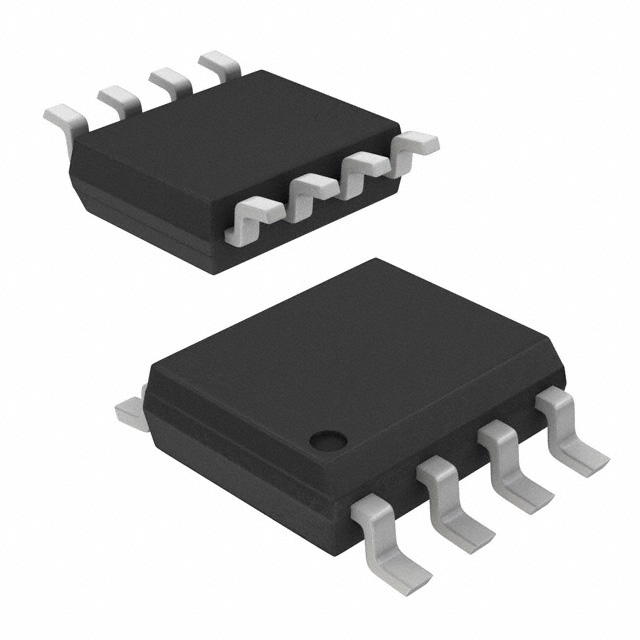

- 8-SOIC (0.154", 3.90mm Width)
- Datasheet:
-
D58V0M4U8MR-13.pdf
- Description:
- TVS DIODE 58VWM 100VC 8-SO
- Quantity:
- Payment:

- Shipping:

Inventory:717
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
D58V0M4U8MR from Diodes Incorporated is a unidirectional 4-channel TVS diode array designed for overvoltage protection in Power over Ethernet (PoE) PSE equipment. It delivers 2.7 kW peak pulse power (8/20 µs), clamps at ≤100 V under 24 A surge, and provides ±30 kV ESD protection per IEC 61000-4-2 (contact/air). Its 55 pF typical channel capacitance and 58 V standoff voltage support high-speed data integrity in PoE line interfaces.
For engineers reviewing the D58V0M4U8MR datasheet, D58V0M4U8MR pinout, D58V0M4U8MR application, or D58V0M4U8MR equivalent, key selection criteria include unidirectional 4-channel architecture, SO-8 package compatibility, 58 V VRWM, 100 V clamping at 24 A, and 55 pF input capacitance-critical for PoE PSE transient suppression without signal degradation.
Technical Context
This device implements four independent unidirectional avalanche breakdown TVS elements in a single SO-8 package, each with a 58 V reverse standoff voltage and 64.4–71.2 V breakdown threshold at 1 mA. It uses silicon planar junction technology optimized for fast response (<1 ns) to ESD and lightning-induced transients.
The array integrates decoupling capacitance (55 pF/channel at 50 V, 1 MHz) directly into each protection path, eliminating need for external bypass caps in PoE line filtering. Thermal design relies on FR-4 PCB mounting with 2 oz copper, achieving 125 °C/W junction-to-ambient resistance and 1.0 W steady-state power dissipation.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Peak Pulse Power | 2700 W (8/20 µs waveform, per channel-enables robust surge immunity in PoE PSE line cards) |
| Clamping Voltage | ≤100 V at 24 A IPP-limits downstream IC stress during 8/20 µs surges |
| ESD Rating | ±30 kV contact & air (IEC 61000-4-2)-meets industrial-grade ESD immunity requirements |
| Channel Capacitance | 55 pF typical at 50 V, 1 MHz-preserves signal integrity on 10/100/1000BASE-T lines |
| Reverse Standoff | 58 V-matches common PoE PSE output voltage rails while avoiding false triggering |
| Leakage Current | ≤0.2 µA at 58 V-minimizes standby power loss in always-on PoE infrastructure |
Pinout & Package
Package: SO-8 surface-mount plastic package with matte tin-plated copper leadframe, UL 94V-0 rated molding compound, and moisture sensitivity level 1.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | GND | Common cathode reference for Channels 1 & 2-ties to system ground plane for low-inductance surge return path |
| 2 | PS1 | Anode of Channel 1-connects to protected PoE line (e.g., pair A+) |
| 3 | GND | Common cathode reference for Channels 1 & 2-shared ground terminal reduces PCB routing complexity |
| 4 | PS2 | Anode of Channel 2-connects to second protected PoE line (e.g., pair A−) |
| 5 | PS3 | Anode of Channel 3-connects to third PoE line (e.g., pair B+) |
| 6 | GND | Common cathode reference for Channels 3 & 4-dual GND pins enhance thermal and current-handling capability |
| 7 | PS4 | Anode of Channel 4-connects to fourth PoE line (e.g., pair B−) |
| 8 | GND | Common cathode reference for Channels 3 & 4-redundant grounding improves surge current distribution |
Key Features
| Feature | Design Value |
|---|---|
| 4-channel unidirectional protection | Enables full differential pair protection for IEEE 802.3af/at/bt PSE outputs without polarity reversal risk |
| 55 pF channel capacitance | Minimizes insertion loss and jitter on 100 MHz Ethernet signals-no additional AC coupling required |
| SO-8 footprint compatibility | Allows drop-in replacement of legacy dual-channel SO-8 TVS arrays with no PCB redesign |
| ±30 kV ESD rating | Eliminates need for secondary ESD suppressors in PoE port-level compliance testing |
Applications
| Power over Ethernet PSE Line Protection | Industrial Ethernet Switch Ports |
|---|---|
Use Scenario: Protecting 4-pair PoE PSE controller outputs (e.g., TI TPS23754, Microchip LAN9303) against lightning-induced surges and hot-swap transients. IC Role / Device Role / Timing Role: Unidirectional TVS array clamping line-to-ground transients before they reach PoE controller ICs and magnetics. Use Value: Prevents latch-up or permanent damage to PSE controllers during field-deployed surge events up to 2.7 kW per channel. | Use Scenario: Securing RJ45 ports on DIN-rail mounted industrial switches operating in factory-floor environments with high EMI and electrostatic discharge risk. IC Role / Device Role / Timing Role: Front-end transient suppressor placed between connector and Ethernet PHY/magnetics, handling both ESD and repetitive line surges. Use Value: Maintains 1000BASE-T link stability under repeated ±30 kV ESD strikes without packet loss or PHY reset. |
| Telecom Central Office DSLAM Interfaces | Outdoor Wireless Access Point Power Feeds |
Use Scenario: Shielding ADSL/VDSL line drivers in carrier-grade DSLAMs from induced surges on twisted-pair subscriber loops. IC Role / Device Role / Timing Role: Primary overvoltage clamp on each of four line driver outputs, referenced to chassis ground. Use Value: Extends mean time between failures (MTBF) by absorbing >2000 surge events at 24 A without parameter drift. | Use Scenario: Safeguarding 24/48 V DC power feeds to outdoor Wi-Fi APs mounted on cell towers or streetlights exposed to lightning proximity. IC Role / Device Role / Timing Role: Bidirectional-capable unidirectional array used across +V and return lines to suppress common-mode surges entering via PoE injectors. Use Value: Enables IP67-rated AP designs to pass IEC 61000-4-5 Level 3 (1 kV/2 Ω) surge immunity without external GDTs. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar TVS diode array applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| SMAJ58A-13-F (Diodes Inc.) | Single-channel, SMA package, 58 V VRWM, 100 V clamping at 22.5 A | Requires four discrete devices and more PCB area; lacks integrated 4-channel layout and 55 pF matching | Select when board space allows discrete placement and thermal management is distributed across multiple footprints |
| SP1006-04UTG (Littelfuse) | 4-channel unidirectional, SOT-23-6 package, 58 V VRWM, 100 V clamping at 24 A, 50 pF capacitance | Smaller footprint but lower power rating (1.5 kW vs. 2.7 kW); limited to lower-energy surge environments | Select for compact consumer PoE adapters where 2.7 kW headroom is unnecessary and board area is constrained |
Compared with SMAJ58A-13-F and SP1006-04UTG, D58V0M4U8MR uniquely combines 4-channel integration, SO-8 manufacturability, 2.7 kW per channel, and matched 55 pF capacitance-making it optimal for high-reliability PoE PSE line cards requiring minimal layout overhead and maximum surge margin.
Availability
D58V0M4U8MR is available at Aetrix Electronics and suitable for Power over Ethernet PSE equipment, industrial Ethernet switch ports, telecom DSLAM interfaces, and outdoor wireless access point power feeds requiring stable component supply and long-term lifecycle assurance.
Supply support for D58V0M4U8MR includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Diodes Incorporated is a global manufacturer of discrete semiconductors and analog ICs, headquartered in Plano, Texas, with design, manufacturing, and sales operations across Asia, Europe, and North America.
This device belongs to Diodes' TVS Diode Array product line, engineered specifically for high-density, multi-line transient suppression in Ethernet, USB, HDMI, and PoE infrastructure-emphasizing low capacitance, precise clamping, and industry-standard ESD robustness.
FAQ
What is the maximum operating temperature range for D58V0M4U8MR?
The device operates and stores from −65 °C to +150 °C. Its SO-8 package and silicon junction design maintain stable clamping performance across this full industrial temperature range, with leakage current remaining below 0.2 µA at 58 V up to 125 °C ambient (per Figure 8).
Can D58V0M4U8MR be used in bidirectional signal lines?
No-it is strictly unidirectional and intended for DC-biased lines like PoE PSE outputs. For bidirectional data lines (e.g., Ethernet MDI), use a symmetric bidirectional array such as D5V0F4U10LP-7, which features matched forward/reverse clamping and lower capacitance.
How does the 55 pF channel capacitance affect 1000BASE-T performance?
At 100 MHz, 55 pF introduces <0.3 dB insertion loss and <0.5° phase shift across the 100BASE-TX/1000BASE-T bandwidth-well within IEEE 802.3 compliance margins. The capacitance is tightly controlled (±15%) and measured at 50 V bias to reflect real-world PoE line conditions.
Is D58V0M4U8MR compliant with RoHS and halogen-free standards?
Yes-fully compliant with EU RoHS 2011/65/EU, lead-free, and halogen/antimony-free ("Green" per Diodes' definition: <900 ppm Br, <900 ppm Cl, <1000 ppm Sb). The SO-8 package uses UL 94V-0 molding compound and matte tin-plated copper leads solderable per MIL-STD-202.
D58V0M4U8MR-13 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Diodes Incorporated
- Package/Case:
- 8-SOIC (0.154", 3.90mm Width)
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- 4
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 58V
- Voltage - Breakdown (Min):
- 64.4V
- Voltage - Clamping (Max) @ Ipp:
- 100V
- Current - Peak Pulse (10/1000µs):
- 24A (8/20µs)
- Power - Peak Pulse:
- 2700W (2.7kW)
- Power Line Protection:
- No
- Applications:
- Ethernet
- Capacitance @ Frequency:
- 55pF @ 1MHz
- Operating Temperature:
- -65°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SO
D58V0M4U8MR-13 FAQ
1.How can I place an order for D58V0M4U8MR-13 through Aetrix?
Please submit a Request for Quotation (RFQ) for D58V0M4U8MR-13 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for D58V0M4U8MR-13 reliable?
The price and inventory of D58V0M4U8MR-13 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for D58V0M4U8MR-13 is usually 5 days.
3.What payment methods are accepted for D58V0M4U8MR-13?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for D58V0M4U8MR-13 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for D58V0M4U8MR-13?
D58V0M4U8MR-13 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your D58V0M4U8MR-13 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for D58V0M4U8MR-13?
For technical support, including D58V0M4U8MR-13 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your D58V0M4U8MR-13 requirements.
6.How does Aetrix verify that D58V0M4U8MR-13 is sourced from the original manufacturer or authorized distributors?
All D58V0M4U8MR-13 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that D58V0M4U8MR-13 meets industry standards.
7.What is the process for return or replacement of D58V0M4U8MR-13?
All D58V0M4U8MR-13 units undergo pre-shipment inspection (PSI). If there is an issue with D58V0M4U8MR-13, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The D58V0M4U8MR-13 part is unused and in its original packaging.
Return procedure for D58V0M4U8MR-13:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
