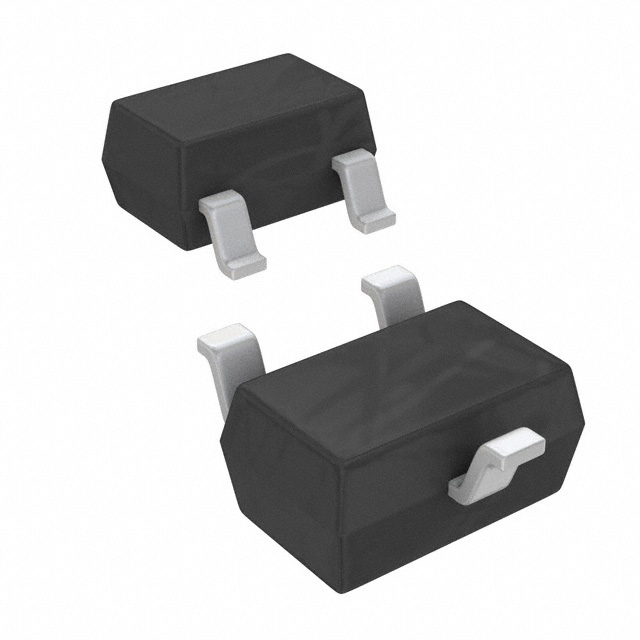

Diodes Incorporated D5V0L2B3W-7
- Part No.:
- D5V0L2B3W-7
- Manufacturer:
- Diodes Incorporated
- Category:
- TVS Diodes
- Package:
- SC-70, SOT-323
- Datasheet:
-
D5V0L2B3W-7.pdf
- Description:
- TVS DIODE 5VWM 14VC SOT323
- Quantity:
- Payment:
- Shipping:
Inventory:46,732
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
D5V0L2B3W-7 from Diodes Incorporated is a 2-channel, bidirectional TVS diode array designed for ESD protection of high-speed data lines in portable electronics. It features 5.0 V reverse working voltage, ≤20 pF channel capacitance, ±30 kV IEC 61000-4-2 contact/air ESD rating, and 84 W peak pulse power dissipation - deployed in cellular handset USB/UART interfaces to suppress transient surges without signal integrity degradation.
For engineers reviewing the D5V0L2B3W-7 datasheet, D5V0L2B3W-7 pinout, D5V0L2B3W-7 application, or D5V0L2B3W-7 equivalent, key selection criteria include low-capacitance ESD clamping for >100 Mbps serial links, SOT323 package compatibility with space-constrained PCB layouts, thermal derating behavior at +85°C ambient, and differential resistance under 0.2 Ω during 6 A transients.
Technical Context
This bi-directional TVS array uses silicon avalanche junctions optimized for fast response (<1 ns) to electrostatic discharge events while maintaining low dynamic impedance across its operating voltage range. Each channel operates symmetrically between pins 1–3 and 2–3, sharing a common cathode (Pin 3), enabling dual-line protection without polarity constraints.
The device's 15–20 pF input capacitance at 1 MHz and 0 V bias ensures minimal loading on high-frequency signal paths such as USB 2.0, HDMI DDC, or MIPI D-PHY lanes. Its clamping voltage remains ≤14.0 V at 6 A (8/20 μs), limiting downstream IC stress during surge events.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Reverse Working Voltage | 5.0 V - Maximum continuous DC voltage before leakage exceeds 100 nA; sets upper limit for protected signal swing. |
| Breakdown Voltage | 6–8 V @ 1 mA - Confirmed avalanche onset range; ensures reliable triggering above normal operating voltage. |
| Clamping Voltage | 11.5–14.0 V @ 5–6 A - Peak voltage seen by protected IC during worst-case 8/20 μs surge; defines maximum stress level. |
| Channel Capacitance | 15–20 pF @ 0 V, 1 MHz - Measured pin-to-common-cathode; enables <1% signal distortion on 480 Mbps USB 2.0 lines. |
| ESD Rating | ±30 kV air/contact - Complies with IEC 61000-4-2 Level 4; qualifies for front-panel button, SIM card, and micro-USB port protection. |
| Peak Pulse Power | 84 W @ 8/20 μs - Sustained energy absorption capability per channel; supports multiple surge events without degradation. |
| Differential Resistance | ≤0.2 Ω @ 1 A - Low dynamic impedance during conduction; minimizes voltage overshoot during fast-rising transients. |
Pinout & Package
Package: SOT323 - 3-pin surface-mount plastic package (2.10 × 1.30 × 0.90 mm), RoHS-compliant, moisture sensitivity level 1, UL 94V-0 rated.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| Pin 1 | Anode of Channel 1 | Protected line input (e.g., USB D+); conducts to common cathode during positive or negative overvoltage. |
| Pin 2 | Anode of Channel 2 | Second protected line input (e.g., USB D−); symmetrical bidirectional clamping path with Pin 1. |
| Pin 3 | Common Cathode | Shared return node tied to system ground; establishes reference for both channels' avalanche breakdown. |
Key Features
| Feature | Design Value |
|---|---|
| Bidirectional ESD Protection | Two independent symmetrical clamping paths (Pin1–Pin3 and Pin2–Pin3) eliminate need for polarity-aware layout. |
| Low Input Capacitance | 15–20 pF per channel enables use on 480 Mbps USB 2.0, 100 Mbps Ethernet PHY, and MIPI C-PHY v1.0 interfaces. |
| High ESD Withstand | ±30 kV contact/air per IEC 61000-4-2 ensures robustness against human-body-model discharges in handheld devices. |
| SOT323 Footprint | Compatible with standard 0805-sized land patterns; allows drop-in replacement in existing compact PCB designs. |
| Lead-Free & Green | Meets RoHS 2 and halogen-free requirements; matte tin plating ensures solderability per MIL-STD-202 Method 208. |
Applications
| Smartphone Front-Panel Interface | USB 2.0 Data Line Protection |
|---|---|
Use Scenario: ESD protection for tactile buttons, proximity sensors, and earpiece/microphone jack connections exposed to user handling. IC Role / Device Role / Timing Role: Bidirectional transient voltage suppressor placed directly at connector entry point before baseband processor GPIOs. Use Value: Prevents latch-up or gate oxide damage in 28 nm application processors during ±30 kV contact discharge events. | Use Scenario: Clamping induced surges on USB D+ and D− lines in mobile phone docking stations and OTG adapters. IC Role / Device Role / Timing Role: Low-capacitance TVS array ensuring <1% signal rise-time degradation on 480 Mbps differential data paths. Use Value: Maintains USB 2.0 eye diagram compliance while limiting clamped voltage to ≤14.0 V at 6 A surge current. |
| Industrial Handheld Scanner Port | MIPI D-PHY Lane Protection |
Use Scenario: Protecting RS-232/RS-485 interface pins and barcode scan trigger inputs in warehouse-grade scanners. IC Role / Device Role / Timing Role: Dual-channel ESD clamp mounted adjacent to DB9 or M12 connector, referenced to chassis ground via Pin 3. Use Value: Survives repeated 8/20 μs surges up to 6 A without parameter shift, supporting 10-year field deployment. | Use Scenario: Safeguarding camera module D-PHY clock and data lanes in automotive infotainment displays. IC Role / Device Role / Timing Role: Symmetrical TVS pair on each lane (CLK+/CLK−, DATA+/DATA−), sharing common cathode to minimize trace length. Use Value: 15–20 pF capacitance avoids jitter accumulation in 1.5 Gbps D-PHY v2.1 timing budgets. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar bidirectional low-capacitance TVS array applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| SMAJ5.0A | Unidirectional, higher capacitance (≈40 pF), DO-214AC package (larger footprint) | Requires separate anode/cathode routing; unsuitable for differential high-speed lines | Select only if board space permits larger package and signal polarity is fixed. |
| SP1001-01WTG | Single-channel, 0.3 pF capacitance, SOD-323 package, lower power rating (30 W) | Needs two devices for dual-line protection; better for >5 Gbps SerDes but less robust for 6 A surges | Prefer when protecting PCIe Gen4 or USB 3.2 Gen2x2 lanes where sub-0.5 pF is mandatory. |
Compared with SMAJ5.0A and SP1001-01WTG, D5V0L2B3W-7 uniquely balances dual-channel integration, 15–20 pF capacitance, ±30 kV ESD rating, and SOT323 size - making it optimal for cost-sensitive, space-constrained USB/MIPI interfaces requiring proven 6 A surge resilience.
Availability
D5V0L2B3W-7 is available at Aetrix Electronics and suitable for smartphone front-panel interfaces, USB 2.0 data line protection, and industrial handheld scanner ports requiring stable component supply across multi-year production cycles.
Supply support for D5V0L2B3W-7 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Diodes Incorporated is a global manufacturer of discrete semiconductors and analog ICs, headquartered in Plano, Texas, with design centers across Asia and manufacturing in China, Taiwan, and the U.S.
This device belongs to Diodes' ESD protection product line, engineered specifically for low-capacitance, high-surge-resilience transient suppression in portable and wireless communication equipment.
FAQ
What is the maximum clamping voltage at 3 A for D5V0L2B3W-7?
The clamping voltage is specified as 8.7–10.7 V at 3 A (8/20 μs pulse), measured from Pin 1 to Pin 3 or Pin 2 to Pin 3. This value reflects the peak voltage imposed on protected circuitry during a mid-level ESD event and is validated per Figure 1 waveform in DS35567 Rev. 4-2.
Can D5V0L2B3W-7 be used for unidirectional signal lines?
Yes - although inherently bidirectional, it functions reliably on unidirectional lines (e.g., UART TX/RX) by clamping both positive and negative excursions relative to the common cathode (Pin 3). No polarity reversal or external biasing is required, simplifying layout versus unidirectional TVS arrays.
Is the SOT323 package lead-free and RoHS compliant?
Yes - the SOT323 package uses matte tin finish over Alloy 42 leadframe, fully compliant with EU RoHS Directive 2011/65/EU and Diodes' "Green" policy. It contains no intentionally added lead, halogens, or antimony, and meets UL 94V-0 flammability rating.
How does channel capacitance vary with reverse bias voltage?
Per Figure 3 in DS35567, total capacitance decreases from ~20 pF at 0 V to ~10 pF at 5 V reverse bias. This voltage-dependent behavior is typical of PN-junction TVS devices and must be accounted for in high-precision analog or RF front-end designs where bias stability affects matching.
D5V0L2B3W-7 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Diodes Incorporated
- Package/Case:
- SC-70, SOT-323
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- -
- Bidirectional Channels:
- 2
- Voltage - Reverse Standoff (Typ):
- 5V (Max)
- Voltage - Breakdown (Min):
- 6V
- Voltage - Clamping (Max) @ Ipp:
- 14V
- Current - Peak Pulse (10/1000µs):
- 6A (8/20µs)
- Power - Peak Pulse:
- 84W
- Power Line Protection:
- No
- Applications:
- General Purpose
- Capacitance @ Frequency:
- 15pF @ 1MHz
- Operating Temperature:
- -65°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-323
D5V0L2B3W-7 FAQ
1.How can I place an order for D5V0L2B3W-7 through Aetrix?
Please submit a Request for Quotation (RFQ) for D5V0L2B3W-7 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for D5V0L2B3W-7 reliable?
The price and inventory of D5V0L2B3W-7 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for D5V0L2B3W-7 is usually 5 days.
3.What payment methods are accepted for D5V0L2B3W-7?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for D5V0L2B3W-7 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for D5V0L2B3W-7?
D5V0L2B3W-7 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your D5V0L2B3W-7 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for D5V0L2B3W-7?
For technical support, including D5V0L2B3W-7 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your D5V0L2B3W-7 requirements.
6.How does Aetrix verify that D5V0L2B3W-7 is sourced from the original manufacturer or authorized distributors?
All D5V0L2B3W-7 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that D5V0L2B3W-7 meets industry standards.
7.What is the process for return or replacement of D5V0L2B3W-7?
All D5V0L2B3W-7 units undergo pre-shipment inspection (PSI). If there is an issue with D5V0L2B3W-7, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The D5V0L2B3W-7 part is unused and in its original packaging.
Return procedure for D5V0L2B3W-7:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
D5V0L2B3W-7 Tags
-
