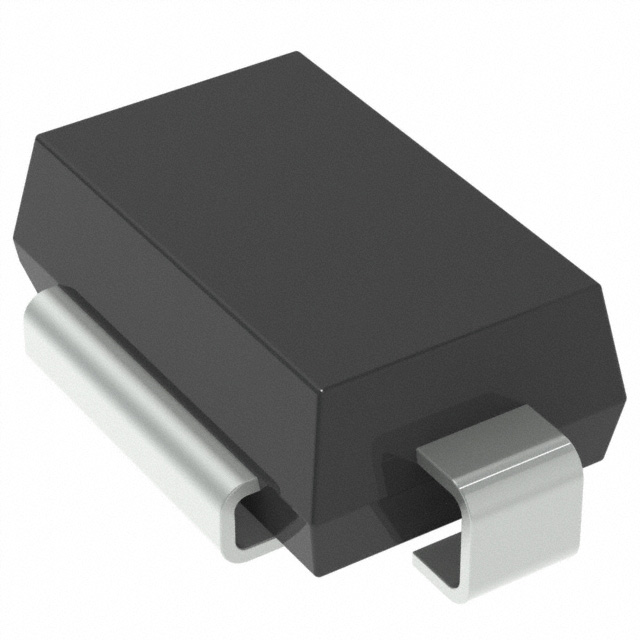

Diodes Incorporated DM5W16AQ-13
- Part No.:
- DM5W16AQ-13
- Manufacturer:
- Diodes Incorporated
- Category:
- TVS Diodes
- Package:
- DO-218AB
- Datasheet:
-
DM5W16AQ-13.pdf
- Description:
- TVS DIODE 16VWM 26VC DO218
- Quantity:
- Payment:
- Shipping:
Inventory:277
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
DM5W16AQ-13 from Diodes Incorporated is a 3600W surface-mount transient voltage suppressor (TVS) diode in DO-218 (Type E) package, designed for automotive load dump and ISO7637-2 surge protection. It features 16V reverse standoff voltage (VRWM), 26.0V max clamping voltage at 138A peak pulse current (10/1000µs), and AEC-Q101 qualification for under-hood applications.
For engineers reviewing the DM5W16AQ-13 datasheet, DM5W16AQ-13 pinout, DM5W16AQ-13 application, or DM5W16AQ-13 equivalent, this device delivers verified 3600W peak pulse power dissipation, low thermal resistance (RθJC = 1.1°C/W), and compliance with ISO16750-2 Pulse A/B and ISO7637-2 Pulse 1/2a/3a/3b surge waveforms in automotive power rail protection.
Technical Context
This unidirectional TVS diode operates with anode-connected heatsink polarity and exhibits sharp avalanche breakdown at 17.8–19.7V (VBR @ 5mA). Its low clamping ratio (VC/VRWM ≈ 1.63) ensures effective overvoltage suppression during fast transients while maintaining <10µA reverse leakage at VRWM and +25°C.
Thermally optimized for high-power surge handling, it sustains 5W steady-state power at TC = +25°C and derates linearly above that temperature, with junction-to-case thermal resistance of 1.1°C/W enabling efficient heat transfer to PCB copper or external heatsinks in engine control units and body electronics modules.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Peak Pulse Power | 3600W (10/1000µs waveform; enables single-event load dump suppression up to 3600W without failure) |
| Reverse Standoff Voltage | 16V (maximum continuous DC operating voltage before clamping begins; matches 12V automotive battery nominal systems) |
| Clamping Voltage | 26.0V @ 138A (limits downstream IC voltage to safe level during ISO16750-2 load dump events) |
| Peak Pulse Current | 138A (10/1000µs; supports robust surge immunity per ISO7637-2 Pulse 5a requirements) |
| Thermal Resistance | RθJC = 1.1°C/W (enables direct thermal coupling to PCB copper pour or heatsink for sustained power dissipation) |
| Operating Temperature | −55°C to +175°C (supports under-hood placement in engine control modules and transmission ECUs) |
| AEC-Q101 Qualified | Yes (certified for automotive-grade reliability including temperature cycling, HTRB, and surge endurance testing) |
Pinout & Package
Package: DO-218 (Type E), molded plastic, UL 94V-0 rated, 2.74g weight. Heatsink tab is electrically connected to anode; cathode marked by bar on case.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| Anode (Heatsink Tab) | Positive terminal / thermal path | Must be soldered to large copper area or external heatsink for thermal management and electrical connection to system ground or supply return |
| Cathode (Lead) | Negative terminal / surge current sink | Connected to protected line (e.g., 12V rail); conducts transient current to anode/heatsink during overvoltage events |
Key Features
| Feature | Design Value |
|---|---|
| 3600W Peak Pulse Power | Enables single-pulse suppression of severe load dump surges (ISO16750-2 Pulse 5a) without degradation |
| Low Clamping Ratio (VC/VRWM) | 1.63 ensures minimal overvoltage stress on downstream 24V-tolerant automotive ICs during transients |
| DO-218 Thermal Performance | 1.1°C/W RθJC allows >5W continuous dissipation when mounted on ≥250mm² 2oz copper with thermal vias |
| AEC-Q101 & IATF 16949 Compliance | Validated for automotive production use with PPAP documentation support and change control traceability |
| RoHS 3 & Halogen-Free | Meets EU Directive 2015/863/EU with Br+Cl <1500ppm and Sb <1000ppm for eco-compliant vehicle manufacturing |
Applications
| Engine Control Unit (ECU) Power Input | Body Control Module (BCM) Supply Rail |
|---|---|
Use Scenario: Protects microcontroller, CAN transceivers, and sensor interfaces from alternator load dump surges during battery disconnect events. IC Role / Device Role / Timing Role: Unidirectional TVS placed between 12V input and chassis ground, clamping transients within 10ns. Use Value: Limits rail voltage to ≤26V during 3600W pulses, preventing latch-up or oxide breakdown in 3.3V/5V logic supplies. |
Use Scenario: Shields LIN bus transceivers, door lock actuators, and lighting drivers from ISO7637-2 Pulse 1 (inductive switch-off) and Pulse 3b (capacitive discharge). IC Role / Device Role / Timing Role: Primary front-end surge clamp on fused 12V distribution line feeding multiple BCM sub-circuits. Use Value: Maintains <10µA leakage at 16V standby, minimizing quiescent current drain in always-on vehicle domains. |
| Transmission Control Module (TCM) | Advanced Driver Assistance Systems (ADAS) Camera Power |
Use Scenario: Safeguards solenoid drivers and position sensors against repetitive load dump events in automatic transmission hydraulic control units. IC Role / Device Role / Timing Role: High-reliability TVS mounted directly at TCM connector entry point with thermal pad to internal heatsink. Use Value: Withstands 500A IFSM (8.3ms half-sine) and −55°C to +175°C operation for extended service life in hot transmission environments. |
Use Scenario: Protects image sensor power supply and serializer ICs from ESD and conducted transients induced by nearby radar or motor actuation. IC Role / Device Role / Timing Role: Secondary-level TVS after primary fuse and LC filter, targeting fast-rising transients (<1ns rise time) near camera module PCB edge. Use Value: Achieves 26.0V clamping at 138A with <1.1°C/W thermal resistance, ensuring stable 12V rail during simultaneous ADAS subsystem activation. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar transient voltage suppression applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| SMAJ16A | Lower peak power (400W), SMA package, RθJC ≈ 50°C/W, no AEC-Q101 certification | Limited to non-automotive or low-energy surge environments (e.g., industrial I/O) | Select only if cost sensitivity outweighs automotive qualification and thermal performance requirements |
| SMCJ16A | Same DO-214AB package as SMAJ but higher 1500W rating; lacks DO-218's 1.1°C/W thermal path and AEC-Q101 validation | Suitable for commercial-grade 12V systems but not validated for automotive PPAP or temperature cycling | Use where ISO16750-2 compliance is not required and board space permits larger SMC footprint |
Compared with SMAJ16A and SMCJ16A, DM5W16AQ-13 provides 2.4× higher peak power than SMCJ16A and 9× more than SMAJ16A, with certified automotive reliability, superior thermal management, and guaranteed clamping performance across −55°C to +175°C - essential for safety-critical ECU and ADAS power rails.
Availability
DM5W16AQ-13 is available at Aetrix Electronics and suitable for automotive engine control units, body control modules, and ADAS camera power systems requiring stable component supply with full AEC-Q101 traceability and IATF 16949 manufacturing assurance.
Supply support for DM5W16AQ-13 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Diodes Incorporated is a global manufacturer of discrete semiconductors and analog ICs, specializing in high-reliability components for automotive, industrial, and computing markets with over 50 years of power management expertise.
This device belongs to Diodes' automotive-qualified TVS portfolio, engineered specifically for ISO16750-2 and ISO7637-2 compliance in harsh-environment vehicle electronics, with emphasis on thermal robustness and long-term parametric stability.
FAQ
What is the maximum clamping voltage of DM5W16AQ-13 at its rated peak pulse current?
The maximum clamping voltage (VC) is 26.0V at 138A peak pulse current using the 10/1000µs waveform, measured per JEDEC standards. This value is guaranteed across the full operating temperature range of −55°C to +175°C and ensures downstream 24V-rated ICs remain within safe operating limits during load dump events.
How does the DO-218 package improve thermal performance compared to SMA or SMC packages?
The DO-218 (Type E) package features an integrated metal heatsink tab directly bonded to the anode, achieving RθJC = 1.1°C/W - over 45× better than SMA (≈50°C/W) and ~4.5× better than SMC (≈5°C/W). This enables reliable 5W continuous dissipation when mounted on ≥250mm² 2oz copper with thermal vias, critical for under-hood automotive placement.
Is DM5W16AQ-13 suitable for bidirectional surge protection?
No - DM5W16AQ-13 is a unidirectional TVS diode with anode-connected heatsink polarity. It protects against positive-going transients only. For bidirectional protection (e.g., data lines), a separate symmetric TVS array or dual-diode configuration is required; this part must be used with correct polarity orientation relative to the protected rail.
What AEC-Q101 test conditions validate DM5W16AQ-13 for automotive use?
It passes AEC-Q101-004 (HTRB), AEC-Q101-005 (HTGB), AEC-Q101-006 (TCT), and AEC-Q101-011 (surge) tests, including 1000 cycles from −55°C to +175°C and 30-minute high-temperature reverse bias at 125°C. All testing occurs in IATF 16949-certified facilities with full PPAP documentation support for Tier 1 automotive programs.
DM5W16AQ-13 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Diodes Incorporated
- Package/Case:
- DO-218AB
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- 1
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 16V
- Voltage - Breakdown (Min):
- 17.8V
- Voltage - Clamping (Max) @ Ipp:
- 26V
- Current - Peak Pulse (10/1000µs):
- 138A
- Power - Peak Pulse:
- 3600W (3.6kW)
- Power Line Protection:
- No
- Applications:
- General Purpose
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -55°C ~ 175°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- DO-218
