onsemi ESD8111PFCT5G
- Part No.:
- ESD8111PFCT5G
- Manufacturer:
- onsemi
- Category:
- TVS Diodes
- Package:
- 2-XFBGA, WLCSP
- Datasheet:
-
ESD8111PFCT5G.pdf
- Description:
- TVS DIODE 3.3VWM 8VC 2WLCSP
- Quantity:
- Payment:
- Shipping:
Inventory:51,950
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
ESD8111PFCT5G from onsemi is an ultra-low-capacitance bidirectional ESD protection diode in WLCSP2 (0.6 mm × 0.3 mm) package, designed for I/O-to-GND protection of high-speed data lines. It delivers 0.2 pF typical junction capacitance, 3.3 V reverse working voltage, and clamps to 8.0 V at 7.1 A peak pulse current-enabling robust ESD immunity up to ±30 kV (IEC 61000−4−2 contact) in USB 3.0/3.1 and MHL 2.0 interfaces.
For engineers reviewing the ESD8111PFCT5G datasheet, pinout, applications, or equivalent options, key selection criteria include sub-0.4 pF capacitance at 1 MHz, low 2.1 V holding voltage, ±30 kV IEC contact ESD rating, and side-wall isolated WLCSP2 footprint compatibility with high-density mobile PCB layouts.
Technical Context
The ESD8111PFCT5G employs a silicon avalanche diode structure optimized for fast response (<1 ns) and minimal signal distortion on differential high-speed buses. Its bidirectional clamping architecture ensures symmetrical protection for both positive and negative ESD transients without polarity dependence.
Designed specifically for side-wall isolation in 0201-scale WLCSP2 packaging, it achieves <0.4 pF capacitance while maintaining 3.3 V VRWM and 8.6 V max breakdown voltage-meeting stringent insertion loss requirements for 5 Gbps+ serial links per S21 measurements up to 10 GHz.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Capacitance (CJ) | 0.2 pF typ @ 0 V, 1 MHz - preserves signal integrity on USB 3.1 Gen 1 (5 Gbps) channels |
| Reverse Working Voltage (VRWM) | 3.3 V - matches standard I/O supply rails in mobile SoCs and USB PHYs |
| Clamping Voltage (VC) | 8.0 V @ 7.1 A (8/20 µs) - limits transient overvoltage below IC damage thresholds |
| ESD Rating (IEC 61000−4−2) | ±30 kV contact / ±30 kV air - exceeds Level 4 immunity for handheld device interfaces |
| Dynamic Resistance (RDYN) | 0.46 Ω - enables rapid energy dissipation with minimal voltage overshoot |
| Junction Temperature Range | −55 °C to +150 °C - supports operation in automotive infotainment and industrial edge devices |
Pinout & Package

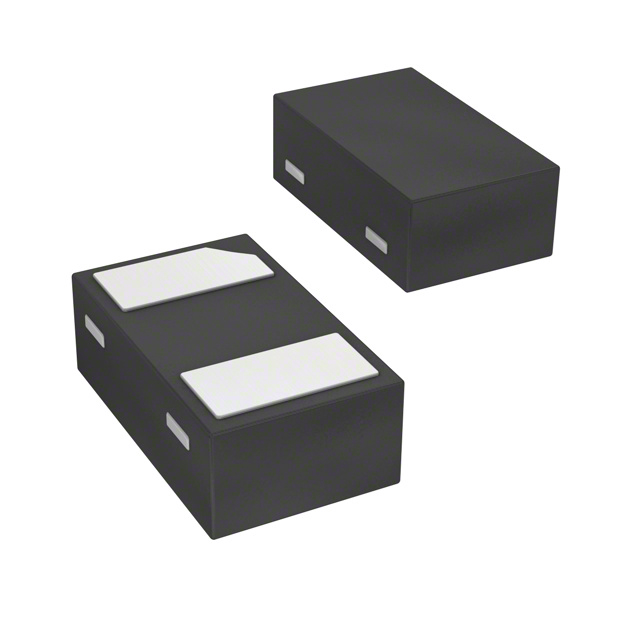

ESD8111PFCT5G uses the WLCSP2 (Case 567AV) package: 0.6 mm × 0.3 mm, 0.27 mm pitch, side-wall isolated die-attach construction. This ultra-compact footprint minimizes parasitic inductance and enables placement directly at connector entry points.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | I/O Line Anode/Cathode | Bidirectional ESD path - connects to protected high-speed data line (e.g., USB D+, D−) |
| 2 | GND | Low-inductance ground return - requires direct connection to solid ground plane via shortest possible trace |
Key Features
| Feature | Design Value |
|---|---|
| Ultra-low capacitance | 0.2 pF typ ensures <−1 dB insertion loss at 5 GHz - critical for USB 3.1 Gen 1 eye diagram compliance |
| Side-wall isolation | Eliminates leakage paths between I/O and GND terminals in WLCSP2 - improves reliability under humidity and bias stress |
| Low clamping voltage | 8.0 V at 7.1 A prevents latch-up or gate oxide damage in 3.3 V interface ICs |
| Pb-free, RoHS-compliant | Meets IPC-J-STD-020 moisture sensitivity level 1 (MSL1) - supports standard reflow profiles without baking |
Applications
| USB 3.0/3.1 Interface Protection | MHL 2.0 Video Link Protection |
|---|---|
Use Scenario: Protecting SuperSpeed USB differential pairs (D+/D−) in smartphones and tablets against user-handling ESD events. IC Role / Device Role / Timing Role: Bidirectional transient voltage suppressor placed immediately before the USB controller PHY input pins. Use Value: 0.2 pF capacitance avoids signal degradation at 5 Gbps; ±30 kV contact rating covers worst-case pocket discharge scenarios. | Use Scenario: Safeguarding Mobile High-Definition Link (MHL) TMDS channels in portable projectors and docking stations. IC Role / Device Role / Timing Role: Low-capacitance ESD clamp on each MHL data lane (CH0–CH2) and clock line to maintain 3 Gbps timing margins. Use Value: Sub-0.4 pF max capacitance ensures <0.1 UI jitter increase; 8.0 V clamping protects MHL receiver inputs rated for 3.6 V absolute max. |
| eSATA Data Line Protection | High-Speed MIPI D-PHY Protection |
Use Scenario: Shielding external SATA II/III (3 Gbps/6 Gbps) connectors on ultrabooks and NAS enclosures from cable-discharge events. IC Role / Device Role / Timing Role: I/O-to-GND ESD suppressor mounted at eSATA receptacle to limit transient coupling into host controller. Use Value: 2.1 V holding voltage prevents false triggering during 3.3 V link training; 0.46 Ω RDYN enables fast energy dump without voltage overshoot. | Use Scenario: Securing MIPI D-PHY lanes (clock and data) in camera modules and display bridges within automotive ADAS systems. IC Role / Device Role / Timing Role: Ultra-small-footprint ESD protector co-located with D-PHY transmitter outputs to meet AEC-Q200 stress requirements. Use Value: −55 °C to +150 °C operating range supports engine bay proximity; side-wall isolation prevents creepage failure under condensation. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar ESD protection applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| ESD8101FCT5G | Same family but DSN2 (01005) package; 0.2 pF capacitance; ±23 kV IEC contact rating | Larger 0.435 mm × 0.23 mm footprint; higher parasitic inductance limits use to ≤3 Gbps links | Select when board space allows larger package and ESD requirement is Level 3 (±23 kV) only |
| TPD2E007DRYR | Texas Instruments part in SOT-5X3; 0.75 pF typ; ±8 kV IEC contact; integrated 100 Ω series resistor | Higher capacitance restricts use to USB 2.0 or lower-speed interfaces; resistor adds signal attenuation | Choose only if system-level design requires built-in series termination and Level 2 ESD suffices |
Compared with ESD8111PFCT5G, ESD8101FCT5G offers identical electrical specs but less compact packaging and lower ESD rating, while TPD2E007DRYR trades capacitance and ESD performance for integrated resistive matching-making ESD8111PFCT5G optimal for 5 Gbps+ applications demanding maximum signal fidelity and highest immunity.
Availability
ESD8111PFCT5G is available at Aetrix Electronics and suitable for USB 3.1, MHL 2.0, and eSATA applications requiring stable component supply, consistent WLCSP2 packaging, and guaranteed long-term availability for high-volume consumer electronics production.
Supply support for ESD8111PFCT5G includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
onsemi (formerly ON Semiconductor) is a global semiconductor supplier delivering energy-efficient power, analog, sensor, and connectivity solutions for automotive, industrial, cloud, medical, and IoT applications.
The ESD81x1 series was developed specifically for ultra-high-speed interface protection-targeting next-generation mobile and computing platforms where sub-0.4 pF capacitance and ±30 kV ESD immunity are mandatory for USB 3.1, MHL, and PCIe Gen 3 signal integrity.
FAQ
What is the exact package type and dimensions of ESD8111PFCT5G?
ESD8111PFCT5G uses the WLCSP2 package (Case 567AV), measuring 0.6 mm × 0.3 mm with 0.27 mm pitch. It features side-wall isolation and a 2-terminal configuration. The package complies with JEDEC MO-254 standards and supports MSL1 handling per IPC-J-STD-020 without baking prior to reflow.
Does ESD8111PFCT5G support bidirectional ESD protection?
Yes, ESD8111PFCT5G provides symmetric bidirectional clamping between I/O and GND terminals. Its I-V curves (Figures 8 and 10 in the datasheet) confirm matched turn-on behavior for both polarities, enabling protection of AC-coupled differential signals like USB 3.1 without polarity constraints.
What is the maximum peak pulse current ESD8111PFCT5G can handle?
ESD8111PFCT5G is rated for 7.1 A peak pulse current under the 8/20 µs waveform condition, at which it clamps to 8.0 V. Under TLP testing, it sustains 16 A pulses with clamping voltage rising to 10 V-validating robustness against multiple ESD strikes per IEC 61000−4−2 Level 4 compliance.
How does the 0.2 pF capacitance of ESD8111PFCT5G impact USB 3.1 Gen 1 signal integrity?
The 0.2 pF typical junction capacitance of ESD8111PFCT5G introduces negligible loading on USB 3.1 Gen 1 (5 Gbps) differential pairs. Measured S21 insertion loss remains below −1 dB up to 5 GHz (Figure 4), preserving eye height and jitter margin-critical for passing USB-IF compliance testing without equalization overhead.
Is ESD8111PFCT5G compatible with lead-free reflow processes?
Yes, ESD8111PFCT5G is Pb-free, halogen-free, and RoHS-compliant. Its WLCSP2 package is qualified for standard lead-free reflow profiles (peak temperature 260 °C for 10 seconds), with MSL1 rating ensuring no moisture sensitivity concerns during assembly.
ESD8111PFCT5G Specifications
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Package/Case:
- 2-XFBGA, WLCSP
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- -
- Bidirectional Channels:
- 1
- Voltage - Reverse Standoff (Typ):
- 3.3V (Max)
- Voltage - Breakdown (Min):
- 5.5V
- Voltage - Clamping (Max) @ Ipp:
- 8V
- Current - Peak Pulse (10/1000µs):
- 7.1A (8/20µs)
- Power - Peak Pulse:
- -
- Power Line Protection:
- No
- Applications:
- USB
- Capacitance @ Frequency:
- 0.2pF @ 1MHz
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 2-WLCSP (0.6x0.3)
ESD8111PFCT5G FAQ
1.How can I place an order for ESD8111PFCT5G through Aetrix?
Please submit a Request for Quotation (RFQ) for ESD8111PFCT5G on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for ESD8111PFCT5G reliable?
The price and inventory of ESD8111PFCT5G are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for ESD8111PFCT5G is usually 5 days.
3.What payment methods are accepted for ESD8111PFCT5G?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for ESD8111PFCT5G transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for ESD8111PFCT5G?
ESD8111PFCT5G orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your ESD8111PFCT5G order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for ESD8111PFCT5G?
For technical support, including ESD8111PFCT5G datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your ESD8111PFCT5G requirements.
6.How does Aetrix verify that ESD8111PFCT5G is sourced from the original manufacturer or authorized distributors?
All ESD8111PFCT5G products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that ESD8111PFCT5G meets industry standards.
7.What is the process for return or replacement of ESD8111PFCT5G?
All ESD8111PFCT5G units undergo pre-shipment inspection (PSI). If there is an issue with ESD8111PFCT5G, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The ESD8111PFCT5G part is unused and in its original packaging.
Return procedure for ESD8111PFCT5G:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
