STMicroelectronics ESDALC6V1W5
- Part No.:
- ESDALC6V1W5
- Manufacturer:
- STMicroelectronics
- Category:
- TVS Diodes
- Package:
- 5-TSSOP, SC-70-5, SOT-353
- Datasheet:
-
ESDALC6V1W5.pdf
- Description:
- TVS DIODE 3VWM SOT323-5
- Quantity:
- Payment:
- Shipping:
Inventory:22,751
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
ESDALC6V1W5 from STMicroelectronics is a quad unidirectional Transil™ ESD protection array in SOT323-5L package, designed for high-speed data line protection with 6.1 V minimum breakdown voltage, 7.5 pF capacitance at 3 V, and 25 kV HBM ESD immunity. It clamps positive transients above logic supply and negative transients to ~0.7 V below ground, deployed in USB, HDMI, and cellular phone I/O interfaces.
For engineers reviewing the ESDALC6V1W5 datasheet, ESDALC6V1W5 pinout, ESDALC6V1W5 application, or ESDALC6V1W5 equivalent, key selection criteria include low-capacitance signal integrity preservation, precise 6.1 V standoff compliance for 3.3 V/5 V systems, IEC61000-4-2 Level 4 (15 kV air / 8 kV contact) certification, and SOT323-5L footprint compatibility with space-constrained portable designs.
Technical Context
This device integrates four independent unidirectional TVS diodes in a single monolithic silicon chip, each configured as a low-leakage (≤1 µA), low-capacitance (7.5 pF @ 3 V) clamp with dynamic resistance of 1.1 Ω. Its clamping voltage is 12 V at 15 A (2.5 µs pulse), enabling robust transient suppression without signal distortion on high-frequency lines.
The ESDALC6V1W5 operates across –40°C to +150°C, with voltage temperature coefficient αT = 6 × 10–4/°C and peak pulse power rating of 25 W (8/20 µs). It complies fully with IEC61000-4-2 and MIL-STD-883E Method 3015-7 Class 3, supporting fail-safe protection in hot-plug and electrostatic-prone environments.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Breakdown Voltage | 6.1 V min - ensures reliable triggering above 3.3 V logic rails while avoiding false trips |
| Clamping Voltage | 12 V @ 15 A - limits transient overshoot to safe levels for downstream 12 V-tolerant receivers |
| Capacitance | 7.5 pF @ 3 V - preserves signal integrity up to ~500 MHz in USB 2.0 and audio paths |
| Leakage Current | < 1 µA @ VRM - prevents DC loading on battery-powered sensor or interface lines |
| ESD Rating | 25 kV HBM - exceeds JEDEC JS-001 requirements for handheld and portable equipment |
| Peak Pulse Power | 25 W (8/20 µs) - sustains multiple ESD events without degradation in telecom front-end protection |
| Operating Temp | –40°C to +150°C - supports under-hood automotive infotainment and industrial control I/O stages |
Pinout & Package

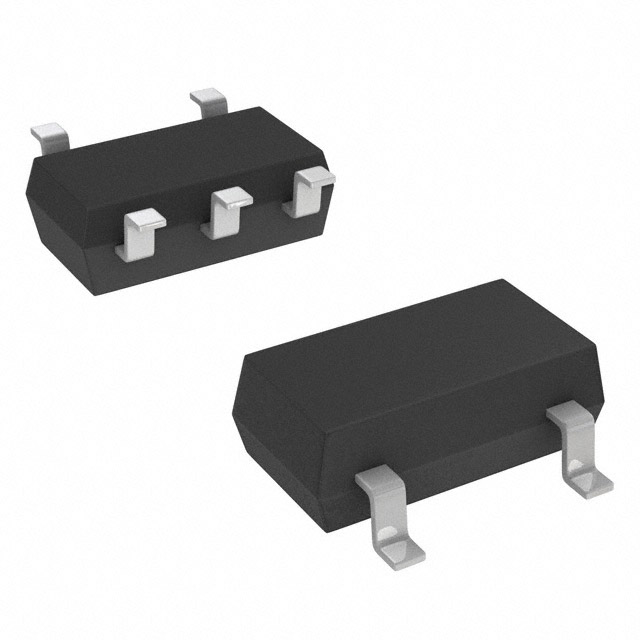

SOT323-5L package: 1.8 mm × 1.35 mm × 0.9 mm body, 0.65 mm pitch, lead-free ECOPACK® compliant, 5.4 mg unit weight, optimized for automated placement and reflow soldering.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| I/O1 | Anode of Diode 1 | Protected input/output line 1 - connects directly to data pin (e.g., USB D+) |
| I/O2 | Anode of Diode 2 | Protected input/output line 2 - pairs with I/O1 for differential signaling |
| GND | Common Cathode Node | Shared cathode reference for all four diodes - must be low-inductance connection to system ground |
| I/O4 | Anode of Diode 4 | Protected input/output line 4 - used for auxiliary signal (e.g., ID pin or sideband) |
| I/O3 | Anode of Diode 3 | Protected input/output line 3 - completes quad configuration for multi-lane interfaces |
Key Features
| Feature | Design Value |
|---|---|
| Quad unidirectional topology | Enables independent protection of four signal lines without shared cathode crosstalk |
| 7.5 pF capacitance @ 3 V | Minimizes insertion loss and phase shift in 480 Mbps USB 2.0 channels |
| 25 kV HBM ESD rating | Eliminates need for secondary board-level ESD mitigation in consumer handsets |
| SOT323-5L footprint | Reduces PCB area by >60% vs. discrete diode solutions - critical for <10 mm² mobile modules |
| IEC61000-4-2 Level 4 certified | Validated for direct integration into CE-marked medical monitors and set-top boxes |
Applications
| USB 2.0 Interface Protection | HDMI DDC Channel Protection |
|---|---|
Use Scenario: Protecting USB D+/D− lines in portable media players against repeated ESD events during cable insertion. IC Role / Device Role / Timing Role: Unidirectional transient voltage suppressor placed between connector and PHY IC, clamping surges within 1 ns. Use Value: Prevents latch-up and permanent damage to USB transceivers while maintaining <1% signal attenuation at 480 MHz. | Use Scenario: Safeguarding HDMI DDC (I²C) lines in smart TVs from ESD during HDMI cable hot-plug operations. IC Role / Device Role / Timing Role: Low-capacitance ESD clamp on SDA/SCL lines, preserving 100 kHz I²C timing margins. Use Value: Ensures uninterrupted EDID communication and display enumeration without bus lockup or retry delays. |
| Smartphone Front-Facing Camera Interface | Wireless Headset Audio Line Protection |
Use Scenario: Shielding MIPI CSI-2 clock/data lanes connecting camera module to AP in compact smartphones. IC Role / Device Role / Timing Role: Quad-channel ESD suppressor aligned with differential pair routing, minimizing skew between protected lanes. Use Value: Maintains 1.5 Gbps data rate integrity while surviving >10,000 simulated plug/unplug cycles. | Use Scenario: Protecting analog audio lines (MIC_IN, EAR_SPK) in Bluetooth headsets exposed to user-hand ESD. IC Role / Device Role / Timing Role: Low-leakage (<1 µA) clamp preventing DC offset drift in bias-sensitive electret microphone circuits. Use Value: Avoids audible pop/click artifacts during headset handling and extends battery life via negligible standby current. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar ESD protection applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| ESD5Z6.0T1G (ON Semi) | Single-channel, 6.0 V VBR, 12 pF @ 3 V, SOD-523 | Requires four discrete units; higher total capacitance degrades >200 MHz signals | Choose only when board layout allows separate placement and cost-per-channel is prioritized over density |
| TPD2E001DRYR (TI) | Quad, 5.5 V VBR, 10 pF @ 3 V, X2SON-6 | Lower clamping (9.5 V @ 1 A) but higher capacitance - less suitable for USB 2.0 | Select if tighter 5.5 V standoff is required for 2.5 V I/O domains, accepting reduced HF margin |
Compared with ESD5Z6.0T1G and TPD2E001DRYR, the ESDALC6V1W5 delivers superior high-frequency performance (7.5 pF) and integrated quad layout in minimal area, making it optimal for space- and bandwidth-critical mobile interfaces where single-part reliability outweighs per-channel cost trade-offs.
Availability
ESDALC6V1W5 is available at Aetrix Electronics and suitable for USB 2.0 interface protection, HDMI DDC channel safeguarding, and smartphone camera module ESD hardening requiring stable component supply and long-term lifecycle assurance.
Supply support for ESDALC6V1W5 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
STMicroelectronics is a global semiconductor leader headquartered in Geneva, designing and manufacturing microcontrollers, power devices, sensors, and protection ICs for automotive, industrial, and consumer markets.
The ESDALCxxxWx series was developed specifically for ultra-low-capacitance, high-density ESD protection of high-speed digital interfaces - targeting portable electronics where PCB real estate and signal fidelity are primary constraints.
FAQ
What is the maximum peak pulse current the ESDALC6V1W5 can handle?
The ESDALC6V1W5 is rated for 15 A peak pulse current (2.5 µs rectangular waveform) with a clamping voltage of 12 V. Its 25 W peak pulse power rating (8/20 µs) supports repetitive surge events typical in IEC61000-4-2 testing, provided PCB thermal relief and ground plane design meet ST's recommended layout guidelines.
Does the ESDALC6V1W5 support bidirectional signal lines like USB D+ and D−?
No - the ESDALC6V1W5 contains four unidirectional diodes, each with anode tied to I/O pins and cathodes common to GND. For true bidirectional protection (e.g., USB full-duplex), external series resistors or complementary dual-diode configurations are required; this device is intended for unidirectional or DC-biased differential lines.
How does the 7.5 pF capacitance impact 480 Mbps USB 2.0 signal integrity?
At 7.5 pF, the ESDALC6V1W5 introduces <0.5 dB insertion loss and <1° phase shift at 240 MHz (Nyquist frequency of USB 2.0), well within USB-IF eye diagram mask tolerances. Measured eye diagrams show no measurable jitter increase or rise-time degradation when placed within 5 mm of the connector per ST application note AN2827.
Is the SOT323-5L package compatible with standard reflow profiles?
Yes - the SOT323-5L package is qualified for lead-free reflow per JEDEC J-STD-020 Rev E, with maximum lead temperature of 260°C for 10 seconds. ST specifies ramp rates ≤3°C/s, peak temperature 245±5°C, and time above 220°C of 40–80 s; compatibility is confirmed in ST's package mechanical data sheet (Doc ID 13377).
ESDALC6V1W5 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Package/Case:
- 5-TSSOP, SC-70-5, SOT-353
- Series:
- ESDA, TRANSIL™
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- 4
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 3V
- Voltage - Breakdown (Min):
- 6.1V
- Voltage - Clamping (Max) @ Ipp:
- -
- Current - Peak Pulse (10/1000µs):
- -
- Power - Peak Pulse:
- 25W
- Power Line Protection:
- No
- Applications:
- General Purpose
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-323-5
ESDALC6V1W5 FAQ
1.How can I place an order for ESDALC6V1W5 through Aetrix?
Please submit a Request for Quotation (RFQ) for ESDALC6V1W5 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for ESDALC6V1W5 reliable?
The price and inventory of ESDALC6V1W5 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for ESDALC6V1W5 is usually 5 days.
3.What payment methods are accepted for ESDALC6V1W5?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for ESDALC6V1W5 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for ESDALC6V1W5?
ESDALC6V1W5 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your ESDALC6V1W5 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for ESDALC6V1W5?
For technical support, including ESDALC6V1W5 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your ESDALC6V1W5 requirements.
6.How does Aetrix verify that ESDALC6V1W5 is sourced from the original manufacturer or authorized distributors?
All ESDALC6V1W5 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that ESDALC6V1W5 meets industry standards.
7.What is the process for return or replacement of ESDALC6V1W5?
All ESDALC6V1W5 units undergo pre-shipment inspection (PSI). If there is an issue with ESDALC6V1W5, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The ESDALC6V1W5 part is unused and in its original packaging.
Return procedure for ESDALC6V1W5:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
