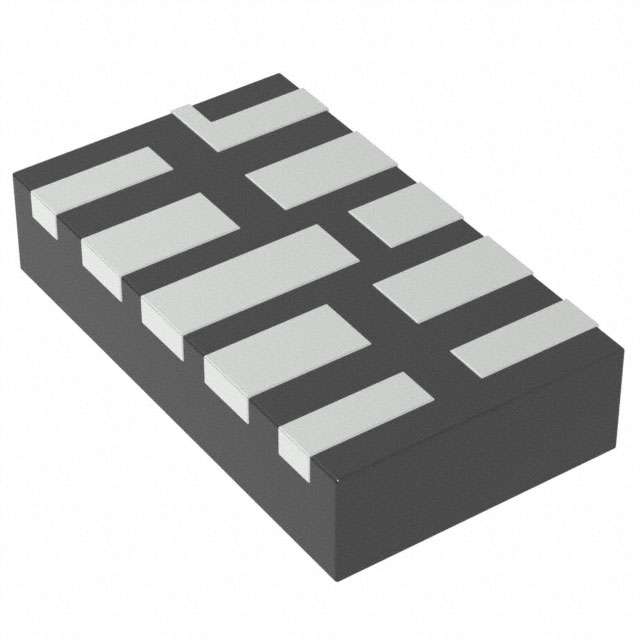

onsemi NIV2161MTTAG
- Part No.:
- NIV2161MTTAG
- Manufacturer:
- onsemi
- Category:
- TVS Diodes
- Package:
- 10-WDFN
- Datasheet:
-
NIV2161MTTAG.pdf
- Description:
- TVS DIODE 5VWM 26VC 10WDFN
- Quantity:
- Payment:
- Shipping:
Inventory:13,181
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
NIV2161MTTAG from onsemi is an automotive-grade ESD protection IC with integrated MOSFETs for short-to-battery and short-to-ground fault protection on high-speed differential data lines. It features 0.40 pF typical I/O-to-GND capacitance, ±8 kV IEC 61000-4-2 contact ESD rating, 16 V reverse working voltage, 29 V clamping voltage at 1 A, and 1.4 Ω typical RDS(on) at 4.5 V gate drive - enabling robust signal integrity in USB 2.0/3.0 and LVDS automotive interfaces.
For engineers reviewing the NIV2161MTTAG datasheet, pinout, applications, or equivalent options, this device serves as a flow-through, low-capacitance, AEC-Q101-qualified protection solution for differential pairs requiring simultaneous ESD, STB, and STG fault resilience without signal distortion.
Technical Context
The NIV2161MTTAG integrates dual-channel bidirectional ESD diodes and two matched N-channel MOSFETs per channel - one for D+ and one for D− - configured in a shared-source topology to enable active short-to-battery clamping and passive short-to-ground blocking. Its 1.0 V gate threshold voltage ensures compatibility with 3.3 V and 5 V logic-level control signals.
Operation includes three defined modes: normal linear conduction (signal pass-through), STB saturation-mode clamping (source voltage regulated near VGS − VTH), and STG reverse-diode blocking. The WDFN10 package's flow-through pinout (Pins 2/4 → host; Pins 7/9 → line; Pins 1/10 & 5/6 → sources) preserves differential impedance matching and minimizes stub length.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Capacitance (I/O to GND) | 0.40 pF typical - preserves signal integrity on >480 Mbps USB 2.0 and multi-Gbps LVDS links |
| ESD Rating | ±8 kV contact / ±15 kV air per IEC 61000-4-2 Level 4 - meets automotive manufacturing and field ESD requirements |
| Reverse Working Voltage | 16 V - withstands full vehicle battery range (9–16 V) during short-to-battery events |
| Clamping Voltage | 29 V at 1 A (8/20 µs) - limits transient overvoltage to safe levels for downstream transceivers |
| RDS(on) | 1.4 Ω typical at VGS = 4.5 V - minimizes insertion loss and signal distortion on high-speed differential paths |
| Junction Temp Range | −55 °C to +150 °C - supports under-hood and infotainment module deployment per AEC-Q101 |
| 3 dB Bandwidth | 5 GHz - enables transparent operation across USB 3.0 SuperSpeed (5 Gbps) and APIX3 channels |
Pinout & Package
Package: WDFN10 (3.5 mm × 2.0 mm, 0.675 mm pitch, exposed thermal pad, Pb-free, RoHS compliant). Flow-through layout minimizes trace discontinuities and maintains controlled differential impedance.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| Pin 1 & Pin 10 | Source 1 | Internally connected; common source node for D+ channel MOSFETs - routed to local ground or bias network |
| Pin 5 & Pin 6 | Source 2 | Internally connected; common source node for D− channel MOSFETs - enables matched differential sourcing |
| Pin 3 | VCC (5 V) | Gate bias supply input - powers internal MOSFET gates and level-shift circuitry |
| Pin 8 | GND | Power and signal reference ground - connects to exposed thermal pad for thermal dissipation |
| Pin 7 | D− (Line) | Inverted differential data line connection to cable/connector side - protected I/O path |
| Pin 9 | D+ (Line) | Non-inverted differential data line connection to cable/connector side - protected I/O path |
| Pin 2 | D+ (Host) | Host-side D+ connection - routes protected signal to USB/LVDS transceiver |
| Pin 4 | D− (Host) | Host-side D− connection - completes differential pair routing with matched length |
Key Features
| Feature | Design Value |
|---|---|
| Integrated STB/STG Protection | Active MOSFET clamping during short-to-battery; bidirectional ESD diode blocking during short-to-ground - eliminates need for external FETs or discrete TVS arrays |
| Flow-Through Pinout | Pins 2→4 and 7→9 align linearly across package - enables straight PCB trace routing with equal-length differential pairs and <0.1 mm length mismatch |
| Matched Junction Capacitance | ≤1.0% mismatch between D+ and D− paths - prevents skew-induced common-mode noise in high-speed differential signaling |
| AEC-Q101 Qualified | Validated for automotive temperature, humidity, mechanical shock, and ESD stress - approved for PPAP submission in Tier 1 BOMs |
| Low Dynamic Resistance | Sub-2 Ω RDS(on) and fast switching (td(ON) = 9 ns) - ensures minimal voltage drop and timing distortion during fault conditions |
Applications
| USB 2.0/3.0 Automotive Interface | LVDS Camera Link |
|---|---|
Use Scenario: Protecting rear-view and surround-view camera data links from ESD during assembly and STB faults during vehicle jump-starts. IC Role / Device Role / Timing Role: Bidirectional ESD clamp and active short-circuit protector placed between FAKRA connector and SoC USB/LVDS PHY. Use Value: Prevents permanent damage to image sensor interface while maintaining <0.5 dB insertion loss at 480 MHz (USB 2.0) and 1.5 GHz (LVDS). | Use Scenario: Securing high-resolution ADAS camera video streams transmitted over coaxial or twisted-pair LVDS links. IC Role / Device Role / Timing Role: Differential-line protector with matched capacitance and sub-10 ns response - placed at connector entry point before serializer/deserializer. Use Value: Enables >100 million cycles of hot-plug reliability and survives 16 V battery shorts without latch-up or parametric shift. |
| APIX 2/3 In-Vehicle Networking | Infotainment Display Interface |
Use Scenario: Safeguarding bidirectional APIX3 links between head unit and digital instrument cluster against ESD and load-dump transients. IC Role / Device Role / Timing Role: Dual-channel ESD + STB/STG protector with 5 GHz bandwidth - integrated into display module flex PCB near connector. Use Value: Maintains APIX3's 3 Gbps data rate with <0.1 UI jitter increase and passes ISO 10605 ±8 kV testing without rework. | Use Scenario: Protecting HDMI or eDP lanes in center-stack displays from user-touch ESD and battery rail coupling during ignition cycles. IC Role / Device Role / Timing Role: Low-capacitance, flow-through protector placed inline between display driver IC and board-to-board connector. Use Value: Eliminates need for separate TVS diodes and series resistors - reduces BOM count by 4 components per lane while meeting OEM EMC specs. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar ESD and short-circuit protection applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| TPD2EUSB30DRYR | 0.5 pF capacitance; no integrated STB/STG MOSFETs - relies on external circuitry for battery-short protection | Limited to ESD-only use cases; unsuitable for automotive battery fault environments without added FETs | Select only if system already implements discrete short-circuit protection and requires lower-cost ESD-only solution |
| SP3203-04UTG | 0.35 pF capacitance; single-channel; no STB/STG capability; rated for ±12 kV ESD only | Designed for consumer USB ports - lacks AEC-Q101 qualification and automotive fault tolerance | Acceptable for non-automotive industrial USB hubs where STB/STG events are not expected |
Compared with TPD2EUSB30DRYR and SP3203-04UTG, the NIV2161MTTAG uniquely integrates all three protection functions (ESD, STB, STG) in a single AEC-Q101-qualified WDFN10 package - reducing layout complexity, eliminating external FETs, and ensuring compliance with ISO 10605 and OEM-specific short-circuit test plans without design iteration.
Availability
NIV2161MTTAG is available at Aetrix Electronics and suitable for automotive infotainment, ADAS camera modules, and in-vehicle networking applications requiring stable component supply, long-term lifecycle support, and AEC-Q101-compliant sourcing.
Supply support for NIV2161MTTAG includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
onsemi is a global semiconductor supplier delivering energy-efficient, intelligent power and sensing solutions for automotive, industrial, cloud, medical, and IoT applications.
The NIV2161MTTAG belongs to onsemi's automotive-qualified ESD protection portfolio, engineered specifically for high-speed differential interfaces in vehicles - balancing ultra-low capacitance, integrated fault protection, and AEC-Q101 reliability for next-generation ADAS and infotainment systems.
FAQ
What is the primary function of the NIV2161MTTAG in automotive signal chains?
The NIV2161MTTAG provides integrated ESD, short-to-battery (STB), and short-to-ground (STG) protection for high-speed differential data lines such as USB 2.0/3.0 and LVDS in automotive applications. It uses matched MOSFETs and bidirectional ESD diodes to protect transceivers without degrading signal integrity - a capability confirmed in its datasheet's electrical characteristics and application diagrams. The NIV2161MTTAG achieves this while maintaining 0.40 pF typical I/O capacitance and operating across −55 °C to +150 °C.
Does the NIV2161MTTAG require external gate drive circuitry?
No, the NIV2161MTTAG integrates internal gate control and requires only a single 5 V supply on Pin 3 to enable both D+ and D− channel MOSFETs. Its 1.0 V typical gate threshold voltage allows direct interfacing with standard 3.3 V or 5 V logic-level signals - eliminating need for level shifters or external drivers. This behavior is verified in the "Modes of Operation" section and electrical specs table of the NIV2161MTTAG datasheet.
How does the NIV2161MTTAG handle short-to-battery events?
During a short-to-battery event, the NIV2161MTTAG actively clamps the D+ and D− lines using its internal N-channel MOSFETs operating in saturation mode - limiting source voltage to approximately VGS − VTH and restricting current via port impedance. This mechanism is documented in the "Modes of Operation" section and supported by its 16 V reverse working voltage and 30 V VDSS rating - ensuring survival during 12–16 V battery faults without latch-up or degradation.
Is the NIV2161MTTAG compatible with USB 3.0 SuperSpeed data rates?
Yes, the NIV2161MTTAG supports USB 3.0 SuperSpeed (5 Gbps) due to its 5 GHz 3 dB bandwidth, 0.40 pF I/O capacitance, and flow-through pinout that preserves differential impedance. These parameters are explicitly specified in the "Electrical Characteristics" and "Application Information" sections of the NIV2161MTTAG datasheet - confirming signal transparency up to multi-gigabit frequencies without measurable jitter or attenuation.
What package type and footprint does the NIV2161MTTAG use?
The NIV2161MTTAG uses the WDFN10 package (3.5 mm × 2.0 mm, 0.675 mm pitch, Case 511CA), with an exposed thermal pad and Pb-free/RoHS-compliant construction. Its pinout is optimized for flow-through routing: Pins 2/4 connect host-side D+/D−, Pins 7/9 connect line-side D+/D−, and Pins 1/10 & 5/6 serve as common sources - all validated in the "Pin Configuration and Schematics" diagram of the NIV2161MTTAG datasheet.
NIV2161MTTAG Specifications
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Package/Case:
- 10-WDFN
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- 2
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 5V
- Voltage - Breakdown (Min):
- 16.5V
- Voltage - Clamping (Max) @ Ipp:
- 26V
- Current - Peak Pulse (10/1000µs):
- -
- Power - Peak Pulse:
- -
- Power Line Protection:
- No
- Applications:
- HDMI
- Capacitance @ Frequency:
- 0.65pF @ 1MHz
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 10-WDFN (3.5x2)
NIV2161MTTAG FAQ
1.How can I place an order for NIV2161MTTAG through Aetrix?
Please submit a Request for Quotation (RFQ) for NIV2161MTTAG on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for NIV2161MTTAG reliable?
The price and inventory of NIV2161MTTAG are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for NIV2161MTTAG is usually 5 days.
3.What payment methods are accepted for NIV2161MTTAG?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for NIV2161MTTAG transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for NIV2161MTTAG?
NIV2161MTTAG orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your NIV2161MTTAG order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for NIV2161MTTAG?
For technical support, including NIV2161MTTAG datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your NIV2161MTTAG requirements.
6.How does Aetrix verify that NIV2161MTTAG is sourced from the original manufacturer or authorized distributors?
All NIV2161MTTAG products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that NIV2161MTTAG meets industry standards.
7.What is the process for return or replacement of NIV2161MTTAG?
All NIV2161MTTAG units undergo pre-shipment inspection (PSI). If there is an issue with NIV2161MTTAG, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The NIV2161MTTAG part is unused and in its original packaging.
Return procedure for NIV2161MTTAG:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
