onsemi NUP4114UCW1T2G
- Part No.:
- NUP4114UCW1T2G
- Manufacturer:
- onsemi
- Category:
- TVS Diodes

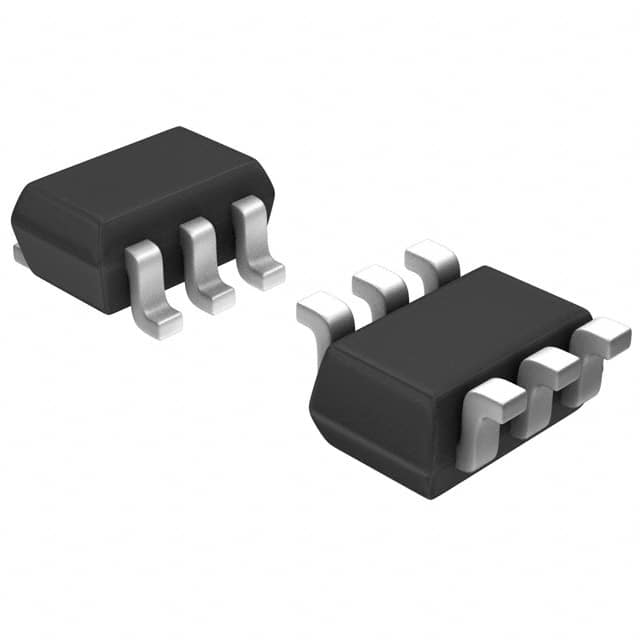

- Package:
- 6-TSSOP, SC-88, SOT-363
- Datasheet:
-
NUP4114UCW1T2G.pdf
- Description:
- TVS DIODE 5.5VWM 10V SC88/SC70-6
- Quantity:
- Payment:
- Shipping:
Inventory:41,656
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
NUP4114UCW1T2G from onsemi is a unidirectional ESD protection diode array designed for high-speed data line protection in USB 2.0, HDMI, and LVDS interfaces. It delivers 5.5 V working peak reverse voltage, <0.6 pF typical I/O-to-GND capacitance, ±8 kV IEC 61000-4-2 contact ESD rating, 8.3–10 V clamping voltage at 1–8 A pulse current, and operates across −40°C to +125°C junction temperature.
For engineers reviewing the NUP4114UCW1T2G datasheet, pinout, applications, or equivalent options, key selection criteria include ultra-low capacitance for signal integrity, low clamping voltage for IC-level transient suppression, TSOP-6 package compatibility with high-density PCB layouts, and AEC-Q101 qualification for automotive-grade reliability validation.
Technical Context
The NUP4114UCW1T2G integrates four unidirectional steering diodes and one bidirectional ESD clamp in a single TSOP-6 package. Its internal topology routes transients from I/O pins (1, 3, 4, 6) to either ground (pin 2) or VCC (pin 5), enabling flexible biasing configurations-direct VCC reference, isolated via 10 kΩ resistor, or fully floating using only the internal ESD diode.
Clamping behavior is defined by forward voltage of steering diodes plus ESD diode breakdown (VC ≈ VF + VESD), with sub-1 ns response time ensuring protection against fast-rising ESD events. The device's 0.3 pF inter-I/O capacitance and 0.6 pF I/O-to-GND capacitance minimize signal distortion in 480 Mbps USB 2.0 and multi-Gbps DVI/HDMI channels.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Working Peak Reverse Voltage | 5.5 V - sets maximum steady-state signal swing before leakage increases significantly |
| Clamping Voltage @ 1 A | 8.3–10 V - limits transient overvoltage seen by protected IC during IEC 61000-4-2 event |
| Junction Capacitance (I/O–GND) | 0.6 pF typical - preserves signal integrity on USB 2.0 and HDMI differential pairs |
| ESD Rating (IEC 61000-4-2) | ±8 kV contact / ±15 kV air - meets Level 4 immunity for end-equipment compliance |
| Response Time | <1.0 ns - ensures conduction before transient energy couples into sensitive circuitry |
| Operating Junction Temp | −40°C to +125°C - supports automotive cabin and industrial ambient environments |
| Package | TSOP-6 (3.00 × 1.50 × 0.90 mm, 0.95 mm pitch) - enables compact, high-density routing |
Pinout & Package
Package: TSOP-6 (Case 318G), 3.00 mm × 1.50 mm × 0.90 mm body, 0.95 mm lead pitch, Pb-free and RoHS compliant.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | I/O Line 1 | Protected high-speed data input/output (e.g., USB D+) |
| 2 | Ground (GND) | Low-inductance return path for ESD current; must connect directly to ground plane |
| 3 | I/O Line 2 | Protected high-speed data input/output (e.g., USB D−) |
| 4 | I/O Line 3 | Third protected line (e.g., HDMI TMDS clock or data) |
| 5 | VCC Reference | Optional positive rail connection for biasing steering diodes; reduces capacitance |
| 6 | I/O Line 4 | Fourth protected line (e.g., HDMI HPD or DDC) |
Key Features
| Feature | Design Value |
|---|---|
| Ultra-low I/O-to-GND capacitance | 0.6 pF typical - maintains impedance matching and rise/fall time integrity on 480 Mbps USB 2.0 lines |
| Low clamping voltage | 8.3 V @ 1 A - keeps protected IC within safe operating voltage margin during ESD strike |
| Multi-configuration reference support | Pins 2 (GND) and 5 (VCC) enable three layout options: direct GND clamp, VCC-biased clamp, or floating ESD reference |
| AEC-Q101 qualified | Validated for automotive applications including infotainment and ADAS display interfaces |
| IEC 61000-4-2 Level 4 certified | ±8 kV contact discharge rating - satisfies end-equipment ESD immunity requirements per EN 61000-4-2 |
Applications
| USB 2.0 High-Speed Interface | HDMI/DVI Data Lines |
|---|---|
|
Use Scenario: Protecting D+/D− differential pair in portable USB host/device ports against user-handling ESD events. IC Role / Device Role / Timing Role: ESD transient suppressor placed immediately before USB PHY IC, clamping surges before they reach receiver inputs. Use Value: 0.6 pF capacitance avoids signal degradation at 480 Mbps; 8.3 V clamping prevents PHY latch-up or oxide damage. |
Use Scenario: Shielding TMDS clock and data channels in flat-panel display interconnects from cable-discharge ESD. IC Role / Device Role / Timing Role: Unidirectional steering array routing transients from TMDS+ and TMDS− to GND or VCC rails. Use Value: Sub-1 ns response captures fast edge transients; 0.3 pF inter-I/O capacitance preserves differential skew and eye diagram integrity. |
| LVDS Signaling Paths | Automotive Infotainment Displays |
|
Use Scenario: Safeguarding LVDS serializer/deserializer links in industrial camera or medical imaging systems. IC Role / Device Role / Timing Role: Low-capacitance ESD clamp on each LVDS pair, minimizing added jitter and common-mode noise. Use Value: 0.6 pF I/O-to-GND capacitance adds <0.5 ps of deterministic jitter; −40°C to +125°C operation sustains reliability in harsh enclosures. |
Use Scenario: Protecting HDMI/DisplayPort interfaces in automotive head units and digital instrument clusters. IC Role / Device Role / Timing Role: AEC-Q101-qualified ESD array suppressing cable discharge events during vehicle service or user interaction. Use Value: TSOP-6 footprint fits tight board space behind connectors; ±8 kV contact rating exceeds ISO 10605 automotive test requirements. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar ESD protection applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| TPD4E05U06DQAR | 0.5 pF I/O–GND capacitance; 5.5 V VRWM; ±12 kV IEC 61000-4-2 contact rating; same TSOP-6 package | Higher ESD rating suits industrial equipment with frequent handling; slightly lower clamping (7.5 V @ 1 A) | Preferred where higher contact ESD margin is required without changing layout |
| SZESD9101P2T5G | Unidirectional; 5.0 V VRWM; 0.65 pF capacitance; SOT-563 package (smaller, 1.6×1.2 mm); ±8 kV contact rating | Smaller footprint ideal for space-constrained mobile designs; lower VRWM limits use to 3.3 V or lower I/O systems | Best for portable electronics with strict area budget and ≤3.3 V signaling |
Compared with NUP4114UCW1T2G, TPD4E05U06DQAR offers superior ESD robustness but identical layout compatibility, while SZESD9101P2T5G trades package size and voltage rating for miniaturization-neither is pin-compatible, requiring PCB revision if substituted.
Availability
NUP4114UCW1T2G is available at Aetrix Electronics and suitable for USB 2.0 interface protection, HDMI display interconnects, and automotive infotainment systems requiring stable component supply, long-term lifecycle support, and AEC-Q101-compliant sourcing.
Supply support for NUP4114UCW1T2G includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
onsemi (formerly ON Semiconductor) is a global semiconductor supplier specializing in energy-efficient power, analog, sensor, and logic solutions for automotive, industrial, cloud, and consumer markets.
The NUP4114UCW1T2G belongs to onsemi's ESD Protection Diode Array product line, engineered specifically to safeguard high-speed serial interfaces against electrostatic discharge while preserving signal fidelity and meeting automotive reliability standards.
FAQ
What is the primary function of the NUP4114UCW1T2G?
The NUP4114UCW1T2G is a unidirectional ESD protection diode array that safeguards high-speed data lines-including USB 2.0, HDMI, and LVDS-from electrostatic discharge events. It achieves this through low-clamping-voltage steering diodes and an integrated ESD clamp, all housed in a compact TSOP-6 package. Its design ensures minimal signal distortion while maintaining robust ±8 kV IEC 61000-4-2 contact ESD immunity. The NUP4114UCW1T2G is explicitly rated for operation from −40°C to +125°C, making it suitable for automotive and industrial deployments.
Does the NUP4114UCW1T2G support both power-line and data-line protection?
Yes, the NUP4114UCW1T2G supports dual-role protection: its four I/O pins (1, 3, 4, 6) protect high-speed data lines, while pin 5 (VCC) and pin 2 (GND) allow configuration to also clamp transients on the power rail. When pin 5 is connected to VCC, the internal steering diodes route overvoltage from data lines to the supply rail or ground-enabling coordinated protection of both signal and power domains. This capability is confirmed in the Applications Information section of the official datasheet, and the NUP4114UCW1T2G's 5.5 V VRWM and 8.3–10 V clamping range are validated for such dual-path operation.
What package type does the NUP4114UCW1T2G use, and is it RoHS compliant?
The NUP4114UCW1T2G uses the TSOP-6 surface-mount package (Case 318G), measuring 3.00 mm × 1.50 mm × 0.90 mm with 0.95 mm lead pitch. Per the official onsemi datasheet, this variant carries the "W1" suffix and is explicitly marked as Pb-free and RoHS compliant. The package drawing confirms full compliance with JEDEC MO-178 standards, and the device carries the "G" suffix in its orderable part number to denote green (halogen-free/BFR-free) construction. No exemptions or exceptions apply-the NUP4114UCW1T2G meets full RoHS Directive 2011/65/EU requirements.
Can the NUP4114UCW1T2G be used in automotive applications?
Yes, the NUP4114UCW1T2G is AEC-Q101 qualified and PPAP capable, making it suitable for automotive applications including infotainment displays, ADAS camera links, and instrument cluster interfaces. Its −40°C to +125°C operating junction temperature range, IEC 61000-4-2 Level 4 ESD rating (±8 kV contact), and TSOP-6 package with qualified thermal cycling performance meet core automotive reliability requirements. The datasheet explicitly lists "automotive and other applications requiring unique site and control change requirements" under its features, and the "SZ" prefix variants (e.g., SZNUP4114UCW1T2G) are designated for automotive-grade traceability-confirming the NUP4114UCW1T2G's suitability for production automotive systems.
How does the NUP4114UCW1T2G achieve ultra-low capacitance?
The NUP4114UCW1T2G achieves ultra-low capacitance-0.6 pF typical between I/O and GND, and 0.3 pF between I/O pins-through optimized silicon geometry and proprietary process tuning specific to onsemi's ESD diode platform. This low capacitance is measured at 0 V bias and 1 MHz, and is verified across production lots per the Electrical Characteristics table. The design minimizes junction area and parasitic coupling without compromising clamping performance, enabling use in 480 Mbps USB 2.0 and multi-Gbps HDMI links where even 0.1 pF excess capacitance would degrade signal integrity. All capacitance values for the NUP4114UCW1T2G are specified and tested per JEDEC JESD22-A114 standard.
NUP4114UCW1T2G Specifications
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Package/Case:
- 6-TSSOP, SC-88, SOT-363
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Steering (Rail to Rail)
- Unidirectional Channels:
- 4
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 5.5V (Max)
- Voltage - Breakdown (Min):
- 5.5V
- Voltage - Clamping (Max) @ Ipp:
- 10V
- Current - Peak Pulse (10/1000µs):
- 8A (8/20µs)
- Power - Peak Pulse:
- -
- Power Line Protection:
- Yes
- Applications:
- General Purpose
- Capacitance @ Frequency:
- 0.6pF @ 1MHz
- Operating Temperature:
- -40°C ~ 125°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SC-88/SC70-6/SOT-363
NUP4114UCW1T2G FAQ
1.How can I place an order for NUP4114UCW1T2G through Aetrix?
Please submit a Request for Quotation (RFQ) for NUP4114UCW1T2G on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for NUP4114UCW1T2G reliable?
The price and inventory of NUP4114UCW1T2G are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for NUP4114UCW1T2G is usually 5 days.
3.What payment methods are accepted for NUP4114UCW1T2G?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for NUP4114UCW1T2G transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for NUP4114UCW1T2G?
NUP4114UCW1T2G orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your NUP4114UCW1T2G order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for NUP4114UCW1T2G?
For technical support, including NUP4114UCW1T2G datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your NUP4114UCW1T2G requirements.
6.How does Aetrix verify that NUP4114UCW1T2G is sourced from the original manufacturer or authorized distributors?
All NUP4114UCW1T2G products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that NUP4114UCW1T2G meets industry standards.
7.What is the process for return or replacement of NUP4114UCW1T2G?
All NUP4114UCW1T2G units undergo pre-shipment inspection (PSI). If there is an issue with NUP4114UCW1T2G, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The NUP4114UCW1T2G part is unused and in its original packaging.
Return procedure for NUP4114UCW1T2G:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
