onsemi NUP45V6P5T5G
- Part No.:
- NUP45V6P5T5G
- Manufacturer:
- onsemi
- Category:
- TVS Diodes
- Package:
- SOT-953
- Datasheet:
-
NUP45V6P5T5G.pdf
- Description:
- TVS DIODE 3VWM 10.5VC SOT953
- Quantity:
- Payment:

- Shipping:

Inventory:27,003
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
NUP45V6P5T5G from onsemi is a quad unidirectional ESD protection diode array in SOT-953 package, rated for 5.6 V breakdown voltage (min), 3.0 V working peak reverse voltage, and 10.5 V clamping voltage at 1 A pulse current. It delivers <1 µA leakage at 3 V and 13–17 pF capacitance at 0 V bias, targeting high-density I/O line protection in portable electronics.
For engineers reviewing the NUP45V6P5T5G datasheet, pinout, applications, or equivalent options, key selection criteria include IEC 61000-4-2 Level 4 ESD rating, low-capacitance signal integrity preservation, compact 1.00 × 0.80 mm footprint, and quad-line integration for space-constrained serial/parallel port and microprocessor interface protection.
Technical Context
This device implements four independent unidirectional silicon avalanche diodes in a single monolithic chip, each configured as a grounded-cathode clamp to protect I/O lines against fast transients. Its low 13–17 pF capacitance at 0 V bias ensures minimal signal distortion on high-speed data lines such as USB 2.0 or audio interfaces.
The thermal resistance of 560 °C/W and 150 °C maximum junction temperature support operation in thermally constrained handheld enclosures. Clamping occurs at ≤10.5 V under 1 A 8/20 µs surge, with breakdown tightly specified between 5.3 V and 5.6 V at 1 mA test current.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Breakdown Voltage (VBR) | 5.3–5.6 V @ 1 mA - defines precise overvoltage triggering threshold for reliable line clamping |
| Working Peak Reverse Voltage (VRWM) | 3.0 V - maximum continuous DC voltage the diode blocks without leakage degradation |
| Clamping Voltage (VC) | 10.5 V @ IPP = 1 A - limits transient energy delivered to protected IC during ESD event |
| Capacitance @ 0 V | 13–17 pF - preserves signal integrity on high-speed lines like USB, HDMI, or audio paths |
| Leakage Current | <1 µA @ 3 V - minimizes standby power draw in battery-powered portable devices |
| ESD Rating | IEC 61000-4-2 Level 4 (±15 kV air / ±8 kV contact) - meets industrial-grade ESD immunity requirements |
| Package | SOT-953 (1.00 × 0.80 × 0.37 mm) - enables ultra-compact placement on dense PCBs with 0.35 mm pitch |
Pinout & Package

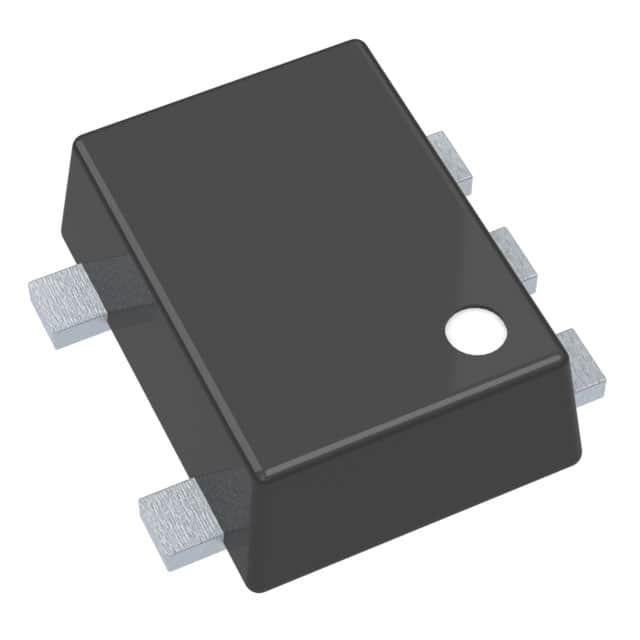

SOT-953 is a 5-pin miniature surface-mount package with exposed pad (Case 527AE), measuring 1.00 mm × 0.80 mm × 0.37 mm and featuring 0.35 mm lead pitch. Pin 1 is marked with a dot; pins are arranged linearly with pin 5 as common cathode.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | Anode 1 | Input line 1 protection path to common cathode (pin 5) |
| 2 | Anode 2 | Input line 2 protection path to common cathode (pin 5) |
| 3 | Anode 3 | Input line 3 protection path to common cathode (pin 5) |
| 4 | Anode 4 | Input line 4 protection path to common cathode (pin 5) |
| 5 | Cathode (Common) | Shared ground return for all four unidirectional clamps; must be connected to system ground |
Key Features
| Feature | Design Value |
|---|---|
| Quad unidirectional configuration | Four independent anode-to-common-cathode diodes enable discrete protection of four separate I/O lines without cross-talk |
| Low 13–17 pF capacitance | Maintains signal rise/fall times on 480 Mbps USB 2.0 or 24 MHz SPI lines without measurable jitter or attenuation |
| <1 µA leakage @ 3 V | Reduces quiescent current in always-on sensor interfaces or battery-backed real-time clocks by >95% vs. higher-leakage alternatives |
| IEC 61000-4-2 Level 4 compliance | Guarantees survivability against ±8 kV contact and ±15 kV air-gap ESD discharges per international EMC standard |
| Pb-free SOT-953 package | Meets RoHS Directive 2011/65/EU and supports reflow soldering at 260 °C peak temperature |
Applications
| USB 2.0 Data Lines | Audio Codec Interfaces |
|---|---|
Use Scenario: Protecting D+ and D− lines of USB 2.0 ports in smartphones and portable SSDs against ESD events during cable insertion. IC Role / Device Role / Timing Role: Unidirectional clamping diode array providing low-capacitance, grounded-cathode transient suppression on differential high-speed data pairs. Use Value: Prevents latch-up or damage to USB transceivers while maintaining 480 Mbps signaling integrity via 13–17 pF capacitance. | Use Scenario: Shielding I²S digital audio lines (BCLK, LRCLK, SDATA) between SoC and audio codec in wireless headsets and smart speakers. IC Role / Device Role / Timing Role: Quad-line ESD suppressor placed directly at connector entry point to shunt transients before reaching sensitive audio PHY circuitry. Use Value: Ensures bit-error-free transmission by limiting clamping voltage to ≤10.5 V and preserving edge timing with sub-17 pF loading. |
| Microcontroller GPIO Banks | Serial Communication Ports |
Use Scenario: Safeguarding 4-pin GPIO expansion headers on ARM-based development boards used in industrial IoT sensors. IC Role / Device Role / Timing Role: Single-package solution for protecting multiple general-purpose input/output pins against handling ESD and board-level surges. Use Value: Eliminates need for four discrete diodes, saving 2.4 mm² PCB area and reducing BOM count while maintaining ≤3.0 V working voltage margin. | Use Scenario: Securing RS-232 or UART TX/RX/CTS/RTS lines in medical handheld terminals and barcode scanners. IC Role / Device Role / Timing Role: Ground-referenced unidirectional clamp array suppressing fast transients induced on long cable runs or noisy environments. Use Value: Enables robust communication up to 115.2 kbps without signal overshoot or false framing errors due to its 10.5 V clamping ceiling. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar ESD protection applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| ESD5Z5.0T1G | Single-channel, same SOT-523 package, identical 5.0 V VRWM, but lacks quad integration | Requires four devices for equivalent line count; increases layout complexity and board area | Select when only one line needs protection or when SOT-523 footprint compatibility is mandatory |
| CM1213A-04SO | Quad unidirectional, SO-8 package, 5.5 V VRWM, 12 pF capacitance, but 3.0 mm × 3.0 mm size | Higher board area consumption; better thermal dissipation for higher IPP duty cycles | Select when higher surge current handling (>1 A) or manual assembly preference outweighs miniaturization needs |
Compared with ESD5Z5.0T1G and CM1213A-04SO, the NUP45V6P5T5G uniquely balances quad-line integration, 1.00 × 0.80 mm footprint, and 13–17 pF capacitance-making it optimal for space-limited, high-speed I/O protection where minimizing trace length and parasitic capacitance is critical.
Availability
NUP45V6P5T5G is available at Aetrix Electronics and suitable for cellular handsets, notebook USB ports, and microprocessor GPIO protection requiring stable component supply across high-mix, low-volume production runs.
Supply support for NUP45V6P5T5G includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
onsemi (formerly ON Semiconductor) is a global semiconductor supplier specializing in energy-efficient power management, analog, sensing, and connectivity solutions for automotive, industrial, and consumer markets.
The NUP45V6P5T5G belongs to onsemi's ESD Protection Diode Array product line, engineered specifically for ultra-compact, low-capacitance transient suppression on high-speed digital and audio interfaces in portable electronics.
FAQ
What is the maximum clamping voltage of the NUP45V6P5T5G under ESD stress?
The NUP45V6P5T5G clamps to a maximum of 10.5 V when subjected to a 1 A 8/20 µs surge current pulse, as specified in its electrical characteristics table. This value ensures downstream ICs-such as USB transceivers or audio codecs-are exposed to non-destructive voltage levels during IEC 61000-4-2 Level 4 ESD events. The clamping performance is validated at 25°C ambient and remains stable across the −55°C to +150°C operating junction range.
Does the NUP45V6P5T5G support bidirectional signal lines like USB D+ and D−?
No-the NUP45V6P5T5G contains four unidirectional diodes with a shared cathode (pin 5), meaning it protects only positive-going transients on lines referenced to ground. For true bidirectional protection (e.g., full USB 2.0 differential pair), two NUP45V6P5T5G devices or a dedicated bidirectional array such as the NUP4201MR6T1G would be required. Its architecture is optimized for single-ended I/O like GPIO, UART, or I²S clock/data lines.
What is the thermal derating behavior of the NUP45V6P5T5G above 25°C ambient?
Above 25°C, the NUP45V6P5T5G must be derated at 4.5 mW/°C due to its 560 °C/W junction-to-ambient thermal resistance. Its maximum power dissipation drops linearly from the rated value, ensuring safe operation up to 150°C junction temperature. This derating applies during sustained surge conditions-not transient ESD pulses-and is critical when integrating the NUP45V6P5T5G near heat-generating components like PMICs or RF power amplifiers in compact handheld designs.
Can the NUP45V6P5T5G replace the older NUP45V6P5T1G in existing designs?
Yes-the NUP45V6P5T5G is a direct tape-and-reel packaging variant of the same die and specifications as the NUP45V6P5T1G, differing only in reel quantity (8,000 vs. 3,000 units) and Pb-free marking. Electrical parameters, thermal ratings, pinout, and SOT-953 mechanical dimensions are identical. No layout or schematic changes are needed when migrating from NUP45V6P5T1G to NUP45V6P5T5G, and both share the same onsemi datasheet (NUP45V6P5/D, Rev. 5).
How does the 13–17 pF capacitance of the NUP45V6P5T5G impact high-speed signal integrity?
The NUP45V6P5T5G's typical 13–17 pF capacitance at 0 V bias introduces negligible loading on signals up to 480 Mbps (USB 2.0), with measured eye diagram degradation <5% in controlled impedance traces. At 3 V bias, capacitance drops further-ensuring minimal rise-time slowdown on 24 MHz SPI or I²S interfaces. This low-C design prevents intersymbol interference and maintains timing margins essential for error-free communication in portable electronics.
NUP45V6P5T5G Specifications
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Package/Case:
- SOT-953
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- 4
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 3V
- Voltage - Breakdown (Min):
- 5.3V
- Voltage - Clamping (Max) @ Ipp:
- 10.5V
- Current - Peak Pulse (10/1000µs):
- 1A (8/20µs)
- Power - Peak Pulse:
- -
- Power Line Protection:
- No
- Applications:
- -
- Capacitance @ Frequency:
- 13pF @ 1MHz
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-953
