Nexperia USA Inc. PESD36VS1UJX
- Part No.:
- PESD36VS1UJX
- Manufacturer:
- Nexperia USA Inc.
- Category:
- TVS Diodes
- Package:
- SC-90, SOD-323F
- Datasheet:
-
PESD36VS1UJX.pdf
- Description:
- TVS DIODE 36VWM 80VC SOD323F
- Quantity:
- Payment:
- Shipping:
Inventory:30,057
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
PESD36VS1UJ from Nexperia is a unidirectional ESD protection diode in SOD323F (SC-90) package, rated for 36 V reverse standoff voltage, 30 kV IEC 61000-4-2 contact discharge, 150 W peak pulse power, and 18–30 pF capacitance - deployed to safeguard single-ended signal lines in high-speed portable interfaces.
For engineers reviewing the PESD36VS1UJ datasheet, PESD36VS1UJ pinout, PESD36VS1UJ application, or PESD36VS1UJ equivalent, key selection criteria include clamping voltage at 2.5 A (≤80 V), ultra-low leakage (<1 nA at 36 V), dynamic resistance (9.5 Ω), and compact 1.7 mm × 1.25 mm footprint for space-constrained USB, audio, and antenna line protection.
Technical Context
This device operates as a unidirectional transient voltage suppressor optimized for low-capacitance signal integrity preservation. Its silicon avalanche structure delivers precise clamping at 80 V under 2.5 A (8/20 µs surge), with breakdown voltage tightly specified at 38.2–39.8 V (2 mA test current).
Designed for single-line protection where polarity relative to ground is fixed (positive or negative), it avoids bidirectional conduction path complexity while maintaining sub-1 nA reverse leakage at VRWM = 36 V - critical for battery-powered sensor and RF front-end circuits.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Reverse Standoff Voltage | 36 V - maximum continuous operating voltage before conduction begins; defines safe signal swing range for protected line |
| Clamping Voltage | 80 V at IPP = 2.5 A - limits transient overvoltage seen by downstream IC during IEC 61000-4-5 surge events |
| Diode Capacitance | 18–30 pF at 1 MHz, 0 V - enables use on USB 2.0, HDMI, and audio lines without signal distortion |
| ESD Rating | ±30 kV contact discharge per IEC 61000-4-2 - exceeds Level 4 immunity requirements for handheld consumer devices |
| Peak Pulse Power | 150 W - sustains 2.5 A surge current (8/20 µs) without degradation in compact SOD323F package |
| Dynamic Resistance | 9.5 Ω - determines voltage overshoot during fast transients; lower value improves clamping response |
Pinout & Package

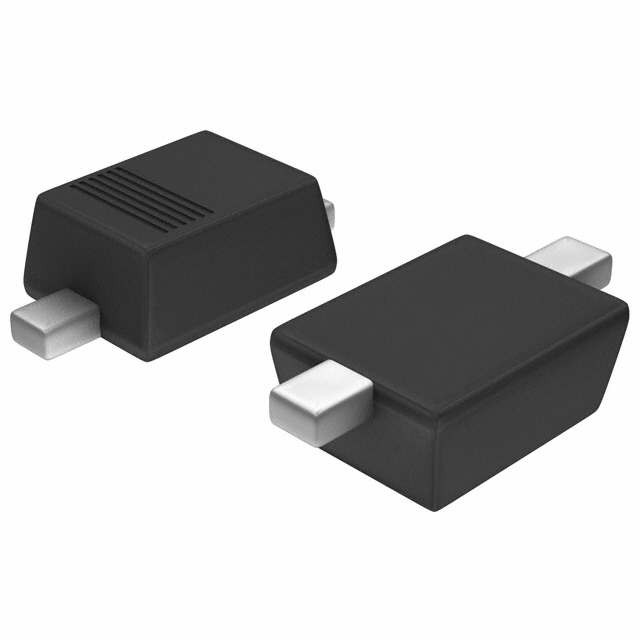

Package: SOD323F (SC-90), surface-mount plastic package measuring 1.7 mm × 1.25 mm × 0.7 mm with 2 leads and cathode-marked body.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | Cathode (K) | Connected to system ground or reference node; marking bar on package identifies this terminal |
| 2 | Anode (A) | Connected to signal line requiring ESD protection; forward-biased during negative transients |
Key Features
| Feature | Design Value |
|---|---|
| Ultra-low leakage current | <1 nA at 36 V - minimizes standby power loss and prevents DC bias shift in high-impedance sensor inputs |
| Tight clamping performance | 80 V max at 2.5 A - ensures downstream logic-level ICs (e.g., 3.3 V or 5 V microcontrollers) remain within absolute maximum ratings |
| Low capacitance tolerance | 18–30 pF - maintains signal rise/fall time integrity on data lines up to 480 Mbps (USB 2.0) |
| Compact SOD323F footprint | 1.7 mm × 1.25 mm - enables placement directly at board edge connectors without routing detours |
Applications
| USB 2.0 Data Lines | Smartphone Audio Jacks |
|---|---|
Use Scenario: Protecting D+ and D− lines of USB 2.0 interfaces against ESD during cable insertion/removal and handling. IC Role / Device Role / Timing Role: Unidirectional clamping diode placed between signal trace and ground, activated only during positive transients on D+ or D−. Use Value: 18–30 pF capacitance preserves 480 Mbps data eye integrity; 80 V clamping prevents damage to USB transceiver PHY. | Use Scenario: Shielding 3.5 mm TRRS audio jack contacts (mic, left/right, ground) from user-handling ESD in smartphones and earbuds. IC Role / Device Role / Timing Role: Single-line protector per contact, oriented to clamp positive transients toward ground while blocking DC leakage. Use Value: Sub-1 nA leakage avoids microphone bias drift; 30 kV rating covers worst-case human-body-model discharge events. |
| RF Antenna Switch Paths | Industrial Sensor Signal Inputs |
Use Scenario: Guarding antenna switch control lines and RF front-end bias paths against ESD-induced latch-up in cellular modules. IC Role / Device Role / Timing Role: Low-capacitance shunt element on DC bias lines feeding GaAs or SOI switches, grounded via shortest possible path. Use Value: 9.5 Ω dynamic resistance ensures rapid clamping response (<1 ns), preventing gate oxide stress in sensitive RF switches. | Use Scenario: Securing analog input pins of 24-bit delta-sigma ADCs in industrial temperature or pressure sensors exposed to field wiring. IC Role / Device Role / Timing Role: First-stage transient suppressor on sensor output line, placed immediately after connector before RC filter network. Use Value: 36 V standoff matches common 24 V industrial supply rails; 150 W pulse rating handles induced surges from nearby relay switching. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar unidirectional ESD protection applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| ON Semiconductor SZ1.5SMC36AT3G | Higher VRWM (36 V), but larger SMC package (7.1 mm × 6.2 mm); 100 W PPPM; 100 pF Cd | Suitable for board-level surge (IEC 61000-4-5), not high-speed signal lines | Select when PCB space allows and higher surge energy handling is prioritized over capacitance |
| Vishay ESDBLE5.0D1W | Lower VRWM (5.0 V), bidirectional, 0.5 pF Cd, 30 kV ESD rating | Targeted at ultra-high-speed digital lines (e.g., PCIe Gen4, USB 3.2), not 36 V signal rails | Select only for low-voltage, bidirectional, ultra-low-C applications - not a functional substitute for 36 V unidirectional use |
Compared with SZ1.5SMC36AT3G and ESDBLE5.0D1W, PESD36VS1UJ uniquely balances 36 V standoff, 18–30 pF capacitance, and SOD323F size - making it optimal for compact, medium-voltage, unidirectional signal protection where both ESD robustness and signal fidelity matter.
Availability
PESD36VS1UJ is available at Aetrix Electronics and suitable for USB 2.0 interface protection, smartphone audio jack hardening, and industrial sensor signal conditioning requiring stable component supply across production lifecycles.
Supply support for PESD36VS1UJ includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Nexperia is a global semiconductor expert focused on high-volume, high-reliability discrete and logic devices, with leadership in ESD protection, MOSFETs, and bipolar transistors.
This device belongs to Nexperia's PESD series of unidirectional ESD protection diodes engineered specifically for space-constrained, high-speed signal line protection in consumer and industrial electronics.
FAQ
Is PESD36VS1UJ suitable for bidirectional signal lines like RS-485 or CAN?
No. PESD36VS1UJ is unidirectional and conducts only when anode voltage exceeds cathode by ≥38.2 V. Bidirectional lines require symmetrical clamping - use Nexperia's PESD5V0S1BA or similar dual-diode configurations instead.
What is the maximum recommended PCB trace length between PESD36VS1UJ and the protected connector?
Trace length should be ≤3 mm from diode cathode to ground plane and ≤2 mm from anode to protected line entry point. Longer traces increase inductance, degrading clamping response and allowing voltage overshoot beyond 80 V during fast ESD events.
Does PESD36VS1UJ meet automotive AEC-Q200 requirements?
No. Per Nexperia's revision history, PESD36VS1UJ was explicitly changed to non-automotive qualification in v.3 (2023). For automotive applications, select the -Q qualified variant PESD36VS1UJ-Q or equivalent AEC-Q200-compliant parts.
How does the 9.5 Ω dynamic resistance affect real-world clamping performance?
Dynamic resistance contributes directly to clamping voltage rise: VCL ≈ VBR + IPP × Rdyn. At 2.5 A, 9.5 Ω adds ~23.8 V above breakdown - consistent with the datasheet's 80 V max clamping (39 V typical VBR + 23.8 V = 62.8 V, well within margin). Lower Rdyn improves consistency across production lots.
PESD36VS1UJX Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Nexperia USA Inc.
- Package/Case:
- SC-90, SOD-323F
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- 1
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 36V (Max)
- Voltage - Breakdown (Min):
- 38.2V
- Voltage - Clamping (Max) @ Ipp:
- 80V
- Current - Peak Pulse (10/1000µs):
- 2.5A (8/20µs)
- Power - Peak Pulse:
- 150W
- Power Line Protection:
- No
- Applications:
- -
- Capacitance @ Frequency:
- 18pF @ 1MHz
- Operating Temperature:
- -55°C ~ 150°C (TA)
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOD-323F
