NXP Semiconductors PRTR5V0U1T,215
- Part No.:
- PRTR5V0U1T,215
- Manufacturer:
- NXP Semiconductors
- Category:
- TVS Diodes
- Package:
- TO-236-3, SC-59, SOT-23-3
- Datasheet:
-
PRTR5V0U1T,215.pdf
- Description:
- TVS DIODE 5.5VWM SOT23
- Quantity:
- Payment:

- Shipping:

Inventory:8,746
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
PRTR5V0U1T from Nexperia is an ultra-low-capacitance (1 pF), single-channel rail-to-rail ESD protection diode in SOT23 package, designed to safeguard high-speed data lines-including USB 2.0 and HDMI interfaces-against IEC 61000-4-2 level 4 ESD transients (±8 kV contact). It features a reverse standoff voltage of 5.5 V, clamping voltage optimized by an integrated auxiliary ESD diode, and operates across −40 °C to +85 °C ambient.
For engineers reviewing the PRTR5V0U1T datasheet, PRTR5V0U1T pinout, PRTR5V0U1T application, or PRTR5V0U1T equivalent, this device is selected for signal integrity-critical ESD protection where sub-1.5 pF capacitance, low reverse leakage (<100 nA at 3 V), and supply-independent clamping are mandatory design requirements.
Technical Context
The PRTR5V0U1T implements a dual-diode rail-to-rail architecture with one I/O-to-VCC diode and one I/O-to-GND diode, plus an additional dedicated ESD diode between VCC and GND to prevent supply-line charging during transients. This ensures functional protection even when VCC is unpowered or floating.
Its 1 pF I/O-to-ground capacitance is measured at 1 MHz and 0 V bias, enabling minimal signal distortion on 480 Mbps USB 2.0 differential pairs and HDMI TMDS channels. Clamping performance is validated per IEC 61000-4-2 with <10 ns response and sub-12 V peak clamped voltage under ±1 kV ESD pulses.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| I/O-to-GND capacitance | 1 pF typical (max 1.5 pF) - preserves signal integrity on >480 Mbps data lines without added jitter or rise-time degradation |
| Reverse standoff voltage (VRWM) | 5.5 V - sets minimum operating voltage margin above 5 V logic rails while avoiding false triggering |
| ESD rating (IEC 61000-4-2) | ±8 kV contact discharge - meets industrial and consumer end-equipment immunity requirements |
| Clamping voltage (IPP = 1 A) | <12 V (typical) - limits transient overvoltage to safe levels for downstream 5 V tolerant receivers |
| Reverse leakage current | <100 nA at VR = 3 V - prevents DC loading of high-impedance signal paths |
| Operating temperature range | −40 °C to +85 °C - supports deployment in automotive infotainment and industrial edge devices |
| VCC-to-GND capacitance | 16 pF - negligible impact on power rail decoupling when placed near connectors |
Pinout & Package

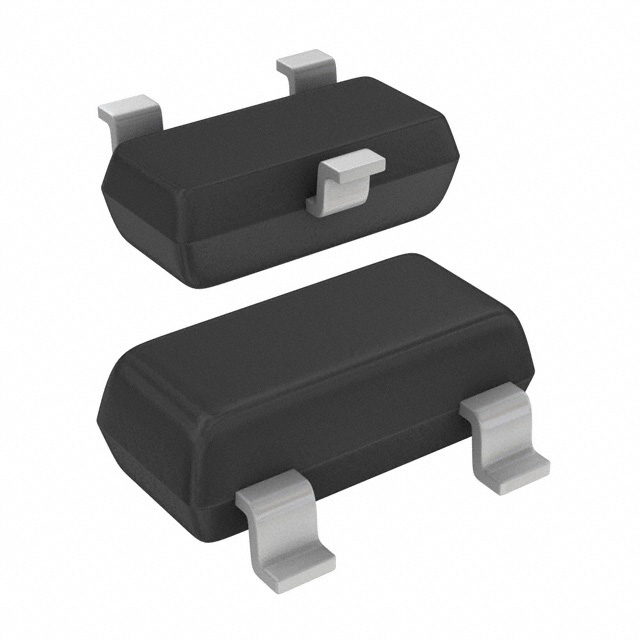

PRTR5V0U1T is housed in a standard SOT23 (TO-236AB) plastic surface-mount package measuring 2.9 mm × 1.3 mm × 1.0 mm, compatible with automated pick-and-place and reflow soldering per JEDEC J-STD-020.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | I/O | Protected signal line terminal - bidirectional rail-to-rail ESD path to both VCC and GND |
| 2 | VCC | Supply reference pin - connects to system VCC to enable active clamping and hosts auxiliary ESD diode anode |
| 3 | GND | System ground reference - completes low-inductance return path for ESD current and anchors auxiliary diode cathode |
Key Features
| Feature | Design Value |
|---|---|
| Rail-to-rail protection topology | Enables full-swing signal transmission (e.g., USB D+/D−, HDMI TMDS) without clipping or DC offset shift |
| Integrated VCC–GND ESD diode | Prevents supply-line voltage rise during ESD events, eliminating need for external VCC decoupling capacitors |
| 1 pF I/O capacitance | Minimizes insertion loss and phase skew on 480 Mbps USB 2.0 and 1.65 Gbps HDMI 1.3 signals |
| IEC 61000-4-2 level 4 compliance | Validated for ±8 kV contact discharge - satisfies EN 55032/55035 and FCC Part 15 Class B immunity requirements |
| SOT23 footprint compatibility | Direct replacement for legacy ESD diodes (e.g., PESD5V0S1BA, ESDALC6V1-1U2) without PCB redesign |
Applications
| USB 2.0 Interface Protection | HDMI TMDS Channel Protection |
|---|---|
|
Use Scenario: Protecting D+ and D− lines of a USB 2.0 host port against user-handling ESD events in portable docking stations. IC Role / Device Role / Timing Role: Bidirectional ESD clamp placed within 3 mm of the USB Type-A connector, providing rail-to-rail conduction without affecting 480 Mbps eye diagram. Use Value: Maintains USB 2.0 compliance with <1.5 pF loading and clamps ±8 kV transients to <12 V, preventing PHY latch-up or damage. |
Use Scenario: Shielding HDMI source-side TMDS clock and data channels in set-top boxes against ESD during cable insertion. IC Role / Device Role / Timing Role: Single-channel protection per TMDS pair, positioned adjacent to HDMI receptacle to minimize stub length and preserve 165 MHz signal integrity. Use Value: Delivers 1 pF capacitance and <10 ns response, ensuring no measurable rise-time degradation or jitter accumulation on 1.65 Gbps video streams. |
| Mobile Phone Audio Jack ESD Protection | Industrial LAN Port Surge Mitigation |
|
Use Scenario: Safeguarding 3.5 mm audio jack MIC and HP lines in smartphones against human-body-model ESD during headset plugging. IC Role / Device Role / Timing Role: Low-capacitance rail-to-rail clamp on analog audio paths, operating without VCC dependency via integrated VCC–GND diode. Use Value: Prevents audible pop/noise and amplifier damage with <100 nA reverse leakage and sub-12 V clamping under ±10 kV HBM stress. |
Use Scenario: Front-end ESD protection for 10/100BASE-TX Ethernet PHY differential pairs in industrial gateways exposed to field maintenance handling. IC Role / Device Role / Timing Role: Signal-line protector mounted directly at RJ45 magnetics interface, leveraging SOT23 size to fit dense port layouts. Use Value: Provides IEC 61000-4-2 level 4 immunity without compromising Common Mode Rejection Ratio (CMRR) due to matched 1 pF capacitance on both lines. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar ESD protection applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| PESD5V0S1BA,115 | Same SOT23 package; 0.9 pF capacitance but only 5.0 V VRWM and no integrated VCC–GND diode | Lacks supply-independent clamping; requires stable VCC ≥4.5 V for full protection coverage | Select when lower capacitance is critical and VCC is always present and regulated |
| ESDALC6V1-1U2 | 1.2 pF capacitance; 6.1 V VRWM; includes VCC–GND diode but rated only to ±6 kV IEC 61000-4-2 | Marginally higher capacitance and lower ESD rating limit use in harsher environments | Choose for cost-sensitive designs where ±6 kV immunity suffices and 1.2 pF is acceptable |
Compared with PESD5V0S1BA,115 and ESDALC6V1-1U2, the PRTR5V0U1T uniquely combines 1 pF capacitance, 5.5 V VRWM, ±8 kV ESD rating, and integrated VCC–GND diode-making it optimal for USB/HDMI protection where signal fidelity and supply-agnostic robustness are jointly required.
Availability
PRTR5V0U1T is available at Aetrix Electronics and suitable for USB 2.0 interface protection, HDMI TMDS channel safeguarding, and mobile audio jack ESD mitigation requiring stable component supply across production lifecycles.
Supply support for PRTR5V0U1T includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Nexperia is a global leader in discrete, logic, and PowerMOS semiconductors, spun off from NXP in 2017 and focused on automotive, industrial, computing, and consumer markets.
The PRTR5V0U1T belongs to Nexperia's ESD protection portfolio, engineered specifically for high-speed digital interfaces where ultra-low capacitance and guaranteed rail-to-rail clamping are non-negotiable.
FAQ
What is the maximum I/O-to-ground capacitance specification for PRTR5V0U1T?
The PRTR5V0U1T has a maximum I/O-to-ground capacitance of 1.5 pF, measured at 1 MHz and 0 V bias. This value is confirmed in Table 1 and Table 8 of the official datasheet. The typical value is 1 pF, making PRTR5V0U1T suitable for preserving signal integrity on USB 2.0 and HDMI 1.3 data lines without introducing measurable jitter or rise-time degradation.
Does PRTR5V0U1T require an active VCC supply to provide ESD protection?
Yes and no: PRTR5V0U1T uses VCC as a reference for its primary rail-to-rail clamping path, but its integrated VCC–GND ESD diode enables partial protection even when VCC is unpowered or floating. This dual-path architecture ensures clamping remains functional during brown-out or hot-plug scenarios, a key differentiator versus basic bidirectional diodes like PESD5V0S1BA.
What ESD standards does PRTR5V0U1T comply with, and at what levels?
PRTR5V0U1T complies with IEC 61000-4-2 level 4 for contact discharge (±8 kV) and meets MIL-STD-883 human body model (±10 kV). These ratings are explicitly stated in Table 6 and Table 7 of the datasheet. Compliance is verified using the test setup shown in Figure 3, with clamped waveforms demonstrating sub-12 V peak voltage under ±1 kV ESD pulses.
Can PRTR5V0U1T be used to protect differential signal pairs such as USB D+/D−?
Yes - PRTR5V0U1T is designed for single-ended or differential line protection. For USB D+/D−, two PRTR5V0U1T devices are used (one per line), each placed within 3 mm of the connector. Its 1 pF capacitance ensures matched loading, preserving common-mode rejection and eye diagram integrity at 480 Mbps, as validated in application note AN10782.
What is the reverse leakage current of PRTR5V0U1T at 3 V reverse bias?
The reverse leakage current of PRTR5V0U1T is specified as <100 nA at VR = 3 V, with typical values below 1 nA. This parameter is listed in Table 8 under "IR" and ensures minimal DC loading on high-impedance signal paths such as audio jack MIC inputs or sensor interfaces, preventing baseline shift or measurement error.
PRTR5V0U1T,215 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- NXP Semiconductors
- Package/Case:
- TO-236-3, SC-59, SOT-23-3
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Type:
- Steering (Rail to Rail)
- Unidirectional Channels:
- 1
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 5.5V (Max)
- Voltage - Breakdown (Min):
- 6V
- Voltage - Clamping (Max) @ Ipp:
- -
- Current - Peak Pulse (10/1000µs):
- -
- Power - Peak Pulse:
- -
- Power Line Protection:
- Yes
- Applications:
- General Purpose
- Capacitance @ Frequency:
- 1pF @ 1MHz
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-23 (TO-236AB)
