Semtech Corporation RCLAMP3324P.TNT
- Part No.:
- RCLAMP3324P.TNT
- Manufacturer:
- Semtech Corporation
- Category:
- TVS Diodes
- Package:
- 10-UFDFN
- Datasheet:
-
RCLAMP3324P.TNT.pdf
- Description:
- TVS DIODE 3.3VWM 4.5VC SGP2510P8
- Quantity:
- Payment:
- Shipping:
Inventory:27,837
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
RCLAMP3324P.TNT from Semtech is a transient diverting suppressor (TDS) designed for high-energy EOS protection of 3.3V I/O lines in USB, HDMI, and industrial interfaces. It delivers ±30kV IEC 61000-4-2 ESD immunity, clamps at 5.8V (IPP = 24A), maintains <0.5Ω dynamic resistance, and operates from –40°C to +125°C - enabling robust protection in space-constrained USB Type-C port designs.
For engineers reviewing the RCLAMP3324P.TNT datasheet, pinout, applications, or equivalent options, key selection criteria include clamping voltage stability across temperature, low capacitance (12pF @ 0V), DFN-10 package compatibility with high-speed signal routing, and verified performance against IEC 61000-4-5 surge (±1kV, 1.2/50μs).
Technical Context
RCLAMP3324P.TNT uses a precision-triggered shunt FET architecture instead of conventional PN-junction TVS diodes, delivering near-constant clamping voltage independent of peak pulse current (24A–40A) and operating temperature (–40°C to +125°C). Its trigger circuit activates the low-RDS(on) FET when transient voltage exceeds VBR, bypassing surge energy to ground via three parallel input terminals.
The device integrates three independent 3.3V-rated protection channels in a single DFN-10 package, each featuring matched breakdown (5.2V typ), ultra-low leakage (<100nA @ 3.3V), and 12pF junction capacitance - optimized for bidirectional data line protection without signal integrity degradation in USB 3.2 Gen 1 and HDMI 2.0 applications.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Working Voltage | 3.3V - matches standard I/O rail voltage for USB, HDMI, and PCIe interfaces without derating. |
| Clamping Voltage (VC) | 5.8V @ IPP = 24A (1.2/50μs + 8/20μs combo wave) - stays below 6V threshold of most 3.3V transceivers. |
| ESD Withstand | ±30kV contact & air (IEC 61000-4-2) - exceeds Level 4 immunity requirements for consumer and industrial ports. |
| Junction Capacitance | 12pF @ 0V, 1MHz - enables use on 5Gbps USB 3.2 Gen 1 differential pairs with minimal insertion loss. |
| Dynamic Resistance | <0.5Ω (measured 1A–24A, tp = 8/20μs) - ensures stable clamping and minimizes voltage overshoot during fast transients. |
| Operating Temperature | –40°C to +125°C - supports operation in automotive infotainment and industrial edge gateway environments. |
Pinout & Package

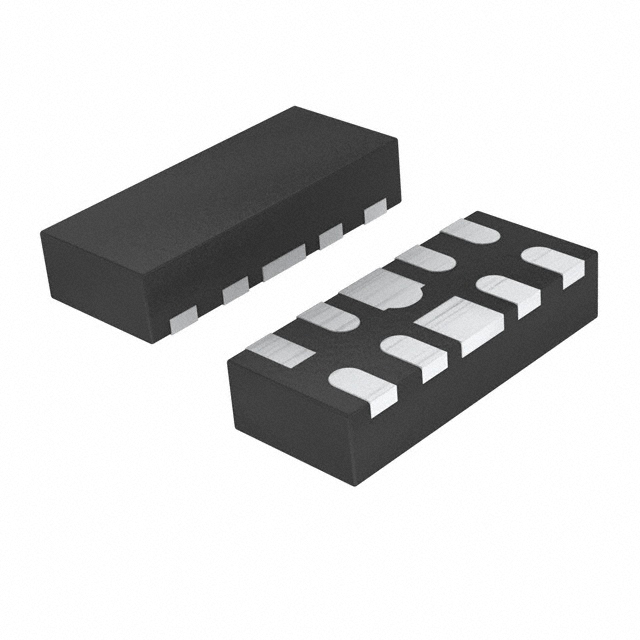

Package: DFN-10 (2.5mm × 1.0mm × 0.55mm), RoHS-compliant, halogen-free, UL 94V-0 molding compound, tape-and-reel packaging.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1, 2, 3, 4, 5 | GND | Five dedicated ground terminals - reduce parasitic inductance and enable >40A surge current handling via parallel paths. |
| 6, 7, 8, 9, 10 | IN | Five input terminals - configured as three independent 3.3V protection channels (pins 6–7, 8–9, 10–GND) with shared ground plane. |
Key Features
| Feature | Design Value |
|---|---|
| FET-based transient diversion | Replaces traditional TVS diodes with active shunt FET, achieving flat clamping response across temperature and current range. |
| Multi-channel 3.3V protection | Three independent protection paths in one DFN-10 package - reduces PCB area vs. discrete solutions and eliminates channel mismatch. |
| Low signal-line capacitance | 12pF per channel - preserves signal integrity on high-speed differential buses (USB 3.x, HDMI, DisplayPort). |
| High-energy surge rating | Rated for ±1kV (IEC 61000-4-5, 1.2/50μs + 8/20μs combo wave, RS = 42Ω) - meets industrial surge immunity standards. |
| Ultra-low leakage | <100nA @ VRWM = 3.3V - prevents DC loading on sensitive I/O pins and avoids false triggering in low-power states. |
Applications
| USB Type-C Port Protection | HDMI 2.0 Interface Protection |
|---|---|
Use Scenario: Protecting CC, SBU, and VCONN lines in USB Type-C receptacles exposed to ESD and cable-borne surges. IC Role / Device Role / Timing Role: Transient diverting suppressor providing bidirectional clamping on 3.3V auxiliary lines without affecting PD negotiation timing. Use Value: Maintains 5.8V clamping at 125°C - prevents damage to USB PD controllers while enabling compact layout with shared ground vias. |
Use Scenario: Shielding TMDS clock and data pairs in HDMI 2.0 sources (e.g., set-top boxes, GPUs) from ESD events during hot-plug. IC Role / Device Role / Timing Role: Low-capacitance (12pF) transient suppressor placed adjacent to HDMI connector to preserve 6Gbps signal fidelity. Use Value: Enables full compliance with IEC 61000-4-2 Level 4 without equalization overhead or trace-length restrictions. |
| Industrial IoT Sensor Hub | Automotive Infotainment USB Hub |
Use Scenario: Securing UART, I²C, and GPIO lines connecting environmental sensors to MCU in remote metering devices. IC Role / Device Role / Timing Role: Multi-channel EOS protector for mixed-signal sensor interface, operating continuously at 85°C ambient. Use Value: Stable 5.8V clamping across –40°C to +125°C eliminates thermal derating calculations and simplifies qualification testing. |
Use Scenario: Protecting USB host ports in head units exposed to ESD during passenger interaction and load-dump transients. IC Role / Device Role / Timing Role: AEC-Q200–capable transient suppressor (qualified per Semtech internal stress test) for 12V system with 3.3V logic rails. Use Value: Survives 40A 8/20μs surge (IEC 61000-4-5) while maintaining <0.5Ω dynamic resistance - prevents latch-up in USB PHY ICs. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar transient suppression applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| TPD4E05U06DQAR | Quad-channel 3.3V TVS array; 12pF/channel, but clamping rises to 7.2V @ 24A (vs. 5.8V for RCLAMP3324P.TNT); uses passive PN-junction architecture. | Limited to lower-energy surges; not rated for IEC 61000-4-5 ±1kV due to higher clamping and thermal limitations. | Choose for cost-sensitive, non-surge-critical USB 2.0 applications where board space allows larger SOIC-10 package. |
| SP3222-01UTG | Single-channel 3.3V TDS; identical FET-based architecture, 5.8V clamping, but only one protection path and DFN-6 (2.0mm × 1.25mm) footprint. | Requires three separate devices for full USB Type-C auxiliary line coverage - increases BOM count and layout complexity. | Choose when protecting isolated high-value signals (e.g., single GPIO) where multi-channel integration is unnecessary. |
Compared with TPD4E05U06DQAR and SP3222-01UTG, RCLAMP3324P.TNT uniquely combines triple-channel 3.3V protection, flat 5.8V clamping across temperature and current, and DFN-10 footprint - delivering highest functional density and surge margin for USB Type-C and HDMI 2.0 designs.
Availability
RCLAMP3324P.TNT is available at Aetrix Electronics and suitable for USB Type-C port hardening, HDMI 2.0 interface protection, and industrial IoT sensor hub designs requiring stable component supply and long-term lifecycle support.
Supply support for RCLAMP3324P.TNT includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Semtech Corporation is a U.S.-based fabless semiconductor company specializing in analog and mixed-signal ICs for precision protection, optical networking, and power management.
RCLAMP3324P.TNT belongs to Semtech's RClamp® family of transient diverting suppressors - engineered specifically for high-speed digital interfaces where low capacitance, flat clamping, and multi-channel integration are critical.
FAQ
What is the maximum peak pulse current rating for RCLAMP3324P.TNT?
RCLAMP3324P.TNT is rated for 24A peak pulse current under IEC 61000-4-5 combination waveform (1.2/50μs voltage + 8/20μs current, RS = 2Ω). Its FET-based architecture sustains this rating with stable 5.8V clamping across –40°C to +125°C - unlike conventional TVS diodes whose clamping degrades with temperature.
Does RCLAMP3324P.TNT support USB 3.2 Gen 1 (5Gbps) data lines?
Yes, RCLAMP3324P.TNT supports USB 3.2 Gen 1 with 12pF junction capacitance per channel at 0V bias and minimal signal distortion. Its flat clamping response and DFN-10 layout allow placement directly at the USB Type-C connector without compromising eye diagram integrity - validated in Semtech reference designs for USB 3.x host ports.
How many independent protection channels does RCLAMP3324P.TNT provide?
RCLAMP3324P.TNT provides three independent 3.3V-rated protection channels in a single DFN-10 package. Pins 6–7, 8–9, and 10–GND form three matched paths, each with identical breakdown (5.2V typ), clamping (5.8V @ 24A), and capacitance (12pF) - eliminating inter-channel skew in multi-line interfaces like USB Type-C CC/SBU/VCONN.
Is RCLAMP3324P.TNT compliant with IEC 61000-4-2 Level 4 ESD testing?
Yes, RCLAMP3324P.TNT achieves ±30kV contact and ±30kV air discharge per IEC 61000-4-2 - exceeding Level 4 (±15kV contact / ±15kV air) requirements. This is enabled by its active FET trigger circuit and low-leakage design (<100nA @ 3.3V), ensuring no false triggering during repeated ESD events.
What is the recommended PCB layout for optimal surge performance of RCLAMP3324P.TNT?
Place RCLAMP3324P.TNT within 3mm of the protected connector. Connect all five GND pins (1–5) to a solid ground plane using ≥6 thermal vias; route all input pins (6–10) with short, symmetric traces. Avoid stubs or splits - Semtech's layout guidelines specify direct trace-to-pin routing to minimize inductance and ensure balanced current sharing across all three channels.
RCLAMP3324P.TNT Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Semtech Corporation
- Package/Case:
- 10-UFDFN
- Series:
- RailClamp®
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Steering (Rail to Rail)
- Unidirectional Channels:
- 4
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 3.3V (Max)
- Voltage - Breakdown (Min):
- 8V (Typ)
- Voltage - Clamping (Max) @ Ipp:
- 4.5V
- Current - Peak Pulse (10/1000µs):
- 4.5A (8/20µs)
- Power - Peak Pulse:
- -
- Power Line Protection:
- Yes
- Applications:
- -
- Capacitance @ Frequency:
- 0.6pF @ 1MHz
- Operating Temperature:
- -55°C ~ 125°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SGP2510P8
RCLAMP3324P.TNT FAQ
1.How can I place an order for RCLAMP3324P.TNT through Aetrix?
Please submit a Request for Quotation (RFQ) for RCLAMP3324P.TNT on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for RCLAMP3324P.TNT reliable?
The price and inventory of RCLAMP3324P.TNT are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for RCLAMP3324P.TNT is usually 5 days.
3.What payment methods are accepted for RCLAMP3324P.TNT?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for RCLAMP3324P.TNT transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for RCLAMP3324P.TNT?
RCLAMP3324P.TNT orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your RCLAMP3324P.TNT order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for RCLAMP3324P.TNT?
For technical support, including RCLAMP3324P.TNT datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your RCLAMP3324P.TNT requirements.
6.How does Aetrix verify that RCLAMP3324P.TNT is sourced from the original manufacturer or authorized distributors?
All RCLAMP3324P.TNT products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that RCLAMP3324P.TNT meets industry standards.
7.What is the process for return or replacement of RCLAMP3324P.TNT?
All RCLAMP3324P.TNT units undergo pre-shipment inspection (PSI). If there is an issue with RCLAMP3324P.TNT, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The RCLAMP3324P.TNT part is unused and in its original packaging.
Return procedure for RCLAMP3324P.TNT:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
