Vishay Siliconix SIHF22N60E-GE3

Name: SIHF22N60E-GE3
Brand: Vishay Siliconix
SKU: SIHF22N60E-GE3
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: SIHF22N60E-GE3

Manufacturer:: Vishay Siliconix

Category:: FETs, MOSFETs

Package:: TO-220-3 Full Pack

Datasheet:: SIHF22N60E-GE3.pdf

Description:: MOSFET N-CH 600V 21A TO220

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Inventory:946

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Product details

Overview

SIHF22N60E-GE3 from Vishay Siliconix is a 600 V, 21 A N-channel enhancement-mode Power MOSFET in TO-220 FULLPAK package, featuring R_DS(on) = 0.18 Ω (max) at V_GS = 10 V, Q_g = 86 nC (max), and avalanche-rated (E_AS = 367 mJ). It serves as a high-voltage switching element in primary-side SMPS, PFC stages, and solar inverter DC-link circuits.

For engineers reviewing the SIHF22N60E-GE3 datasheet, SIHF22N60E-GE3 pinout, SIHF22N60E-GE3 application, or SIHF22N60E-GE3 equivalent, key selection criteria include its 600 V V_DS rating, low gate charge for reduced switching loss, TO-220 FULLPAK thermal performance (R_thJC = 3.6 °C/W), and UIS ruggedness for inductive load handling.

Technical Context

This MOSFET employs planar stripe silicon technology optimized for high-voltage power conversion. Its gate structure minimizes Q_g and C_iss (1920 pF typ.), enabling fast turn-on with low drive power while maintaining robust dV/dt immunity (70 V/ns at T_J = 125 °C).

The integrated body diode supports synchronous rectification and freewheeling in hard-switched topologies. Diode parameters-V_SD = 1.2 V (typ. at I_S = 11 A), t_rr = 344 ns (typ.), Q_rr = 5.3 μC-are specified under standardized conditions (dI/dt = 100 A/μs, V_R = 25 V) to support accurate loss modeling in bridge configurations.

Key Specifications

Parameter	Value and Actual Design Meaning
V_DS	600 V - Withstands full-line transients in 400 V DC bus applications without clamping.
R_DS(on) max	0.18 Ω at V_GS = 10 V, T_J = 25 °C - Enables <1.9 W conduction loss at 11 A continuous drain current.
Q_g max	86 nC - Reduces gate driver power requirement and enables >100 kHz switching in PFC designs.
E_AS	367 mJ - Supports unclamped inductive switching events up to 5.1 A with L = 28.2 mH.
R_thJC	3.6 °C/W - Delivers 35 W maximum power dissipation with minimal case-to-heatsink thermal resistance.
I_D cont.	21 A at T_C = 25 °C - Sustains high-current operation in server PSU primary switches with active heatsinking.
C_iss	1920 pF typ. at V_DS = 100 V - Low input capacitance improves voltage gain stability in gate-drive networks.

Pinout & Package

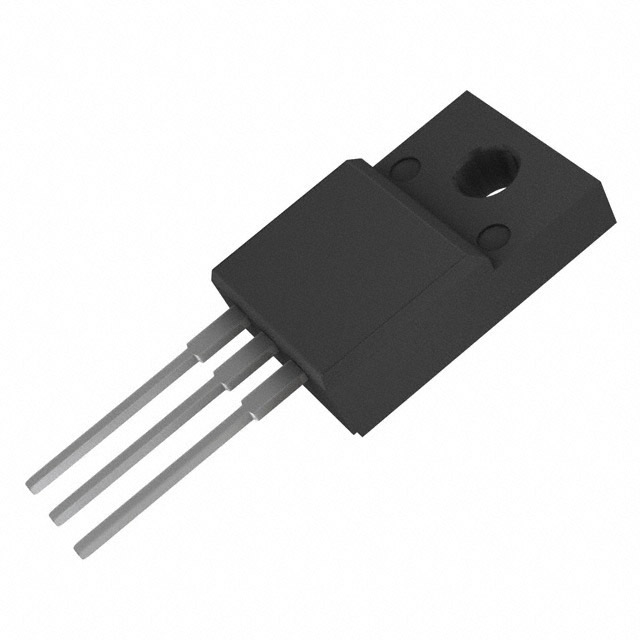

TO-220 FULLPAK package with isolated drain tab (exposed copper on backside), 3-pin through-hole mounting, and M3 screw torque specification of 0.6 Nm. Thermal path optimized via direct die-to-tab interface.

Pin/Terminal	Circuit Role	Design Meaning
Drain (D)	Main high-voltage current path	Internally connected to exposed metal tab - must be electrically isolated from heatsink unless referenced to system ground.
Gate (G)	Control terminal	High-impedance MOS gate requiring ≤ ±30 V drive; sensitive to ESD - requires gate resistor (R_g = 4.7 Ω typical) for controlled switching.
Source (S)	Reference node for gate drive and current return	Common connection point for source current and gate drive return; establishes local ground reference for driver IC placement.

Key Features

Feature	Design Value
Low FOM (R_DS(on) × Q_g)	15.5 Ω·nC (0.18 Ω × 86 nC) - Balances conduction and switching losses for optimal efficiency in 50–200 kHz SMPS.
Avalanche energy rating	367 mJ single-pulse - Eliminates need for external snubbers in flyback and resonant LLC primary switches.
Ultra-low Q_gd/Q_g ratio	24/86 ≈ 28% - Minimizes Miller plateau duration, improving dv/dt immunity and reducing cross-conduction risk in half-bridges.
Body diode t_rr & Q_rr	344 ns / 5.3 μC - Predictable reverse recovery behavior enables reliable synchronous rectification in secondary-side control.
Lead (Pb)-free & halogen-free	Complies with RoHS Directive 2011/65/EU and JEDEC J-STD-020 reflow profile - suitable for lead-free assembly processes.

Applications

Server Power Supply Primary Switch	Solar PV Inverter DC-Link Switch
Use Scenario: High-efficiency 80 PLUS Titanium AC/DC front-end converting 230 VAC to 400 VDC bus. IC Role / Device Role / Timing Role: Main switching device in continuous conduction mode (CCM) PFC boost stage operating at 70–100 kHz. Use Value: Low Q_g and R_DS(on) reduce total losses below 2.5 W at 11 A, supporting >98% PFC efficiency at full load.	Use Scenario: DC-side switching in string inverters handling 600–1000 V DC input from photovoltaic arrays. IC Role / Device Role / Timing Role: High-side switch in H-bridge or NPC topology managing bidirectional energy flow during MPPT and grid synchronization. Use Value: 600 V V_DS rating with 150 °C T_J capability ensures margin against DC bus overvoltage during islanding events.
Industrial Motor Drive Inverter Stage	Fluorescent Ballast Electronic Control Gear
Use Scenario: 3-phase inverter output stage driving 0.75–2.2 kW induction motors in HVAC and pump systems. IC Role / Device Role / Timing Role: Lower-leg switch in IGBT/MOSFET hybrid inverter, commutating at 8–16 kHz with forced air cooling. Use Value: Avalanche rating allows safe operation during motor short-circuit fault conditions without desaturation protection circuitry.	Use Scenario: High-frequency resonant inverter powering 32–40 W T8/T5 fluorescent lamps with dimming control. IC Role / Device Role / Timing Role: Half-bridge switch operating at 25–65 kHz, providing zero-voltage switching (ZVS) for lamp ignition and regulation. Use Value: Low C_oss (90 pF typ.) and fast t_f (35–70 ns) enable clean ZVS transitions and minimize EMI generation in lighting EMI filters.

Server Power Supply Primary Switch

Solar PV Inverter DC-Link Switch

Use Scenario: High-efficiency 80 PLUS Titanium AC/DC front-end converting 230 VAC to 400 VDC bus.

IC Role / Device Role / Timing Role: Main switching device in continuous conduction mode (CCM) PFC boost stage operating at 70–100 kHz.

Use Value: Low Q_g and R_DS(on) reduce total losses below 2.5 W at 11 A, supporting >98% PFC efficiency at full load.

Use Scenario: DC-side switching in string inverters handling 600–1000 V DC input from photovoltaic arrays.

IC Role / Device Role / Timing Role: High-side switch in H-bridge or NPC topology managing bidirectional energy flow during MPPT and grid synchronization.

Use Value: 600 V V_DS rating with 150 °C T_J capability ensures margin against DC bus overvoltage during islanding events.

Industrial Motor Drive Inverter Stage

Fluorescent Ballast Electronic Control Gear

Use Scenario: 3-phase inverter output stage driving 0.75–2.2 kW induction motors in HVAC and pump systems.

IC Role / Device Role / Timing Role: Lower-leg switch in IGBT/MOSFET hybrid inverter, commutating at 8–16 kHz with forced air cooling.

Use Value: Avalanche rating allows safe operation during motor short-circuit fault conditions without desaturation protection circuitry.

Use Scenario: High-frequency resonant inverter powering 32–40 W T8/T5 fluorescent lamps with dimming control.

IC Role / Device Role / Timing Role: Half-bridge switch operating at 25–65 kHz, providing zero-voltage switching (ZVS) for lamp ignition and regulation.

Use Value: Low C_oss (90 pF typ.) and fast t_f (35–70 ns) enable clean ZVS transitions and minimize EMI generation in lighting EMI filters.

Equivalent & Alternatives

The following parts are listed as comparable options for similar high-voltage power switching applications.

Alternative Part	Technical Difference	Application Difference	Selection Advice
STP22NM60ND	R_DS(on) = 0.19 Ω (max), Q_g = 75 nC (max), TO-220FP package, no UIS rating	Lacks avalanche energy specification - requires external clamping in inductive loads	Preferred where gate drive power is critical and system-level protection handles transient energy.
IXFH22N60P	R_DS(on) = 0.20 Ω (max), Q_g = 92 nC (max), TO-247AC package, E_AS = 420 mJ	Larger TO-247 footprint and higher Q_g, but superior avalanche margin and thermal mass	Chosen when board space permits and higher reliability under repetitive surge stress is required.

Compared with STP22NM60ND and IXFH22N60P, SIHF22N60E-GE3 offers the best balance of low gate charge, certified UIS ruggedness, and compact TO-220 FULLPAK thermal performance - making it optimal for space-constrained, high-reliability 600 V SMPS designs.

Availability

SIHF22N60E-GE3 is available at Aetrix Electronics and suitable for server power supplies, solar PV inverters, and industrial motor drives requiring stable component supply, long-term lifecycle support, and consistent parametric performance across production batches.

Supply support for SIHF22N60E-GE3 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

Vishay Siliconix is a global leader in discrete semiconductors, specializing in high-performance MOSFETs, diodes, and optoelectronics with emphasis on power efficiency and ruggedness.

The E Series Power MOSFETs, including SIHF22N60E-GE3, were engineered for high-voltage, high-frequency switching in telecom, server, and renewable energy power conversion systems where low conduction + switching loss trade-offs are critical.

FAQ

What is the maximum continuous drain current rating for SIHF22N60E-GE3 at 100 °C case temperature?

The SIHF22N60E-GE3 supports a continuous drain current of 13 A at T_C = 100 °C, as specified in the Absolute Maximum Ratings table. This derating reflects thermal limitations of the TO-220 FULLPAK package and must be validated against actual PCB layout, heatsink interface, and ambient airflow in the final design. The SIHF22N60E-GE3 datasheet provides detailed SOA curves for pulse operation beyond this limit.

Does SIHF22N60E-GE3 have a fully rated avalanche capability, and how is it tested?

Yes, SIHF22N60E-GE3 is fully rated for single-pulse avalanche energy (E_AS = 367 mJ), verified per JEDEC standard JESD24-1 using V_DD = 50 V, L = 28.2 mH, R_g = 25 Ω, and I_AS = 5.1 A. This rating applies to unclamped inductive switching events and is not intended for repetitive operation. The SIHF22N60E-GE3 datasheet includes test circuit diagrams and waveform definitions for validation.

What is the gate threshold voltage range for SIHF22N60E-GE3, and how does it affect drive requirements?

The SIHF22N60E-GE3 has a gate threshold voltage (V_GS(th)) range of 2.0 V to 4.0 V at I_D = 250 μA. This standard-level threshold requires ≥10 V gate drive for full enhancement and low R_DS(on). Driving below 8 V risks incomplete turn-on and excessive conduction loss. The SIHF22N60E-GE3 is not a logic-level device and must be paired with a dedicated gate driver capable of sourcing/sinking >1 A peak current.

How does the TO-220 FULLPAK package of SIHF22N60E-GE3 differ from standard TO-220 in thermal performance?

The TO-220 FULLPAK package used by SIHF22N60E-GE3 integrates an insulated drain tab with enhanced thermal path from die to case, achieving R_thJC = 3.6 °C/W - significantly lower than standard TO-220 (typically ~4.5–5.0 °C/W). This improvement results from reduced interfacial resistance between silicon die and copper tab, allowing higher power density in compact layouts. The SIHF22N60E-GE3 package drawing confirms isolation compliance per UL 60950-1.

Can SIHF22N60E-GE3 be used in parallel configurations, and what layout considerations apply?

SIHF22N60E-GE3 supports paralleling due to its positive R_DS(on) temperature coefficient, which promotes current sharing above 25 °C junction temperature. Successful implementation requires matched gate drive paths (equal R_g, trace length, and inductance), symmetrical source routing to minimize loop inductance, and individual Kelvin-source connections for gate driver feedback. The SIHF22N60E-GE3 datasheet recommends <500 ps skew between gate signals for stable operation.

SIHF22N60E-GE3 Specifications

Product attributes: Attribute value

Manufacturer:: Vishay Siliconix

Series:: E

Package/Case:: TO-220-3 Full Pack

Packaging:: Tube

Product Status:: Active

FET Type:: N-Channel

Technology:: MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):: 600 V

Current - Continuous Drain (Id) @ 25°C:: 21A (Tc)

Drive Voltage (Max Rds On, Min Rds On):: 10V

Rds On (Max) @ Id, Vgs:: 180mOhm @ 11A, 10V

Vgs(th) (Max) @ Id:: 4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs:: 86 nC @ 10 V

Vgs (Max):: ±30V

Input Capacitance (Ciss) (Max) @ Vds:: 1920 pF @ 100 V

FET Feature:: -

Power Dissipation (Max):: 35W (Tc)

Operating Temperature:: -55°C ~ 150°C (TJ)

Grade:: -

Qualification:: -

Mounting Type:: Through Hole

Supplier Device Package:: TO-220 Full Pack

SIHF22N60E-GE3 FAQ

1.How can I place an order for SIHF22N60E-GE3 through Aetrix?

Please submit a Request for Quotation (RFQ) for SIHF22N60E-GE3 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.

2.Are the price and stock information for SIHF22N60E-GE3 reliable?

The price and inventory of SIHF22N60E-GE3 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for SIHF22N60E-GE3 is usually 5 days.

3.What payment methods are accepted for SIHF22N60E-GE3?

We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for SIHF22N60E-GE3 transactions.

Note: Certain payment methods may incur a processing fee.

4.How is shipping managed for SIHF22N60E-GE3?

SIHF22N60E-GE3 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.

Once your SIHF22N60E-GE3 order is processed, you will receive an email with the shipment details and tracking number.

Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.

5.How can I obtain technical support or documentation for SIHF22N60E-GE3?

For technical support, including SIHF22N60E-GE3 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your SIHF22N60E-GE3 requirements.

6.How does Aetrix verify that SIHF22N60E-GE3 is sourced from the original manufacturer or authorized distributors?

All SIHF22N60E-GE3 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that SIHF22N60E-GE3 meets industry standards.

7.What is the process for return or replacement of SIHF22N60E-GE3?

All SIHF22N60E-GE3 units undergo pre-shipment inspection (PSI). If there is an issue with SIHF22N60E-GE3, returns or replacements are accepted under the following conditions:

1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.

2.The issue is reported within 90 days of delivery.

3.The SIHF22N60E-GE3 part is unused and in its original packaging.

Return procedure for SIHF22N60E-GE3:

1.Submit a request within 90 days.

2.Obtain a Return Material Authorization (RMA) from Aetrix.
