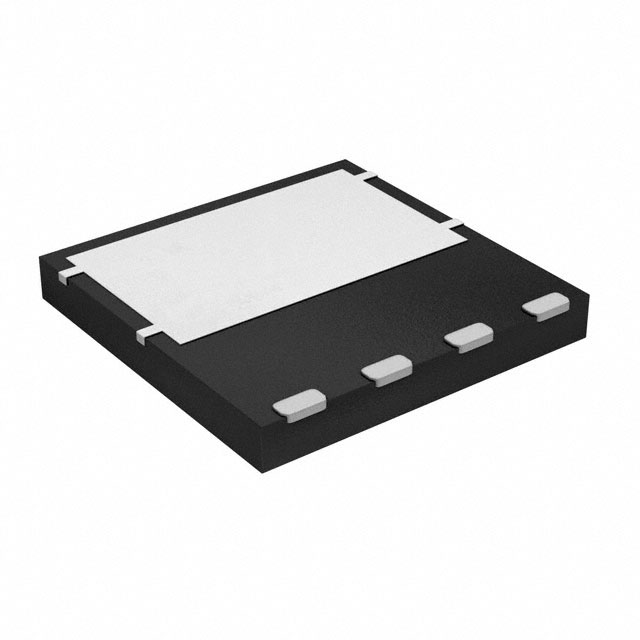

Vishay Siliconix SIRA64DP-T1-RE3

Name: SIRA64DP-T1-RE3
Brand: Vishay Siliconix
SKU: SIRA64DP-T1-RE3
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: SIRA64DP-T1-RE3

Manufacturer:: Vishay Siliconix

Category:: FETs, MOSFETs

Package:: PowerPAK® SO-8

Datasheet:: SIRA64DP-T1-RE3.pdf

Description:: MOSFET N-CH 30V 60A PPAK SO-8

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Inventory:8,826

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Product details

Overview

SIRA64DP-T1-RE3 from Vishay Siliconix is an N-channel 30 V TrenchFET® Gen IV power MOSFET in PowerPAK® SO-8 package, delivering R_DS(on) = 2.10 mΩ at V_GS = 10 V and 2.86 mΩ at V_GS = 4.5 V, with 19.7 nC typical total gate charge and 60 A continuous drain current (T_J = 150 °C). It serves as a high-efficiency synchronous rectifier or load switch in compact DC/DC converters.

For engineers reviewing the SIRA64DP-T1-RE3 datasheet, SIRA64DP-T1-RE3 pinout, SIRA64DP-T1-RE3 application, or SIRA64DP-T1-RE3 equivalent, key selection criteria include low R_DS(on) at 4.5 V drive, optimized Q_gd/Q_gs ratio for reduced switching loss, 100% UIS testing, and PowerPAK SO-8 thermal performance under high-current transient loads.

Technical Context

This MOSFET employs TrenchFET® Gen IV silicon architecture to achieve ultra-low on-resistance and tightly controlled gate charge parameters. Its dynamic characteristics-C_iss = 3420 pF, C_oss = 1100 pF, C_rss = 81 pF, and Crss/Ciss = 0.024–0.048-support fast, low-loss switching in high-frequency synchronous buck topologies.

The device features a robust body diode with t_rr = 40–80 ns and Q_rr = 34–70 nC, enabling efficient reverse recovery in hard-switched applications. Thermal design is enabled by R_thJC = 3.4 °C/W (typ.) and R_thJA = 20–25 °C/W (1" × 1" FR4), with junction temperature rated from –55 °C to +150 °C.

Key Specifications

Parameter	Value and Actual Design Meaning
V_DS	30 V - Maximum drain-source blocking voltage; suitable for 24 V input rails and VRM secondary-side operation.
R_DS(on) @ 10 V	2.10 mΩ - Enables <1.2 W conduction loss at 60 A, critical for high-power-density DC/DC stages.
R_DS(on) @ 4.5 V	2.86 mΩ - Ensures stable on-state performance with standard 5 V gate drivers or controller outputs.
Q_g typ.	19.7 nC - Low gate charge reduces driver power demand and enables >1 MHz switching in advanced POL converters.
I_D cont. (T_J = 150 °C)	60 A - Continuous current rating validated under case temperature-limited conditions, not ambient-limited.
R_thJC max.	4.5 °C/W - Confirms effective heat transfer from die to PCB copper pad, supporting thermal management in high-current layouts.
V_GS(th)	1.1–2.2 V - Threshold range ensures reliable turn-on with 3.3 V or 5 V logic-level control without unintended conduction.

Pinout & Package

Package: PowerPAK® SO-8 (leadless, exposed drain paddle), dimensions 6.15 mm × 5.15 mm × 1.04 mm (L × W × H), RoHS-compliant and halogen-free.

Pin/Terminal	Circuit Role	Design Meaning
1, 2, 3, 4	Source (S)	Four parallel source terminals reduce source inductance and improve current sharing in high-di/dt switching.
5, 6, 7, 8	Drain (D)	Four drain terminals connected to large exposed copper paddle; primary thermal path to PCB ground plane.
G (Pin 1 side marking)	Gate (G)	Single gate terminal located adjacent to source pins; optimized layout minimizes gate loop inductance.

Key Features

Feature	Design Value
TrenchFET® Gen IV silicon	Delivers industry-leading R_DS(on) × Q_g figure-of-merit for minimal conduction + switching loss trade-off.
Optimized Q_gd/Q_gs ratio	Reduces Miller-induced switching delay and dv/dt-induced false turn-on in high-side configurations.
100 % R_g and UIS tested	Ensures gate resistance consistency and ruggedness against unclamped inductive switching stress.
PowerPAK SO-8 thermal design	Exposed drain paddle provides direct thermal path to PCB, achieving 3.4 °C/W junction-to-case resistance.
Low V_GS(th) variation over temperature	ΔV_GS(th)/T_J = –6.2 mV/°C supports stable gate drive margin across –55 °C to +150 °C operating range.

Applications

Synchronous Buck Converter	VRM / Point-of-Load Regulator
Use Scenario: High-efficiency 12 V–1 V conversion in server CPU/GPU VRMs operating at 500 kHz–1 MHz. IC Role / Device Role / Timing Role: Low-side synchronous rectifier replacing Schottky diode; commutates during dead-time intervals with precise timing control. Use Value: Achieves <0.5 % efficiency gain over legacy MOSFETs due to 2.86 mΩ R_DS(on) at 4.5 V drive and 19.7 nC Q_g.	Use Scenario: Compact 48 V–3.3 V intermediate bus converter in telecom base station power modules. IC Role / Device Role / Timing Role: Primary high-current switch in interleaved buck stage; handles peak currents up to 100 A pulsed. Use Value: Supports >95 % full-load efficiency via low 2.10 mΩ R_DS(on) and 4.5 °C/W thermal resistance to heatsink.
High-Power Density DC/DC	Synchronous Rectification
Use Scenario: 1 kW, 2U rack-mounted AC/DC front-end with 48 V output bus feeding downstream POL converters. IC Role / Device Role / Timing Role: Load switch controlling hot-swap sequencing and inrush limiting on 48 V distribution rail. Use Value: 60 A continuous rating and 100 A pulsed capability enable single-device rail protection without paralleling.	Use Scenario: Secondary-side rectification in isolated LLC resonant converters for data center PSUs. IC Role / Device Role / Timing Role: Synchronous rectifier driven by transformer-coupled gate signals; conducts during positive half-cycle of secondary winding voltage. Use Value: Body diode t_rr = 40 ns and Q_rr = 34 nC minimize reverse recovery loss and EMI during zero-voltage switching transitions.

Synchronous Buck Converter

VRM / Point-of-Load Regulator

Use Scenario: High-efficiency 12 V–1 V conversion in server CPU/GPU VRMs operating at 500 kHz–1 MHz.

IC Role / Device Role / Timing Role: Low-side synchronous rectifier replacing Schottky diode; commutates during dead-time intervals with precise timing control.

Use Value: Achieves <0.5 % efficiency gain over legacy MOSFETs due to 2.86 mΩ R_DS(on) at 4.5 V drive and 19.7 nC Q_g.

Use Scenario: Compact 48 V–3.3 V intermediate bus converter in telecom base station power modules.

IC Role / Device Role / Timing Role: Primary high-current switch in interleaved buck stage; handles peak currents up to 100 A pulsed.

Use Value: Supports >95 % full-load efficiency via low 2.10 mΩ R_DS(on) and 4.5 °C/W thermal resistance to heatsink.

High-Power Density DC/DC

Synchronous Rectification

Use Scenario: 1 kW, 2U rack-mounted AC/DC front-end with 48 V output bus feeding downstream POL converters.

IC Role / Device Role / Timing Role: Load switch controlling hot-swap sequencing and inrush limiting on 48 V distribution rail.

Use Value: 60 A continuous rating and 100 A pulsed capability enable single-device rail protection without paralleling.

Use Scenario: Secondary-side rectification in isolated LLC resonant converters for data center PSUs.

IC Role / Device Role / Timing Role: Synchronous rectifier driven by transformer-coupled gate signals; conducts during positive half-cycle of secondary winding voltage.

Use Value: Body diode t_rr = 40 ns and Q_rr = 34 nC minimize reverse recovery loss and EMI during zero-voltage switching transitions.

Equivalent & Alternatives

The following parts are listed as comparable options for similar N-channel power MOSFET applications.

Alternative Part	Technical Difference	Application Difference	Selection Advice
SiR626DP-T1-RE3	R_DS(on) = 2.35 mΩ @ 10 V; Q_g = 17.5 nC; same PowerPAK SO-8 package.	Slightly higher conduction loss but lower gate charge improves light-load efficiency in variable-frequency controllers.	Select when optimizing for gate drive power savings over absolute minimum R_DS(on).
IRL6217PBF	R_DS(on) = 3.2 mΩ @ 4.5 V; TO-220 package; no UIS testing; R_thJA ≈ 62 °C/W.	Larger footprint and inferior thermal performance limit use to low-frequency, low-power (<15 A) applications.	Consider only for cost-sensitive, non-high-density designs where layout space and thermal headroom are abundant.

Compared with SiR626DP-T1-RE3, SIRA64DP-T1-RE3 offers lower R_DS(on) for improved full-load efficiency, while IRL6217PBF trades performance for legacy through-hole compatibility and lower unit cost-neither is pin-compatible, requiring layout revision.

Availability

SIRA64DP-T1-RE3 is available at Aetrix Electronics and suitable for synchronous buck converters, VRMs, high-power-density DC/DC modules, and load-switching applications requiring stable component supply, long-term lifecycle support, and traceable sourcing.

Supply support for SIRA64DP-T1-RE3 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

Vishay Siliconix is a global leader in discrete semiconductors, specializing in MOSFETs, diodes, optoelectronics, and passive components with emphasis on power efficiency and reliability.

The PowerPAK SO-8 MOSFET product line targets high-current, high-frequency power conversion systems-including server VRMs, telecom DC/DC, and industrial motor drives-where low R_DS(on), fast switching, and superior thermal performance are mandatory.

FAQ

What is the maximum continuous drain current rating for SIRA64DP-T1-RE3 at 70 °C case temperature?

The SIRA64DP-T1-RE3 supports 60 A continuous drain current at T_C = 70 °C, as specified in the Absolute Maximum Ratings table. This rating reflects package-limited conduction capability under steady-state thermal conditions and assumes adequate PCB copper area for heat dissipation. The SIRA64DP-T1-RE3 maintains this current level without derating between 25 °C and 70 °C case temperature.

Does SIRA64DP-T1-RE3 require a gate resistor for stable operation in a 1 MHz synchronous buck converter?

The SIRA64DP-T1-RE3 has a typical gate resistance (R_g) of 0.8 Ω and low Q_gd/Q_gs ratio, making it inherently resistant to oscillation. However, a small gate resistor (1–3 Ω) is recommended to dampen ringing and control dV/dt during turn-on/off transients in 1 MHz operation. This ensures clean switching edges and prevents false triggering in high-noise environments where the SIRA64DP-T1-RE3 is deployed.

Can SIRA64DP-T1-RE3 be used as a high-side switch with 5 V gate drive?

Yes, the SIRA64DP-T1-RE3 is fully compatible with 5 V gate drive: its V_GS(th) range (1.1–2.2 V) guarantees turn-on, and R_DS(on) = 2.86 mΩ at V_GS = 4.5 V ensures low conduction loss. For high-side use, ensure gate drive voltage exceeds source potential by ≥4.5 V and consider bootstrap or isolated gate driver circuitry. The SIRA64DP-T1-RE3's 100% UIS testing further validates robustness in inductive high-side switching.

What is the thermal resistance from junction to ambient for SIRA64DP-T1-RE3 on a standard 1" × 1" FR4 board?

Per the datasheet, the SIRA64DP-T1-RE3 exhibits R_thJA = 25 °C/W maximum (20 °C/W typical) when mounted on a 1" × 1" FR4 board with 2 oz copper. This value assumes standard solder paste reflow and no additional heatsinking. For higher power densities, thermal performance improves significantly when using internal copper planes or external heatsinks, as the SIRA64DP-T1-RE3's R_thJC = 3.4 °C/W enables efficient heat extraction via the exposed drain paddle.

Is SIRA64DP-T1-RE3 suitable for synchronous rectification in an LLC resonant converter?

Yes, the SIRA64DP-T1-RE3 is well-suited for LLC synchronous rectification due to its fast body diode (t_rr = 40–80 ns, Q_rr = 34–70 nC) and low R_DS(on) at low V_GS. Its optimized Q_gd/Q_gs ratio suppresses Miller-induced turn-on during high dv/dt transitions common in resonant topologies. When used as a synchronous rectifier, the SIRA64DP-T1-RE3 delivers measurable efficiency gains over Schottky diodes in 48 V–12 V isolated DC/DC stages.

SIRA64DP-T1-RE3 Specifications

Product attributes: Attribute value

Manufacturer:: Vishay Siliconix

Series:: TrenchFET® Gen IV

Package/Case:: PowerPAK® SO-8

Packaging:: Tape & Reel (TR)

Product Status:: Active

FET Type:: N-Channel

Technology:: MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):: 30 V

Current - Continuous Drain (Id) @ 25°C:: 60A (Tc)

Drive Voltage (Max Rds On, Min Rds On):: 4.5V, 10V

Rds On (Max) @ Id, Vgs:: 2.1mOhm @ 10A, 10V

Vgs(th) (Max) @ Id:: 2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs:: 65 nC @ 10 V

Vgs (Max):: +20V, -16V

Input Capacitance (Ciss) (Max) @ Vds:: 3420 pF @ 15 V

FET Feature:: -

Power Dissipation (Max):: 27.8W (Tc)

Operating Temperature:: -55°C ~ 150°C (TJ)

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: PowerPAK® SO-8

SIRA64DP-T1-RE3 FAQ

1.How can I place an order for SIRA64DP-T1-RE3 through Aetrix?

Please submit a Request for Quotation (RFQ) for SIRA64DP-T1-RE3 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.

2.Are the price and stock information for SIRA64DP-T1-RE3 reliable?

The price and inventory of SIRA64DP-T1-RE3 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for SIRA64DP-T1-RE3 is usually 5 days.

3.What payment methods are accepted for SIRA64DP-T1-RE3?

We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for SIRA64DP-T1-RE3 transactions.

Note: Certain payment methods may incur a processing fee.

4.How is shipping managed for SIRA64DP-T1-RE3?

SIRA64DP-T1-RE3 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.

Once your SIRA64DP-T1-RE3 order is processed, you will receive an email with the shipment details and tracking number.

Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.

5.How can I obtain technical support or documentation for SIRA64DP-T1-RE3?

For technical support, including SIRA64DP-T1-RE3 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your SIRA64DP-T1-RE3 requirements.

6.How does Aetrix verify that SIRA64DP-T1-RE3 is sourced from the original manufacturer or authorized distributors?

All SIRA64DP-T1-RE3 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that SIRA64DP-T1-RE3 meets industry standards.

7.What is the process for return or replacement of SIRA64DP-T1-RE3?

All SIRA64DP-T1-RE3 units undergo pre-shipment inspection (PSI). If there is an issue with SIRA64DP-T1-RE3, returns or replacements are accepted under the following conditions:

1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.

2.The issue is reported within 90 days of delivery.

3.The SIRA64DP-T1-RE3 part is unused and in its original packaging.

Return procedure for SIRA64DP-T1-RE3:

1.Submit a request within 90 days.

2.Obtain a Return Material Authorization (RMA) from Aetrix.
