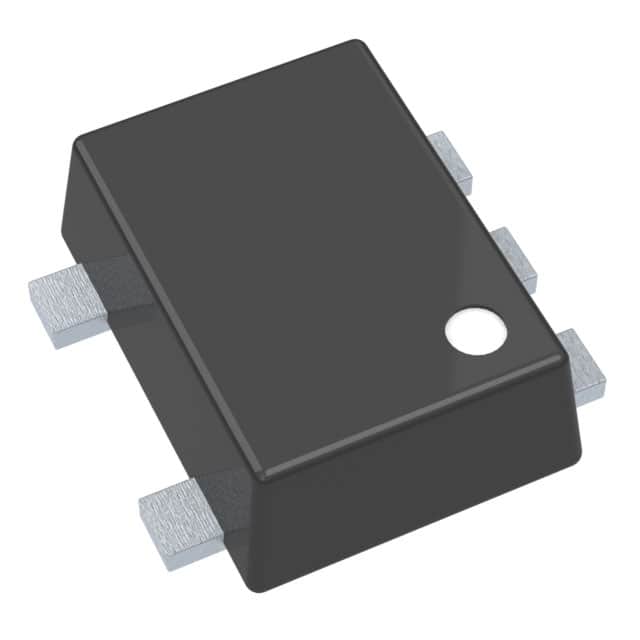

onsemi SZNUP4016P5T5G
- Part No.:
- SZNUP4016P5T5G
- Manufacturer:
- onsemi
- Category:
- TVS Diodes
- Package:
- SOT-953
- Datasheet:
-
SZNUP4016P5T5G.pdf
- Description:
- TVS DIODE 5VWM SOT953
- Quantity:
- Payment:
- Shipping:
Inventory:8,939
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
SZNUP4016P5T5G from onsemi is an ultra-low capacitance TVS diode array designed for ESD protection of high-speed data lines, featuring 0.5 pF typical junction capacitance between I/O and ground, 5.0 V reverse working voltage, and IEC 61000−4−2 ±15 kV contact ESD rating - deployed in USB 2.0 interface protection.
For engineers reviewing the SZNUP4016P5T5G datasheet, pinout, applications, or equivalent options, key selection criteria include low-capacitance signal integrity preservation, AEC−Q101 qualification for automotive use, and SOT−953 package compatibility with high-density PCB layouts.
Technical Context
This device integrates four bidirectional TVS diodes in a single SOT−953 package, configured to protect two differential data lines (e.g., D+/D−) plus power and ground. Each channel provides clamping during ESD transients while maintaining sub-0.8 pF capacitance at 1 MHz.
It operates across −40°C to +125°C junction temperature range and meets Class 3B HBM (≥16 kV) and IEC 61000−4−2 contact (±15 kV) requirements - enabling robust protection without signal distortion in USB 2.0, Gigabit Ethernet, and display interface designs.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Reverse Working Voltage | 5.0 V - ensures compatibility with 3.3 V and 5 V logic rails without leakage-induced signal degradation |
| Junction Capacitance (I/O to GND) | 0.5 pF typical - preserves signal integrity up to 480 Mbps in USB 2.0 full-speed operation |
| ESD Rating (IEC 61000−4−2) | ±15 kV contact - exceeds industrial immunity requirements for end-equipment compliance |
| Breakdown Voltage | 5.5 V at 1 mA - defines clamping onset threshold for transient suppression |
| Operating Temperature Range | −40°C to +125°C - supports under-hood automotive and industrial ambient conditions |
| AEC−Q101 Qualified | Yes - validated for automotive electronics per stress test requirements including HTGB, TCT, and ESD |
Pinout & Package
SZNUP4016P5T5G is housed in a Pb−free SOT−953 (Case 527AE) package measuring 1.00 mm × 0.80 mm × 0.37 mm with 0.35 mm pitch - optimized for space-constrained high-speed routing.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | I/O Line 1 (e.g., USB D+) | Protected signal input/output terminal with bidirectional ESD clamp to ground |
| 2 | GND | Common reference for all TVS elements; must be low-inductance connection to system ground plane |
| 3 | I/O Line 2 (e.g., USB D−) | Second protected differential signal path, matched capacitance to Pin 1 for skew control |
| 4 | VCC / Power Rail | Optional power-line protection node; clamps transients between VCC and GND |
| 5 | No Connect (NC) | Internally unconnected; left floating or tied to GND per layout best practice |
Key Features
| Feature | Design Value |
|---|---|
| Ultra-low inter-pin capacitance | 0.3–0.5 pF between I/O lines - minimizes insertion loss and timing jitter in 480 Mbps USB 2.0 links |
| Dual-channel differential line protection | Independent clamping paths for D+/D− with matched electrical characteristics - maintains common-mode noise rejection |
| AEC−Q101 qualification | Validated for automotive Grade 2 temperature range and reliability stress tests - enables direct use in infotainment and ADAS interfaces |
| UL 94 V−0 flammability rating | Self-extinguishing polymer housing - satisfies safety requirements for enclosed consumer and automotive enclosures |
Applications
| USB 2.0 Interface Protection | Gigabit Ethernet PHY Protection |
|---|---|
Use Scenario: Protecting host/device USB 2.0 D+/D− differential pair and VBUS line against ESD events during hot-plug insertion. IC Role / Device Role / Timing Role: Bidirectional TVS array providing sub-nanosecond clamping response to divert ESD current away from transceiver ICs. Use Value: 0.5 pF capacitance prevents signal rise-time degradation, preserving eye diagram margin at 480 Mbps. | Use Scenario: Safeguarding Ethernet PHY differential pairs (TX+/TX−, RX+/RX−) on board-level connectors exposed to handling ESD. IC Role / Device Role / Timing Role: Low-capacitance transient suppressor placed adjacent to RJ45 magnetics to limit voltage overshoot during ±15 kV contact discharge. Use Value: Matched channel capacitance ensures minimal skew between differential signals, maintaining signal integrity at 1.25 Gbps. |
| Automotive Infotainment Display Link | Industrial Flat Panel Monitor Interface |
Use Scenario: ESD protection for LVDS or FPD-Link II video data lanes running from head unit to center display in vehicles. IC Role / Device Role / Timing Role: AEC−Q101-qualified TVS array placed at connector entry point to absorb cable-discharge events before reaching timing-critical SerDes. Use Value: −40°C to +125°C operation supports under-dash mounting; 0.5 pF avoids pixel clock jitter accumulation. | Use Scenario: Shielding VGA or DVI TMDS channels in commercial displays from ESD during installation or maintenance. IC Role / Device Role / Timing Role: Four-channel TVS protecting two differential pairs (clock + data) with independent ground referencing. Use Value: UL 94 V−0 housing meets enclosure fire-safety standards; low leakage (<1.0 µA) prevents DC offset drift in analog sync lines. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar TVS diode array applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| ESD5Z5.0T1G | Single-channel, 0.35 pF typical capacitance, same 5.0 V VRWM but lower IEC 61000−4−2 rating (±12 kV contact) | Requires two devices for D+/D− protection; lacks integrated VCC clamp | Select when board area allows discrete placement and lower ESD margin is acceptable |
| TPD2E001DRYR | Two-channel, 0.8 pF typical capacitance, 5.5 V VRWM, supports 1.8/3.3/5 V systems | Higher capacitance may impact USB 2.0 eye opening; no AEC−Q101 qualification | Prefer for non-automotive consumer designs where footprint is constrained and AEC−Q101 not required |
Compared with ESD5Z5.0T1G and TPD2E001DRYR, SZNUP4016P5T5G uniquely delivers four-channel protection in one SOT−953 package with AEC−Q101 qualification, ±15 kV IEC 61000−4−2 rating, and 0.5 pF I/O-to-GND capacitance - making it optimal for space- and reliability-critical automotive USB and display interfaces.
Availability
SZNUP4016P5T5G is available at Aetrix Electronics and suitable for USB 2.0 interface protection, automotive infotainment systems, and industrial flat panel display designs requiring stable component supply and long-term lifecycle support.
Supply support for SZNUP4016P5T5G includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
onsemi (formerly ON Semiconductor) is a global semiconductor supplier delivering energy-efficient, high-performance silicon solutions for automotive, industrial, cloud, and consumer markets.
SZNUP4016P5T5G belongs to onsemi's transient voltage suppression portfolio, engineered specifically for high-speed serial interface protection where low capacitance, fast response, and automotive-grade reliability are mandatory.
FAQ
What is the primary function of the SZNUP4016P5T5G?
The SZNUP4016P5T5G is a quad-channel TVS diode array designed to protect high-speed data lines from electrostatic discharge (ESD) transients. Its core function is bidirectional clamping of voltage spikes on differential pairs (e.g., USB D+/D−) and power rails while maintaining ultra-low capacitance (0.5 pF typical) to avoid signal integrity degradation - critical for USB 2.0 and similar interfaces.
Is SZNUP4016P5T5G qualified for automotive applications?
Yes, SZNUP4016P5T5G is AEC−Q101 qualified and PPAP capable, with the "SZ" prefix indicating compliance for automotive and other applications requiring unique site and control change requirements. It operates over −40°C to +125°C and has passed stress tests including temperature cycling, high-temperature operating life, and ESD robustness per AEC−Q101 standards.
What does the "P5" in SZNUP4016P5T5G signify?
The "P5" in SZNUP4016P5T5G denotes the device's 5.0 V reverse working voltage (VRWM), which is the maximum continuous DC or peak operating voltage the device can withstand without entering breakdown. This rating ensures compatibility with standard 3.3 V and 5 V logic systems while allowing sufficient margin above normal signal swing.
How many protected channels does SZNUP4016P5T5G provide?
SZNUP4016P5T5G provides four protected terminals: two I/O pins (e.g., D+ and D−), one VCC pin for power rail protection, and one GND pin - arranged in a 5-pin SOT−953 package. The internal configuration supports dual differential line protection plus auxiliary power-line clamping, with one pin designated NC (no connect).
What is the junction capacitance specification for SZNUP4016P5T5G?
SZNUP4016P5T5G specifies 0.5 pF typical junction capacitance between each I/O pin and ground at VR = 0 V and f = 1 MHz. Between I/O pins (e.g., D+ to D−), capacitance is 0.3–0.5 pF typical - a key parameter enabling minimal signal distortion in 480 Mbps USB 2.0 applications and other high-speed differential interfaces.
SZNUP4016P5T5G Specifications
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Package/Case:
- SOT-953
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Type:
- Zener
- Unidirectional Channels:
- 4
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 5V (Max)
- Voltage - Breakdown (Min):
- 5.5V
- Voltage - Clamping (Max) @ Ipp:
- -
- Current - Peak Pulse (10/1000µs):
- -
- Power - Peak Pulse:
- -
- Power Line Protection:
- No
- Applications:
- -
- Capacitance @ Frequency:
- 0.5pF @ 1MHz
- Operating Temperature:
- -40°C ~ 125°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-953
SZNUP4016P5T5G FAQ
1.How can I place an order for SZNUP4016P5T5G through Aetrix?
Please submit a Request for Quotation (RFQ) for SZNUP4016P5T5G on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for SZNUP4016P5T5G reliable?
The price and inventory of SZNUP4016P5T5G are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for SZNUP4016P5T5G is usually 5 days.
3.What payment methods are accepted for SZNUP4016P5T5G?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for SZNUP4016P5T5G transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for SZNUP4016P5T5G?
SZNUP4016P5T5G orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your SZNUP4016P5T5G order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for SZNUP4016P5T5G?
For technical support, including SZNUP4016P5T5G datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your SZNUP4016P5T5G requirements.
