Vishay Siliconix 2N6660-E3
- Part No.:
- 2N6660-E3
- Manufacturer:
- Vishay Siliconix
- Category:
- FETs, MOSFETs
- Package:
- TO-205AD, TO-39-3 Metal Can
- Datasheet:
-
2N6660-E3.pdf
- Description:
- MOSFET N-CH 60V 990MA TO205AD
- Quantity:
- Payment:

- Shipping:

Inventory:5,074
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
2N6660-E3 from Vishay Siliconix is an N-channel enhancement-mode MOSFET rated for 60 V drain-source voltage, with RDS(on) = 1.3 Ω at VGS = 10 V and 1 A, low 1.7 V gate threshold, 35 pF input capacitance, and 8 ns turn-on time. It serves as a logic-level switch in solid-state relays, solenoid drivers, and battery-powered systems requiring reliable low-voltage gate drive.
For engineers reviewing the 2N6660-E3 datasheet, 2N6660-E3 pinout, 2N6660-E3 application, or 2N6660-E3 equivalent, key selection criteria include its TO-205AD (TO-39) package, military-qualified reliability, 0.99 A continuous drain current at 25 °C, and direct TTL/CMOS interface capability without buffer stages.
Technical Context
This discrete power MOSFET operates in enhancement mode with a single N-channel structure. Its gate threshold voltage of 0.8–2.0 V enables operation from standard logic outputs, while the 1.3 Ω on-resistance at 10 V gate drive supports efficient switching at up to 1 A load current.
The device features low 35 pF input capacitance and fast 8 ns turn-on/8.5 ns turn-off times under 25 Ω gate resistance, making it suitable for high-speed digital switching. Drain-source breakdown is guaranteed at ≥60 V, and the drain is internally connected to the metal case per TO-205AD mechanical specification.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VDS | 60 V - Maximum blocking voltage between drain and source; defines upper limit for circuit rail voltage |
| RDS(on) | 1.3 Ω @ VGS = 10 V, ID = 1 A - Low conduction loss enabling <1.3 W dissipation at 1 A |
| VGS(th) | 0.8–2.0 V - Ensures full enhancement with 3.3 V or 5 V logic-level gate drive |
| Ciss | 35 pF - Low input capacitance reduces gate drive power and speeds switching transitions |
| tON | 8 ns - Fast turn-on supports high-frequency PWM control up to several MHz |
| ID (cont) | 0.99 A @ TC = 25 °C - Continuous current rating limited by thermal resistance to case (20 °C/W) |
| PD | 6.25 W @ TC = 25 °C - Power handling capacity when mounted on heatsink or thermally conductive surface |
Pinout & Package

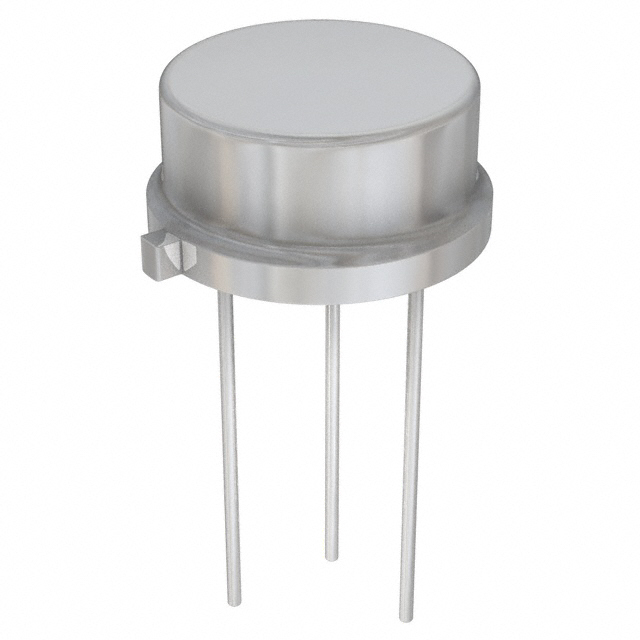

2N6660-E3 is housed in a hermetically sealed TO-205AD (TO-39 tall lid) metal can package with three leads: Drain (case-connected), Gate, and Source. The case serves as the drain terminal and must be electrically isolated from other system potentials unless intentionally used as common return.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| Lead 1 (Top View: Left) | Drain (D) | Connected directly to metal case; requires insulation from heatsink unless drain-referenced layout |
| Lead 2 (Top View: Center) | Gate (G) | High-impedance control input; sensitive to ESD; requires low-inductance gate resistor for stability |
| Lead 3 (Top View: Right) | Source (S) | Reference node for gate drive; ties to system ground or low-side return path |
Key Features
| Feature | Design Value |
|---|---|
| Military qualification (JANTX/JANTXV variants available) | Guaranteed screening and testing per MIL-PRF-19500, supporting Hi-Rel aerospace and defense systems |
| Low 1.7 V typical VGS(th) | Enables direct interface with 3.3 V or 5 V CMOS/TTL outputs without level-shifting circuitry |
| 1.3 Ω RDS(on) at 10 V | Minimizes I²R conduction loss in battery-operated loads such as relays and solenoids |
| 35 pF Ciss | Reduces required gate charge and driver power, easing implementation with microcontroller GPIOs |
| 8 ns tON, 8.5 ns tOFF | Supports clean edge transitions in pulse-width modulated (PWM) control of lamps and displays |
Applications
| Relay/Solenoid Driver | Battery-Powered Instrumentation |
|---|---|
Use Scenario: Driving 12 V DC solenoids in portable test equipment with intermittent actuation cycles. IC Role / Device Role / Timing Role: Low-side switching element controlled by MCU GPIO; handles peak currents up to 1 A. Use Value: 1.3 Ω RDS(on) limits voltage drop to <1.3 V at 1 A, preserving battery headroom and reducing thermal load. | Use Scenario: Power gating of sensor modules in handheld environmental monitors operating from Li-ion cells. IC Role / Device Role / Timing Role: Load switch enabling software-controlled power cycling to extend battery life. Use Value: 1.7 V VGS(th) ensures full turn-on even as battery voltage drops to 3.0 V, maintaining reliable cutoff. |
| Solid-State Relay Module | TTL/CMOS Direct Interface |
Use Scenario: Replacing electromechanical relays in industrial PLC output cards requiring >100 k-cycle lifetime. IC Role / Device Role / Timing Role: Main power switch isolating AC/DC loads; paired with optocoupler input stage. Use Value: Hermetic TO-205AD package provides long-term reliability and moisture resistance in harsh environments. | Use Scenario: Interfacing 5 V TTL logic outputs to 24 V lamp or display segments in legacy control panels. IC Role / Device Role / Timing Role: Level-translating switch translating logic-high to 24 V load activation. Use Value: Low 35 pF Ciss and fast 8 ns switching prevent timing skew in multi-channel synchronized lighting control. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar N-channel logic-level MOSFET applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| DMN2004LK-7 | SO-8 package, RDS(on) = 0.12 Ω @ 4.5 V, 2.8 A ID; higher current, lower voltage rating (20 V) | Surface-mount PCB layout; unsuitable for 60 V bus applications or hermetic requirements | Select for high-density SMT designs needing higher current at ≤20 V rails |
| IRF510PBF | TO-220 package, RDS(on) = 5.4 Ω @ 10 V, 5.6 A ID; higher on-resistance, higher voltage (100 V) | Higher power dissipation; requires heatsink for >0.5 A continuous use | Select when 100 V blocking is required and board space allows TO-220 mounting |
Compared with DMN2004LK-7 and IRF510PBF, the 2N6660-E3 offers unique value in through-hole, hermetically sealed, 60 V-rated logic-level switching where military-grade reliability and compact TO-39 form factor are mandatory.
Availability
2N6660-E3 is available at Aetrix Electronics and suitable for solid-state relays, solenoid drivers, and battery-operated instrumentation requiring stable component supply across extended production lifecycles.
Supply support for 2N6660-E3 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Vishay Siliconix is a global semiconductor manufacturer specializing in discrete semiconductors, passive components, and sensors, with emphasis on high-reliability and power-efficient solutions.
The 2N6660-E3 belongs to Vishay's legacy military-qualified power MOSFET product line, designed specifically for ruggedized switching in aerospace, defense, and industrial control systems demanding proven field reliability.
FAQ
What is the maximum continuous drain current for the 2N6660-E3 at 100 °C case temperature?
The 2N6660-E3 supports 0.62 A continuous drain current at TC = 100 °C, as specified in the Absolute Maximum Ratings table. This derating reflects thermal limitations due to its 20 °C/W junction-to-case thermal resistance. At higher ambient temperatures or without heatsinking, the actual usable current must be further reduced to maintain TJ ≤ 150 °C. The 2N6660-E3 datasheet confirms this value under steady-state conduction conditions.
Is the drain terminal of the 2N6660-E3 electrically connected to the metal case?
Yes, the drain terminal of the 2N6660-E3 is internally bonded to the metal case, as confirmed in the Package Information document (71367) and schematic top-view diagram. This requires electrical isolation of the mounting surface unless the drain node is intentionally referenced to chassis ground. The 2N6660-E3 TO-205AD mechanical drawing explicitly states "Drain is electrically connected to the case."
Does the 2N6660-E3 meet RoHS requirements?
Yes, the 2N6660-E3 is lead (Pb)-free and RoHS-compliant, as indicated in the Ordering Information table where "2N6660-E3" is defined as the "Commercial, Lead (Pb)-free" variant. Vishay's part numbering convention uses "-E3" suffix to denote RoHS-compliant, lead-free termination on TO-205AD packaged devices.
What is the gate-source voltage range for the 2N6660-E3?
The 2N6660-E3 has a gate-source voltage rating of ±20 V, meaning it can withstand –20 V to +20 V between gate and source without damage. Operation within ±12 V is recommended for long-term reliability. This rating is listed under Absolute Maximum Ratings and applies regardless of drain voltage. The 2N6660-E3 gate oxide is rated for this stress level per Vishay's qualified manufacturing process.
Can the 2N6660-E3 be driven directly by a 3.3 V microcontroller GPIO?
Yes, the 2N6660-E3 can be driven directly by a 3.3 V microcontroller GPIO because its gate threshold voltage VGS(th) is specified from 0.8 V to 2.0 V (typical 1.7 V), ensuring full enhancement at 3.3 V. At 3.3 V, RDS(on) increases to ~2.5 Ω (per typical curves), still sufficient for ≤400 mA loads. The 2N6660-E3 datasheet confirms low-threshold operation suitable for direct logic-level interface.
2N6660-E3 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Siliconix
- Series:
- -
- Package/Case:
- TO-205AD, TO-39-3 Metal Can
- Packaging:
- Bulk
- Product Status:
- Obsolete
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 60 V
- Current - Continuous Drain (Id) @ 25°C:
- 990mA (Tc)
- Drive Voltage (Max Rds On, Min Rds On):
- 5V, 10V
- Rds On (Max) @ Id, Vgs:
- 3Ohm @ 1A, 10V
- Vgs(th) (Max) @ Id:
- 2V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs:
- -
- Vgs (Max):
- ±20V
- Input Capacitance (Ciss) (Max) @ Vds:
- 50 pF @ 25 V
- FET Feature:
- -
- Power Dissipation (Max):
- 725mW (Ta), 6.25W (Tc)
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- TO-205AD (TO-39)
2N6660-E3 FAQ
1.How can I place an order for 2N6660-E3 through Aetrix?
Please submit a Request for Quotation (RFQ) for 2N6660-E3 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for 2N6660-E3 reliable?
The price and inventory of 2N6660-E3 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for 2N6660-E3 is usually 5 days.
3.What payment methods are accepted for 2N6660-E3?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for 2N6660-E3 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for 2N6660-E3?
2N6660-E3 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your 2N6660-E3 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for 2N6660-E3?
For technical support, including 2N6660-E3 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your 2N6660-E3 requirements.
6.How does Aetrix verify that 2N6660-E3 is sourced from the original manufacturer or authorized distributors?
All 2N6660-E3 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that 2N6660-E3 meets industry standards.
7.What is the process for return or replacement of 2N6660-E3?
All 2N6660-E3 units undergo pre-shipment inspection (PSI). If there is an issue with 2N6660-E3, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The 2N6660-E3 part is unused and in its original packaging.
Return procedure for 2N6660-E3:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
