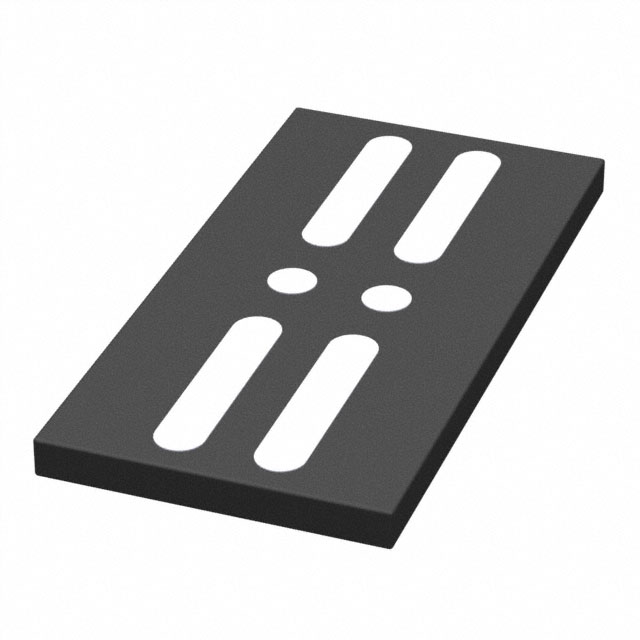

Diodes Incorporated DMN1002UCA6-7
- Part No.:
- DMN1002UCA6-7
- Manufacturer:
- Diodes Incorporated
- Category:
- FET, MOSFET Arrays
- Package:
- 6-SMD, No Lead
- Datasheet:
-
DMN1002UCA6-7.pdf
- Description:
- MOSFET 2N-CH X4-DSN3118-6
- Quantity:
- Payment:
- Shipping:
Inventory:8,991
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
DMN1002UCA6 from Diodes Incorporated is a dual N-channel enhancement-mode MOSFET in a 6-terminal CSP package, designed for high-efficiency load switching and battery protection. It delivers 2.36 mΩ RSS(ON) at VGS = 3.8 V, supports 24.4 A continuous source current at 25°C, and features integrated ESD protection on gate terminals. Its ultra-low profile (0.11 mm height) and compact 3.05 mm × 1.77 mm footprint enable use in space-constrained portable power systems.
For engineers reviewing the DMN1002UCA6 datasheet, DMN1002UCA6 pinout, DMN1002UCA6 application, or DMN1002UCA6 equivalent, key selection criteria include its dual-source configuration, sub-3 mΩ on-resistance at low gate drive (≤3.8 V), thermal resistance of 50.7°C/W under optimized layout, and qualification for battery management ICs requiring tight voltage headroom and fast transient response.
Technical Context
This device integrates two matched N-channel MOSFETs in a single X4-DSN3118-6 chip-scale package with shared gate control logic and independent source terminals. Its dual-source architecture enables synchronous rectification or back-to-back switch configurations without external paralleling.
The MOSFET operates with a gate threshold voltage of 0.35–1.4 V and maintains stable RSS(ON) across –55°C to +150°C junction temperature, supported by low Crss (198–297 pF) and Qgd (16.0–24.0 nC) for efficient high-frequency switching in DC-DC converters and smart load switches.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VSSS | 12 V - Maximum source-source blocking voltage defines safe operation in 3.3 V–12 V battery rail applications. |
| RSS(ON) Typ | 2.36 mΩ @ VGS = 3.8 V - Enables ≤90 mV conduction drop at 38 A, critical for low-voltage battery protection FETs. |
| IS Max | 24.4 A @ TA = 25°C - Sustains high pulsed load currents in USB PD and power bank output stages. |
| Qg Typ | 45.7 nC - Low total gate charge reduces driver power loss and enables use with low-current GPIO-based control. |
| RθJA | 50.7 °C/W - Achieved with minimum recommended FR-4 pad layout; enables 2.47 W power dissipation in thermally constrained PCBs. |
| VGS(TH) | 0.35–1.4 V - Ultra-low threshold supports direct interface with 1.8 V/2.5 V logic and battery-fuel-gauge ICs. |
Pinout & Package
Package: X4-DSN3118-6 - 6-terminal chip-scale package, 3.05 mm × 1.77 mm × 0.11 mm, NiPdAu-plated terminals, moisture sensitivity level 1.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | Source 1 | Primary current return path for Channel 1; electrically isolated from Source 2 for differential sensing or back-to-back topology. |
| 2 | Gate 1 | Control input for first MOSFET channel; ESD-protected to ±8 V, compatible with 1.8 V logic drive. |
| 3 | Source 1 | Second connection to same Source 1 node; reduces bondwire inductance and improves current sharing in high-di/dt paths. |
| 4 | Source 2 | Independent return path for Channel 2; enables dual-rail switching or reverse-current blocking in battery protection ICs. |
| 5 | Gate 2 | Separate gate terminal allows asynchronous control of second channel or tied to Gate 1 for parallel operation. |
| 6 | Source 2 | Redundant Source 2 connection; lowers thermal resistance and improves solder joint reliability under high-cycle stress. |
Key Features
| Feature | Design Value |
|---|---|
| Dual N-channel configuration | Two matched MOSFETs in one die enable back-to-back switch topologies for bidirectional current blocking in battery packs. |
| Ultra-low RSS(ON) at low VGS | 2.36 mΩ @ 3.8 V ensures <100 mV drop at 40 A, minimizing power loss in 5 V–12 V portable power rails. |
| 0.11 mm profile | Enables integration beneath thin-profile batteries or displays where Z-height is limited to <0.15 mm. |
| ESD-protected gate | Withstands ±8 V HBM ESD without external protection, reducing BOM count in handheld device front-end switches. |
| Halogen- and antimony-free | Meets automotive "Green" standards (<900 ppm Br/Cl, <1000 ppm Sb), supporting compliance in consumer and industrial designs. |
Applications
| Battery Protection Circuit | USB-C Power Delivery Switch |
|---|---|
|
Use Scenario: Preventing overcharge, over-discharge, and short-circuit in 2-cell Li-ion battery packs. IC Role / Device Role / Timing Role: Dual-channel MOSFET acts as back-to-back switch controlling charge/discharge path between cell stack and system load. Use Value: Sub-3 mΩ RSS(ON) minimizes voltage drop during 20 A peak discharge, preserving state-of-charge accuracy and thermal margin. |
Use Scenario: Enabling reversible 5–20 V power routing in USB-C port controllers with dead-battery support. IC Role / Device Role / Timing Role: Load switch managing VBUS path with reverse-current blocking and fast turn-on (<1.5 µs tD(ON)). Use Value: Dual-source isolation prevents backfeed from sink devices, while low Qgd ensures clean switching during PDO negotiation. |
| Smartphone Power Path Management | Wireless Charging Receiver Switch |
|
Use Scenario: Dynamic selection between wall adapter, wireless coil, and battery inputs in modern smartphones. IC Role / Device Role / Timing Role: High-side load switch isolating charging sources with minimal forward voltage drop. Use Value: 0.11 mm height fits under display flex cables; 24.4 A rating supports 30 W fast charging without derating. |
Use Scenario: Isolating Qi receiver output from battery during foreign object detection (FOD) or thermal shutdown. IC Role / Device Role / Timing Role: Bidirectional switch disconnecting power path while maintaining communication via separate data lines. Use Value: Matched dual channels allow symmetrical on-resistance in both directions, ensuring consistent FOD timing and voltage regulation. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar dual N-channel load switch applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| DMN10H260SFD-13 | Single N-channel, 2.6 mΩ @ 4.5 V, SO-8 package (4.9 × 6.0 mm), 1.75 mm height | Larger footprint and height; lacks dual-source isolation; requires external gate resistors for paralleling | Choose when board area is unconstrained and only one switch channel is needed with higher thermal mass. |
| AOB2012L | Dual N-channel, 2.2 mΩ @ 4.5 V, DFN3×3-8L package (3.0 × 3.0 mm), 0.8 mm height | 0.69 mm taller; uses standard DFN pads instead of CSP; no integrated ESD protection on gates | Prefer when existing DFN reflow profiles are standardized and external TVS diodes are already deployed. |
Compared with DMN1002UCA6, DMN10H260SFD-13 offers higher thermal mass but sacrifices space efficiency and dual-source flexibility, while AOB2012L matches on-resistance but increases Z-height by 610% and adds external ESD design overhead.
Availability
DMN1002UCA6 is available at Aetrix Electronics and suitable for battery protection circuits, USB-C power delivery switches, and smartphone power path management requiring stable component supply, tight parametric consistency, and long-term lifecycle support.
Supply support for DMN1002UCA6 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Diodes Incorporated is a global manufacturer of discrete semiconductors and analog ICs, headquartered in Plano, Texas, with design centers across Asia and manufacturing in IATF 16949-certified facilities.
This device belongs to Diodes' PowerMOS™ portfolio, engineered specifically for high-density portable power systems where ultra-low RSS(ON), minimal footprint, and robust gate drive compatibility are mandatory.
FAQ
What is the maximum continuous current rating for DMN1002UCA6 at 70°C ambient?
The DMN1002UCA6 supports 19.6 A continuous source current at TA = +70°C when VGS = 4.5 V, per the Absolute Maximum Ratings table. This derating reflects thermal limits under standard FR-4 mounting with 1-inch² copper pour, and must be validated against actual PCB layout and airflow conditions.
Can Gate 1 and Gate 2 be driven independently?
Yes - Pins 2 and 5 are electrically isolated gate terminals, allowing independent control of each channel. The datasheet's Equivalent Circuit diagram confirms separate gate connections, enabling asymmetric switching for applications like active OR-ing or programmable current limiting.
Is DMN1002UCA6 qualified for automotive applications?
No - the datasheet explicitly states that automotive-qualified versions (AEC-Q101) require special change control and PPAP capability, and this part number is not listed among Diodes' AEC-qualified MOSFETs. It is intended for industrial and consumer applications only.
What is the recommended PCB pad layout for optimal thermal performance?
Diodes specifies a minimum recommended pad layout for the X4-DSN3118-6 package on its package outline page. For 50.7°C/W RθJA, use full-solder coverage on all six terminals with thermal vias under the exposed source pads, connected to internal ground planes per IPC-7351B Type C guidelines.
DMN1002UCA6-7 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Diodes Incorporated
- Series:
- -
- Package/Case:
- 6-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Technology:
- MOSFET (Metal Oxide)
- Configuration:
- 2 N-Channel (Dual) Common Drain
- FET Feature:
- -
- Drain to Source Voltage (Vdss):
- -
- Current - Continuous Drain (Id) @ 25°C:
- -
- Rds On (Max) @ Id, Vgs:
- -
- Vgs(th) (Max) @ Id:
- -
- Gate Charge (Qg) (Max) @ Vgs:
- 68.6nC @ 4V
- Input Capacitance (Ciss) (Max) @ Vds:
- -
- Power - Max:
- 1.1W
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- X4-DSN3118-6
DMN1002UCA6-7 FAQ
1.How can I place an order for DMN1002UCA6-7 through Aetrix?
Please submit a Request for Quotation (RFQ) for DMN1002UCA6-7 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for DMN1002UCA6-7 reliable?
The price and inventory of DMN1002UCA6-7 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for DMN1002UCA6-7 is usually 5 days.
3.What payment methods are accepted for DMN1002UCA6-7?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for DMN1002UCA6-7 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for DMN1002UCA6-7?
DMN1002UCA6-7 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your DMN1002UCA6-7 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for DMN1002UCA6-7?
For technical support, including DMN1002UCA6-7 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your DMN1002UCA6-7 requirements.
6.How does Aetrix verify that DMN1002UCA6-7 is sourced from the original manufacturer or authorized distributors?
All DMN1002UCA6-7 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that DMN1002UCA6-7 meets industry standards.
7.What is the process for return or replacement of DMN1002UCA6-7?
All DMN1002UCA6-7 units undergo pre-shipment inspection (PSI). If there is an issue with DMN1002UCA6-7, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The DMN1002UCA6-7 part is unused and in its original packaging.
Return procedure for DMN1002UCA6-7:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
