Diodes Incorporated DMN1006UCA6-7
- Part No.:
- DMN1006UCA6-7
- Manufacturer:
- Diodes Incorporated
- Category:
- FET, MOSFET Arrays
- Package:
- 6-SMD, No Lead
- Datasheet:
-
DMN1006UCA6-7.pdf
- Description:
- MOSFET 2N-CH X3-DSN2718-6
- Quantity:
- Payment:

- Shipping:

Inventory:2,595
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
DMN1006UCA6 from Diodes Incorporated is an N-channel enhancement-mode MOSFET in a 6-terminal CSP package (X3-DSN2718-6), rated for 12 V VSSS, 5.3 mΩ RSS(ON) at VGS = 3.8 V and IS = 3 A, and 16.6 A continuous source current at TA = +25°C - optimized for low-voltage battery protection and load switching in space-constrained portable electronics.
For engineers reviewing the DMN1006UCA6 datasheet, DMN1006UCA6 pinout, DMN1006UCA6 application, or DMN1006UCA6 equivalent, key selection criteria include ultra-low on-resistance at 3.8 V gate drive, 0.21 mm profile for thin-profile battery packs, ESD-protected gate, and thermal resistance of 51.5 °C/W under recommended PCB layout - critical for thermally dense power path designs.
Technical Context
This MOSFET employs a trench-gate silicon process to achieve sub-6 mΩ on-resistance while maintaining fast switching via low gate charge (Qg = 35.2 nC) and minimized output capacitance (Coss = 666 pF). Its 12 V breakdown voltage and ±12 V gate rating support single-cell Li-ion and USB PD 3.0 auxiliary power rail applications.
The device operates across –55°C to +150°C junction temperature range and features integrated body diode with VFSS = 0.7–1.2 V at IS = 3 A, enabling synchronous rectification and reverse-current blocking in bidirectional battery management paths without external diodes.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VSSS | 12 V - Maximum source-source blocking voltage for single-cell Li-ion (4.2 V) and 5 V USB systems with margin. |
| RSS(ON) | 5.3 mΩ @ VGS = 3.8 V, IS = 3 A - Enables <17 mW conduction loss at 10 A, critical for >95% efficiency in compact load switches. |
| IS (Cont.) | 16.6 A @ TA = +25°C - Supports high-pulse current demands in battery protection ICs during short-circuit events. |
| Qg | 35.2 nC @ VSS = 6 V, IS = 18 A - Determines gate driver sizing and switching loss in 1–3 MHz DC-DC controllers. |
| RθJA | 51.5 °C/W - Achieved with minimum FR-4 pad layout; enables 2.4 W power dissipation without heatsink in handheld form factors. |
| VGS(TH) | 0.5–1.3 V - Ensures turn-on compatibility with 1.8 V/3.3 V logic and low-voltage microcontrollers in battery-fuel-gauge interfaces. |
Pinout & Package

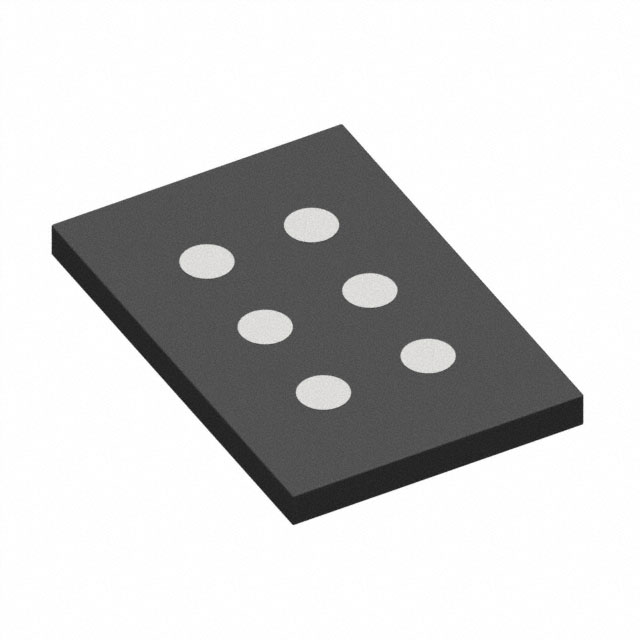

Package: X3-DSN2718-6 - 2.70 mm × 1.81 mm × 0.21 mm chip-scale package with NiPdAu-plated terminals, moisture sensitivity level 1, and 0.0026 g mass.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| S1 | Source 1 | Primary current return path; electrically tied to S2/S3 for parallel low-inductance source connection. |
| G1 | Gate 1 | Main control terminal; ESD-protected input requiring ≤±12 V drive per datasheet absolute maximum ratings. |
| S2 | Source 2 | Secondary source terminal; used with S1/S3 to reduce package inductance and improve current sharing in high-di/dt switching. |
| G2 | Gate 2 | Redundant gate terminal; internally connected to G1 - provides alternate routing option for high-density PCB layouts. |
| S3 | Source 3 | Third source terminal; completes 3-point source configuration to minimize RDS(on) contribution from bond wire resistance. |
| E | Exposed Drain Pad | Thermal and electrical drain connection; must be soldered to PCB copper pour for thermal performance and safe operation. |
Key Features
| Feature | Design Value |
|---|---|
| Ultra-low profile | 0.21 mm height - fits beneath 0.3 mm display bezels and within slim smartwatch battery compartments. |
| CSP footprint | 2.70 mm × 1.81 mm - occupies 4.9 mm² area, ~35% smaller than comparable SO-8 or TSOP-6 MOSFETs. |
| ESD-protected gate | HBM ≥2 kV - eliminates need for external gate protection in consumer-grade battery packs exposed to handling discharge. |
| Lead-free & green | RoHS 3 compliant, halogen/antimony free (<900 ppm Br+Cl, <1000 ppm Sb) - meets automotive and medical OEM environmental mandates. |
Applications
| Battery Protection Circuit | USB-C Power Delivery Load Switch |
|---|---|
Use Scenario: Real-time overcurrent and overtemperature cutoff in 1S Li-ion battery packs for wireless earbuds and wearables. IC Role / Device Role / Timing Role: Primary power FET in dual-MOSFET protection IC configuration, controlled by dedicated fuel gauge IC. Use Value: 5.3 mΩ RSS(ON) limits voltage drop to <53 mV at 10 A, preserving battery runtime and enabling accurate coulomb counting. | Use Scenario: Hot-swap enable/disable of 5 V/3 A USB-C VBUS supply to peripheral modules in docking stations. IC Role / Device Role / Timing Role: Low-side load switch driven by USB PD controller GPIO with soft-start timing managed externally. Use Value: 35.2 nC Qg supports <10 µs turn-on delay, meeting USB-C specification for <20 ms power ramp-up. |
| Smartphone Backlight Dimming | Portable Medical Sensor Power Gate |
Use Scenario: PWM-controlled current sink for white LED strings in OLED display edge lighting. IC Role / Device Role / Timing Role: Synchronous buck converter low-side switch operating at 1–2 MHz switching frequency. Use Value: Ciss = 2360 pF and Crss = 325 pF minimize Miller effect, enabling clean 10 ns rise/fall edges at 1.8 V gate drive. | Use Scenario: Isolated power gating for ECG/PPG sensor analog front-end during standby to reduce quiescent current. IC Role / Device Role / Timing Role: Always-on, low-leakage power switch controlled by microcontroller wake-up interrupt. Use Value: ISSS ≤1 µA at VSS = 10 V ensures <100 nA system-level standby current, extending 3-year coin-cell life. |
Availability
DMN1006UCA6 is available at Aetrix Electronics and suitable for battery protection circuits, USB-C load switching, and portable medical sensor power gating requiring stable component supply, long-term lifecycle assurance, and RoHS 3-compliant sourcing.
Supply support for DMN1006UCA6 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Diodes Incorporated is a global manufacturer of discrete semiconductors and analog ICs, specializing in high-efficiency power management, signal integrity, and protection solutions for consumer, industrial, and automotive markets.
The DMN1006UCA6 belongs to Diodes' Ultra-Low RDS(on) CSP MOSFET product line, engineered specifically for space- and thermally constrained battery-powered devices where on-resistance, profile height, and gate drive compatibility are primary design constraints.
FAQ
What is the maximum continuous drain current at 70°C ambient?
At TA = +70°C, the DMN1006UCA6 supports 13.2 A continuous source current when VGS = 4.5 V, as specified in the Absolute Maximum Ratings table. This derating reflects thermal limitations under standard FR-4 PCB conditions with 1 in² copper area.
Does this MOSFET require external gate resistors for EMI control?
No external gate resistor is required for basic operation due to its low Qg and optimized internal structure. However, a 1–5 Ω series resistor is recommended in high-di/dt applications (>5 A/ns) to dampen ringing and meet CISPR-22 Class B emissions limits in portable designs.
Can DMN1006UCA6 be used in automotive AEC-Q101 qualified designs?
The DMN1006UCA6 is not AEC-Q101 qualified. Diodes Incorporated offers AEC-Q101 variants (e.g., DMN1006UCB6) with PPAP documentation and IATF 16949 manufacturing; contact Diodes sales for automotive-grade alternatives with full qualification data.
How is thermal performance affected if the exposed drain pad is not soldered?
Leaving the exposed drain pad (Terminal E) unsoldered increases RθJA from 51.5 °C/W to 124.6 °C/W, reducing allowable power dissipation from 2.4 W to 1.0 W. Full thermal performance requires soldering Terminal E to a minimum 100 mm² PCB copper pour with ≥4 thermal vias.
