Diodes Incorporated DMP2077UCA3-7
- Part No.:
- DMP2077UCA3-7
- Manufacturer:
- Diodes Incorporated
- Category:
- FETs, MOSFETs
- Package:
- 3-XFDFN
- Datasheet:
-
DMP2077UCA3-7.pdf
- Description:
- MOSFET P-CH 20V 4A X4-DSN1006-3
- Quantity:
- Payment:
- Shipping:
Inventory:9,250
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
DMP2077UCA3 from Diodes Incorporated is a P-channel enhancement-mode MOSFET in a 1.0 mm × 0.6 mm DSN1006-3 package, rated for -20 V VDSS, 78 mΩ RDS(ON) at VGS = -8 V, and -4.0 A continuous drain current at TA = +25°C. It serves as a compact load switch or battery protection device in space-constrained mobile power rails.
For engineers reviewing the DMP2077UCA3 datasheet, DMP2077UCA3 pinout, DMP2077UCA3 application, or DMP2077UCA3 equivalent, key selection criteria include its ultra-low profile (0.20 mm height), low gate charge (Qg = 1.34 nC), and guaranteed RDS(ON) performance down to -55°C junction temperature - critical for portable battery management and always-on power domains.
Technical Context
This MOSFET operates in enhancement mode with a gate threshold voltage of -0.85 V (typical), enabling reliable turn-on from standard logic-level negative gate drive. Its low output capacitance (Coss = 76 pF) and fast switching times (tF = 5.4 ns) support high-frequency load switching up to several MHz in DC-DC post-regulation and USB port power control.
The device integrates an intrinsic body diode with VSD = -0.73 V (typical) at IS = -0.5 A and exhibits normalized RDS(ON) variation of ≤1.4× across -55°C to +150°C, confirming stable conduction in thermally aggressive handheld environments.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VDSS | -20 V - Maximum blocking voltage for battery-side high-side switching in 3.3 V/5 V systems |
| RDS(ON) | 78 mΩ @ VGS = -8 V - Enables <150 mW conduction loss at 3.5 A, suitable for low-voltage load switching |
| ID (cont) | -4.0 A @ TA = +25°C - Supports peak load currents in portable power distribution without derating on minimal PCB copper |
| Qg | 1.34 nC - Reduces gate drive power and enables efficient operation with low-current GPIOs or dedicated drivers |
| Package | X4-DSN1006-3 - 1.0 mm × 0.6 mm × 0.20 mm footprint ideal for <10 mm² PCB area budgets in smartphones and wearables |
| TJ Range | -55°C to +150°C - Validated operation across industrial and automotive cabin temperature extremes |
Pinout & Package

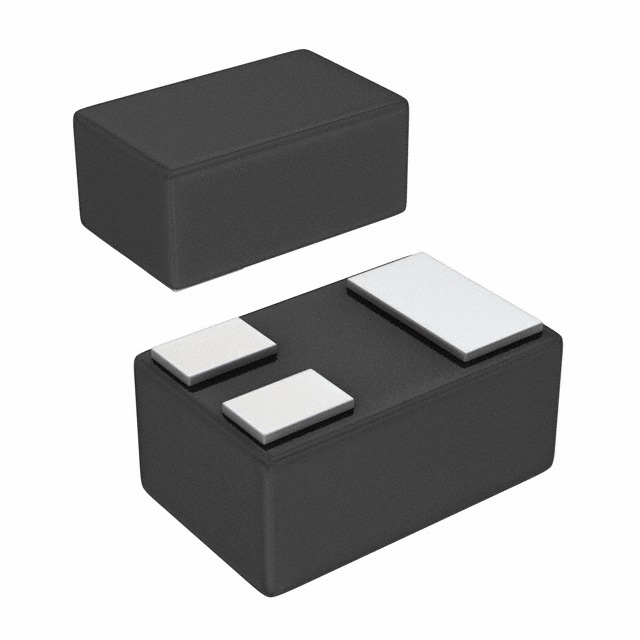

Package: X4-DSN1006-3 - ultra-thin, leadless, three-terminal surface-mount package with NiPdAu-plated terminals and moisture sensitivity level 1.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 (Source) | Source terminal (P-channel) | Connected to higher-potential rail (e.g., battery anode); provides return path for load current |
| 2 (Drain) | Drain terminal (P-channel) | Connected to load; voltage swing limited to ≤|VDSS| = 20 V below source potential |
| 3 (Gate) | Control input | Receives negative VGS relative to source to turn on; threshold centered at -0.85 V for predictable logic compatibility |
Key Features
| Feature | Design Value |
|---|---|
| Low-profile packaging | 0.20 mm max height - eliminates mechanical interference under stacked flex circuits and thin metal shields |
| Low Qg & Qgd | Qg = 1.34 nC, Qgd = 0.15 nC - minimizes switching energy and improves EMI behavior in dense RF layouts |
| Thermally robust RDS(ON) | ≤1.4× variation from -55°C to +150°C - ensures consistent current handling across operating envelope |
| Green construction | Halogen- and antimony-free, RoHS 3 compliant - meets strict environmental requirements for global consumer electronics |
Applications
| Battery Protection Circuit | USB Type-C Port Power Switch |
|---|---|
Use Scenario: Overvoltage and overcurrent cutoff in single-cell Li-ion battery packs. IC Role / Device Role / Timing Role: High-side P-channel MOSFET acting as reverse-polarity and charge/discharge path controller. Use Value: 78 mΩ RDS(ON) limits voltage drop to <300 mV at 3.5 A, preserving battery runtime and thermal margin. | Use Scenario: VBUS enable/disable per USB PD specification in portable accessories. IC Role / Device Role / Timing Role: Load switch isolating downstream 5 V rail during fault or standby. Use Value: 1.34 nC Qg allows clean 100 µs turn-on/off transitions using standard microcontroller GPIOs. |
| Smartphone Power-Rail Sequencing | Wireless Earbud Charging Case |
Use Scenario: Controlled power-up of PMIC subsystems after system reset. IC Role / Device Role / Timing Role: Low-footprint sequencing switch enabling staggered voltage ramp-up. Use Value: 1.0 mm × 0.6 mm outline fits within tight spacing between baseband IC and battery connector. | Use Scenario: Isolating charging circuitry from earbud battery during storage or firmware update. IC Role / Device Role / Timing Role: Low-leakage (IDSS ≤ -100 nA) hold-off switch preventing self-discharge. Use Value: -100 nA IDSS at -16 V ensures <1 µA quiescent loss over 6-month shelf life. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar P-channel load switch applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| DMN2077LFG-7 | Same X4-DSN1006-3 package but N-channel; requires high-side driver or charge pump | Not directly substitutable without gate drive redesign; better for low-side switching topologies | Select only if existing design uses N-channel high-side configuration with integrated driver |
| AO3415 | SO-8 package (4.9 mm × 6.0 mm); RDS(ON) = 50 mΩ @ VGS = -10 V; larger footprint and height | Acceptable where board space permits and lower RDS(ON) justifies size penalty | Choose when thermal budget demands <50 mΩ and PCB real estate is unconstrained |
Compared with DMN2077LFG-7 and AO3415, DMP2077UCA3 uniquely delivers logic-compatible P-channel switching in the smallest industry-standard footprint, eliminating need for external level shifters while maintaining sub-0.2 mm profile - essential for next-generation ultra-thin mobile devices.
Availability
DMP2077UCA3 is available at Aetrix Electronics and suitable for battery management, load switching, and portable electronics requiring stable component supply with full traceability and long-term lifecycle support.
Supply support for DMP2077UCA3 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Diodes Incorporated is a global manufacturer of discrete semiconductors and analog ICs, headquartered in Plano, Texas, with design, manufacturing, and sales operations across Asia, Europe, and the Americas.
The DMP2077UCA3 belongs to Diodes' X4-DSN ultra-compact MOSFET product line, engineered specifically for space- and height-constrained battery-powered applications where minimal PCB area and thermal efficiency are primary design constraints.
FAQ
What is the maximum safe operating junction temperature for DMP2077UCA3?
The absolute maximum junction temperature is +150°C, and the device is characterized for RDS(ON) stability across this full range. Thermal resistance RθJA is 197°C/W on FR-4 with minimum pad layout, meaning 0.66 W power dissipation raises junction temperature by ~130°C above ambient - thus limiting practical continuous use to ≤+25°C ambient unless enhanced cooling is applied.
Does DMP2077UCA3 require a gate resistor for typical GPIO-driven switching?
A series gate resistor is recommended to dampen ringing and limit peak gate current, especially at >1 MHz switching. With Qg = 1.34 nC and typical MCU GPIO drive strength (~20 mA), a 10 Ω resistor yields ~67 ns RC time constant - sufficient for clean edges without excessive delay. No resistor is strictly required for DC on/off control.
Can DMP2077UCA3 be used in automotive cabin applications?
While DMP2077UCA3 meets AEC-Q200 passive stress testing requirements and is manufactured in IATF 16949-certified facilities, it is not officially AEC-Q101 qualified. For production automotive cabin use (e.g., infotainment power rails), Diodes recommends contacting their automotive team for PPAP-capable variants such as the AEC-Q101-compliant DMP2077UCA3-A.
How does the body diode forward voltage affect reverse-current protection?
VSD = -0.73 V (typical) at -0.5 A means the intrinsic body diode conducts with ~730 mV forward drop when reverse-biased - useful for reverse-polarity protection but insufficient alone for high-efficiency back-powering prevention. For true bidirectional blocking, a second MOSFET or dedicated protection IC must be added in series.
DMP2077UCA3-7 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Diodes Incorporated
- Series:
- -
- Package/Case:
- 3-XFDFN
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- FET Type:
- P-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 20 V
- Current - Continuous Drain (Id) @ 25°C:
- 4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):
- 1.5V, 8V
- Rds On (Max) @ Id, Vgs:
- 78mOhm @ 500mA, 8V
- Vgs(th) (Max) @ Id:
- 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:
- 1.34 nC @ 4.5 V
- Vgs (Max):
- ±12V
- Input Capacitance (Ciss) (Max) @ Vds:
- 143 pF @ 10 V
- FET Feature:
- -
- Power Dissipation (Max):
- 660mW
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- X4-DSN1006-3
DMP2077UCA3-7 FAQ
1.How can I place an order for DMP2077UCA3-7 through Aetrix?
Please submit a Request for Quotation (RFQ) for DMP2077UCA3-7 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for DMP2077UCA3-7 reliable?
The price and inventory of DMP2077UCA3-7 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for DMP2077UCA3-7 is usually 5 days.
3.What payment methods are accepted for DMP2077UCA3-7?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for DMP2077UCA3-7 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for DMP2077UCA3-7?
DMP2077UCA3-7 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your DMP2077UCA3-7 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for DMP2077UCA3-7?
For technical support, including DMP2077UCA3-7 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your DMP2077UCA3-7 requirements.
6.How does Aetrix verify that DMP2077UCA3-7 is sourced from the original manufacturer or authorized distributors?
All DMP2077UCA3-7 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that DMP2077UCA3-7 meets industry standards.
7.What is the process for return or replacement of DMP2077UCA3-7?
All DMP2077UCA3-7 units undergo pre-shipment inspection (PSI). If there is an issue with DMP2077UCA3-7, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The DMP2077UCA3-7 part is unused and in its original packaging.
Return procedure for DMP2077UCA3-7:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
