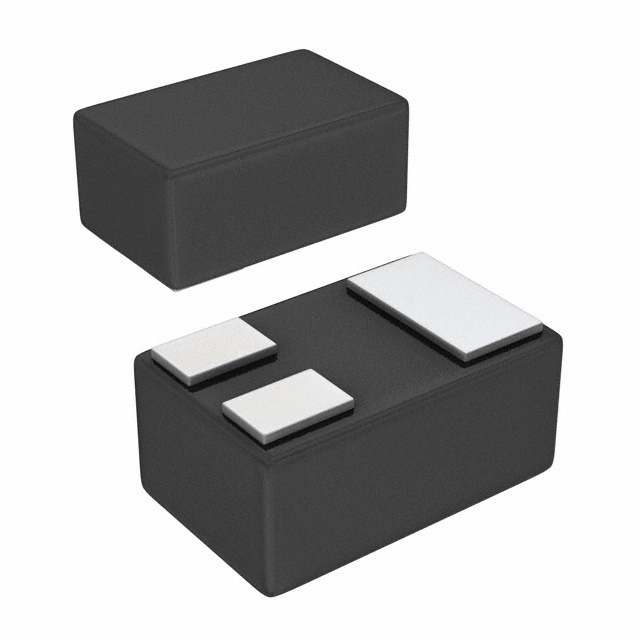

Diodes Incorporated DMP2088LCP3-7
- Part No.:
- DMP2088LCP3-7
- Manufacturer:
- Diodes Incorporated
- Category:
- FETs, MOSFETs
- Package:
- 3-XFDFN
- Datasheet:
-
DMP2088LCP3-7.pdf
- Description:
- MOSFET P-CH 20V 2.9A X2DSN1006-3
- Quantity:
- Payment:
- Shipping:
Inventory:4,218
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
DMP2088LCP3 from Diodes Incorporated is a P-channel enhancement-mode MOSFET optimized for compact load switching in battery-powered systems, featuring -20V VDSS, 88mΩ RDS(ON) @ VGS = -8V, -2.9A continuous drain current at 25°C, and X2-DSN1006-3 package with 0.30mm profile - used in handheld device battery protection circuits.
For engineers reviewing the DMP2088LCP3 datasheet, DMP2088LCP3 pinout, DMP2088LCP3 application, or DMP2088LCP3 equivalent, key selection criteria include low gate charge (Qg = 1.5nC), thermal resistance (RθJA = 217°C/W on FR-4), and -55°C to +150°C operating range for space-constrained portable electronics.
Technical Context
This MOSFET operates as a high-side load switch in battery management paths, leveraging its negative threshold voltage (-0.7V to -1.2V) and low RDS(ON) to minimize conduction loss during active discharge control. Its gate drive compatibility with 3.3V/5V logic enables direct interface with microcontroller GPIOs without level-shifting.
The device integrates a body diode with VSD = -0.75V @ IS = -0.5A and QRR = 1.0nC, supporting bidirectional current handling in reverse-polarity protection and charge path isolation. Transient thermal response is characterized by RθJA(t) curves for pulse-width-dependent power dissipation up to 15A IDM.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VDSS | -20V - maximum blocking voltage for battery-side high-side switching in 3.7V Li-ion systems with headroom margin |
| RDS(ON) | 88mΩ @ VGS = -8V - ensures ≤220mW conduction loss at 1.5A load current in portable applications |
| ID (continuous) | -2.9A @ TA = +25°C - supports sustained operation in USB-C PD sink detection and smart battery cutoff circuits |
| Qg | 1.5nC - enables fast turn-on/off with minimal gate driver power, critical for PWM-controlled load switching |
| RθJA | 217°C/W - defines thermal derating on standard FR-4 PCB; limits usable DC current to ~1.1A at ambient 60°C |
| VGS(TH) | -1.0V typical - allows full enhancement with 1.8V–3.3V logic-level gate drive, eliminating need for charge pumps |
| Package | X2-DSN1006-3 - 1.0mm × 0.6mm footprint with 0.30mm height, enabling placement under thin-film shields in smartphones |
Pinout & Package
Package: X2-DSN1006-3 - ultra-thin, leadless, three-terminal surface-mount package with exposed drain pad for thermal relief.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 (Source) | Current return path for load current | Connected to system ground or battery negative; ties to internal substrate for lowest inductance source loop |
| 2 (Gate) | Control electrode for channel modulation | High-impedance input requiring <50nA leakage; routed away from noisy digital traces to prevent false turn-on |
| 3 (Drain) | Main current path from load to battery positive | Exposed copper pad on bottom surface - must be soldered to large thermal pad for effective heat spreading |
Key Features
| Feature | Design Value |
|---|---|
| Low Qg & Qgd | Qg = 1.5nC, Qgd = 0.22nC - reduces switching energy loss and EMI during fast transitions in portable PMICs |
| 0.30mm profile | Height constraint met for stacked PCB assemblies in wearables and hearing aids where Z-space is ≤0.4mm |
| Lead-free & Halogen-free | Meets RoHS 3 (2015/863/EU) and Diodes "Green" definition (<900ppm Br+Cl, <1000ppm Sb) for eco-compliant consumer designs |
| Small footprint | 1.0mm × 0.6mm outline - occupies 40% less board area than comparable SOT-23-3 devices, freeing routing space in dense layouts |
| Low RDS(ON) at low VGS | 105mΩ @ VGS = -4.5V - enables efficient operation directly from single-cell Li-ion (3.0–4.2V) without auxiliary bias rails |
Applications
| Battery Protection Circuit | USB-C Port Power Switching |
|---|---|
|
Use Scenario: Prevents reverse-current flow and over-discharge in single-cell Li-ion packs during standby or fault conditions. IC Role / Device Role / Timing Role: High-side MOSFET acting as bidirectional blocking switch controlled by battery fuel gauge IC or protection ASIC. Use Value: 88mΩ RDS(ON) limits voltage drop to <130mV at 1.5A, preserving battery cutoff accuracy and extending shelf life. |
Use Scenario: Enables/disables VBUS power delivery to peripheral devices in dual-role USB-C ports on tablets and laptops. IC Role / Device Role / Timing Role: Load switch isolating downstream power rail; driven by USB controller GPIO with 100ns turn-off delay. Use Value: 17ns tD(OFF) and 6ns tF support rapid port reconfiguration during role swap without bus glitching. |
| Smartphone Backlight Dimming | Wireless Earbud Charging Case |
|
Use Scenario: Controls current to white LED strings in AMOLED display backlight modules using PWM dimming. IC Role / Device Role / Timing Role: Low-side or high-side current regulator modulated at 1–20kHz; body diode handles freewheeling. Use Value: QRR = 1.0nC and tRR = 5.7ns minimize switching loss and audible coil whine during PWM transitions. |
Use Scenario: Isolates charging circuitry from main battery when earbuds are docked, preventing parasitic drain during storage. IC Role / Device Role / Timing Role: Always-on load switch managed by low-power MCU; remains latched off until insertion detection. Use Value: IDSS = -100nA max at -16V ensures <1μA quiescent current, extending case runtime by >3 months per full charge. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar P-channel load switch applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| DMP2078LCA3 | Lower RDS(ON) (60mΩ @ -8V), same X2-DSN1006-3 package, but higher Qg (2.2nC) | Better conduction efficiency at high current; slightly slower switching due to increased gate charge | Select when minimizing I²R loss dominates over switching speed, e.g., always-on battery disconnect |
| DMG2305UVT-7 | Same -20V rating, larger SOT-523 package (1.7mm × 0.9mm), 50mΩ RDS(ON) @ -4.5V, higher thermal resistance (300°C/W) | Higher power handling on thermally robust boards; incompatible with ultra-thin Z-height constraints | Choose when board layout permits larger footprint and thermal performance outweighs size requirements |
Compared with DMP2088LCP3, DMP2078LCA3 improves conduction loss but trades off switching speed, while DMG2305UVT-7 sacrifices miniaturization for lower RDS(ON) and higher current capability - selection depends on whether board area, thermal budget, or efficiency is the dominant constraint.
Availability
DMP2088LCP3 is available at Aetrix Electronics and suitable for battery management, load switching, and battery protection applications requiring stable component supply despite its obsolete status - inventory is maintained for legacy design continuity and repair programs.
Supply support for DMP2088LCP3 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Diodes Incorporated is a global manufacturer of discrete semiconductors and analog ICs, headquartered in Plano, Texas, with design centers across Asia and manufacturing in ASE, J-Devices, and its own facilities.
This MOSFET belongs to Diodes' X2-DSN ultra-small signal FET product line, engineered specifically for footprint-sensitive mobile and wearable electronics where board area and profile are primary constraints.
FAQ
Is DMP2088LCP3 still in production?
No - Diodes Incorporated officially discontinued DMP2088LCP3 in 2022, marking it as obsolete with no new wafer starts. However, Aetrix Electronics maintains legacy stock for last-time buy, repair, and long-lifecycle industrial programs with full traceability and date-code verification.
What is the recommended replacement for DMP2088LCP3?
Diodes recommends DMP2078LCA3 as the direct functional replacement: same X2-DSN1006-3 package, improved RDS(ON) (60mΩ vs. 88mΩ @ -8V), and identical pinout. It requires no layout change and supports identical gate drive voltages, making it a drop-in upgrade for most applications.
Can DMP2088LCP3 be used in automotive applications?
No - DMP2088LCP3 is not AEC-Q101 qualified and lacks PPAP documentation or IATF 16949 manufacturing certification. For automotive-grade P-channel switches, Diodes offers the DMP2065UQ (AEC-Q101 qualified) in comparable small-outline packages with extended temperature validation.
What is the maximum safe operating temperature for DMP2088LCP3?
The absolute maximum junction temperature is +150°C, but sustained operation above +125°C degrades reliability. With RθJA = 217°C/W on FR-4, the practical maximum ambient temperature is +60°C at 1.0A continuous drain current - thermal derating must follow Figure 11 SOA curves for pulsed loads.
DMP2088LCP3-7 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Diodes Incorporated
- Series:
- -
- Package/Case:
- 3-XFDFN
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- FET Type:
- P-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 20 V
- Current - Continuous Drain (Id) @ 25°C:
- 2.9A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):
- 1.8V, 8V
- Rds On (Max) @ Id, Vgs:
- 88mOhm @ 500mA, 8V
- Vgs(th) (Max) @ Id:
- 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:
- 1.5 nC @ 4.5 V
- Vgs (Max):
- -12V
- Input Capacitance (Ciss) (Max) @ Vds:
- 160 pF @ 10 V
- FET Feature:
- -
- Power Dissipation (Max):
- 1.13W
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- X2-DSN1006-3
DMP2088LCP3-7 FAQ
1.How can I place an order for DMP2088LCP3-7 through Aetrix?
Please submit a Request for Quotation (RFQ) for DMP2088LCP3-7 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for DMP2088LCP3-7 reliable?
The price and inventory of DMP2088LCP3-7 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for DMP2088LCP3-7 is usually 5 days.
3.What payment methods are accepted for DMP2088LCP3-7?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for DMP2088LCP3-7 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for DMP2088LCP3-7?
DMP2088LCP3-7 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your DMP2088LCP3-7 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for DMP2088LCP3-7?
For technical support, including DMP2088LCP3-7 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your DMP2088LCP3-7 requirements.
6.How does Aetrix verify that DMP2088LCP3-7 is sourced from the original manufacturer or authorized distributors?
All DMP2088LCP3-7 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that DMP2088LCP3-7 meets industry standards.
7.What is the process for return or replacement of DMP2088LCP3-7?
All DMP2088LCP3-7 units undergo pre-shipment inspection (PSI). If there is an issue with DMP2088LCP3-7, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The DMP2088LCP3-7 part is unused and in its original packaging.
Return procedure for DMP2088LCP3-7:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
