Diodes Incorporated DMP3018SFK-7

Part No.:
DMP3018SFK-7
Manufacturer:
Diodes Incorporated
Category:
FETs, MOSFETs
Package:
6-PowerUDFN
Datasheet:
AetrixDMP3018SFK-7.pdf
Description:
MOSFET P-CH 30V 10.2A 6UDFN
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:2,588

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity*
Price
Name*
Company
Email*
Comments

Product details

Overview

DMP3018SFK-7 from Diodes Incorporated is a P-channel enhancement-mode MOSFET in a U-DFN2523-6 package, rated for -30V VDS, 14.5mΩ RDS(on) at VGS = -10V, and -10.2A continuous drain current at TA = +25°C. It integrates ESD-protected gate and low input capacitance (Ciss = 2207pF typ), targeting high-efficiency load switching in compact DC-DC converters.

For engineers reviewing the DMP3018SFK-7 datasheet, DMP3018SFK-7 pinout, DMP3018SFK-7 application, or DMP3018SFK-7 equivalent, key selection criteria include verified -30V breakdown voltage, gate-threshold range (-1.0 to -3.0V), thermal resistance (RθJA = 55°C/W with thermal vias), and body diode forward voltage (-0.7V typ at -1A).

Technical Context

This MOSFET operates as a high-side or low-side load switch with fully specified avalanche energy (EAS = 104mJ) and pulsed drain capability (-80A, 10µs). Its gate threshold voltage (VGS(th) = -1.6V typ) ensures reliable turn-on with standard logic-level drive down to -4.5V.

The device features integrated gate protection diode and NiPdAu-plated terminals for robust solderability. Its U-DFN2523-6 footprint supports high-density PCB layouts while maintaining 123°C/W RθJA on minimal FR-4 pad layout or 55°C/W with thermal vias-enabling stable operation up to +150°C junction temperature.

Key Specifications

Parameter Value and Actual Design Meaning
VDS Rating -30V - Supports rail-to-rail switching in 24V industrial and automotive subsystems without derating.
RDS(on) @ VGS = -10V 9.5–14.5mΩ - Enables <100mW conduction loss at 10A, critical for thermally constrained load switches.
Continuous ID -10.2A @ TA = +25°C - Sustains full-rated current with 2oz copper + thermal vias per JEDEC J-STD-020 Level 1.
Ciss 2207–4414pF - Low input capacitance reduces gate drive power and speeds switching in high-frequency DC-DC controllers.
VGS(th) -1.0 to -3.0V - Ensures guaranteed turn-on with 3.3V/5V microcontroller GPIO or dedicated PMIC gate drivers.
Qg @ VGS = -10V 42.7–90nC - Defines minimum gate driver current requirement (~1.5mA avg for 1MHz switching).
EAS 104mJ - Withstands single-pulse inductive energy in hot-swap and e-fuse applications without failure.

Pinout & Package

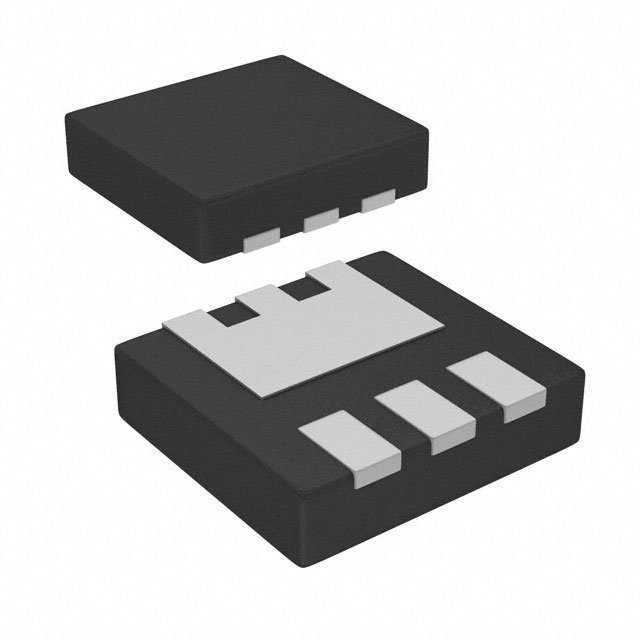

U-DFN2523-6 surface-mount package: 2.5mm × 2.3mm × 0.6mm profile, molded green compound (UL 94V-0), NiPdAu-plated copper leadframe, moisture sensitivity Level 1.

Pin/Terminal Circuit Role Design Meaning
Pin 1, 2 Source Common return path for load current; electrically tied to exposed thermal pad for enhanced heat dissipation.
Pin 3 Gate Control terminal with integrated ESD protection diode; requires ≤±25V bias to avoid permanent damage.
Pins 4, 5, 6 Drain Main power output node; all three pins paralleled internally to reduce current density and thermal stress.

Key Features

Feature Design Value
Low RDS(on) at -4.5V 15–25.5mΩ enables direct control from 5V logic or USB-powered systems without level-shifting.
ESD-Protected Gate Integrated diode structure withstands ≥2kV HBM per AEC-Q101, eliminating need for external gate protection.
Low Coss & Crss 390–780pF Coss, 343–686pF Crss minimize Miller effect and improve hard-switching efficiency.
AEC-Q101 Qualified Stress-tested for automotive-grade reliability including temperature cycling, HTOL, and ESD-valid for under-hood use.
Green RoHS Compliance Halogen- and antimony-free (<900ppm Br/Cl, <1000ppm Sb); meets EU Directive 2011/65/EU without exemptions.

Applications

USB Power Delivery Switch Industrial PLC Output Stage

Use Scenario: Hot-swap insertion of USB-C peripherals with overcurrent and reverse-polarity protection.

IC Role / Device Role / Timing Role: High-side load switch controlling 5–20V bus with fast fault response via integrated body diode and low Qg.

Use Value: 14.5mΩ RDS(on) limits voltage drop to <150mV at 10A, preserving PD negotiation signaling integrity.

Use Scenario: Solid-state replacement for electromechanical relays in 24V DC output modules.

IC Role / Device Role / Timing Role: Low-side or high-side switching element driven by isolated microcontroller GPIO with 100ns turn-off fall time.

Use Value: 104mJ avalanche rating absorbs inductive kickback from solenoid loads without snubber circuits.

Automotive Body Control Module Point-of-Load Regulator Enable

Use Scenario: Controlling LED lighting zones and window lift motors in AEC-Q101-compliant BCM designs.

IC Role / Device Role / Timing Role: P-channel MOSFET used in high-side configuration with internal gate protection for 12V battery rail switching.

Use Value: -30V VDS rating accommodates load-dump transients up to ±35V per ISO 7637-2, ensuring system survival.

Use Scenario: Enabling/disabling buck converter outputs in multi-rail embedded systems (e.g., FPGA core/memory supplies).

IC Role / Device Role / Timing Role: Load switch placed between controller IC and power stage to implement sequencing and inrush limiting.

Use Value: 25.5mΩ RDS(on) at -4.5V allows direct interface with 3.3V PMIC enable signals, eliminating external level shifters.

Equivalent & Alternatives

The following parts are listed as comparable options for similar P-channel load switch applications.

Alternative Part Technical Difference Application Difference Selection Advice
DMG3415L-7 Higher RDS(on) (20mΩ @ -4.5V), larger U-DFN2020-6 package (2.0×2.0mm), no AEC-Q101 qualification. Limited to commercial-temperature consumer power rails; unsuitable for automotive or extended-temp industrial use. Select only if board space is tighter than 2.5×2.3mm and AEC-Q101 compliance is not required.
Si7157DP-T1-GE3 Lower VDS (-20V), higher Qg (110nC), SO-8 package (larger footprint, higher RθJA = 62°C/W). Better suited for lower-voltage, higher-current discrete switching where thermal mass outweighs size constraints. Prefer when operating below 16V and board layout allows SO-8; avoid for >24V or space-constrained designs.

Compared with DMG3415L-7 and Si7157DP-T1-GE3, DMP3018SFK-7 uniquely balances -30V rating, AEC-Q101 qualification, and sub-2.5mm² footprint-making it optimal for automotive and high-density industrial load switching where voltage margin and reliability are non-negotiable.

Availability

DMP3018SFK-7 is available at Aetrix Electronics and suitable for USB power delivery systems, industrial PLC output stages, and automotive body control modules requiring stable component supply across production lifecycles.

Supply support for DMP3018SFK-7 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

Diodes Incorporated is a global manufacturer of discrete semiconductors and analog ICs, specializing in high-reliability power management, signal integrity, and protection solutions for industrial, automotive, and computing markets.

The DMP3018SFK belongs to Diodes' AEC-Q101-qualified PowerMOS family, engineered specifically for robust, space-efficient load switching in harsh environments where thermal performance and transient immunity are critical.

FAQ

What is the maximum allowable gate-source voltage for DMP3018SFK-7?

The absolute maximum VGS is ±25V per the datasheet's Maximum Ratings table. Exceeding this risks permanent gate oxide damage. For reliable operation, drive within -10V to 0V for full enhancement, leveraging its -1.6V typical VGS(th). Gate resistors should be sized to limit peak current during fast transitions.

Does DMP3018SFK-7 require an external gate resistor in load-switch applications?

Yes-especially when driven by low-impedance sources. A 10–47Ω series gate resistor suppresses ringing caused by Lg/Ciss resonance and controls dV/dt during turn-on/off. This prevents false triggering in adjacent circuits and reduces EMI, as confirmed by measured tr = 16.4–30ns and tf = 37.5–60ns.

Can DMP3018SFK-7 be used in parallel for higher current handling?

No-its negative temperature coefficient of RDS(on) causes current imbalance above ~70°C junction temperature. Parallel operation without individual source resistors leads to thermal runaway. For >10.2A, select a single higher-current MOSFET or redesign with active current sharing.

Is the thermal pad on the U-DFN2523-6 package electrically connected to any terminal?

Yes-the exposed thermal pad is internally connected to the Source (Pins 1 and 2). It must be soldered to a PCB copper pour tied to the system ground plane or source net to achieve the 55°C/W RθJA rating. Floating or unconnected pads degrade thermal performance by >40%.

DMP3018SFK-7 Specifications

Product attributes
Attribute value
Manufacturer:
Diodes Incorporated
Series:
-
Package/Case:
6-PowerUDFN
Packaging:
Tape & Reel (TR)
Product Status:
Active
FET Type:
P-Channel
Technology:
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):
30 V
Current - Continuous Drain (Id) @ 25°C:
10.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
Rds On (Max) @ Id, Vgs:
14.5mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id:
3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:
90 nC @ 10 V
Vgs (Max):
±25V
Input Capacitance (Ciss) (Max) @ Vds:
4414 pF @ 15 V
FET Feature:
-
Power Dissipation (Max):
1W (Ta)
Operating Temperature:
-55°C ~ 150°C (TJ)
Grade:
-
Qualification:
-
Mounting Type:
Surface Mount
Supplier Device Package:
U-DFN2523-6

DMP3018SFK-7 FAQ

1.How can I place an order for DMP3018SFK-7 through Aetrix?

Please submit a Request for Quotation (RFQ) for DMP3018SFK-7 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.

2.Are the price and stock information for DMP3018SFK-7 reliable?

The price and inventory of DMP3018SFK-7 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for DMP3018SFK-7 is usually 5 days.

3.What payment methods are accepted for DMP3018SFK-7?

We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for DMP3018SFK-7 transactions.

Note: Certain payment methods may incur a processing fee.

4.How is shipping managed for DMP3018SFK-7?

DMP3018SFK-7 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.

Once your DMP3018SFK-7 order is processed, you will receive an email with the shipment details and tracking number.

Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.

5.How can I obtain technical support or documentation for DMP3018SFK-7?

For technical support, including DMP3018SFK-7 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your DMP3018SFK-7 requirements.

6.How does Aetrix verify that DMP3018SFK-7 is sourced from the original manufacturer or authorized distributors?

All DMP3018SFK-7 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that DMP3018SFK-7 meets industry standards.

7.What is the process for return or replacement of DMP3018SFK-7?

All DMP3018SFK-7 units undergo pre-shipment inspection (PSI). If there is an issue with DMP3018SFK-7, returns or replacements are accepted under the following conditions:

1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.

2.The issue is reported within 90 days of delivery.

3.The DMP3018SFK-7 part is unused and in its original packaging.

Return procedure for DMP3018SFK-7:

1.Submit a request within 90 days.

2.Obtain a Return Material Authorization (RMA) from Aetrix.
