Infineon Technologies IPG16N10S4L61AATMA1
- Part No.:
- IPG16N10S4L61AATMA1
- Manufacturer:
- Infineon Technologies
- Category:
- FET, MOSFET Arrays
- Package:
- 8-PowerVDFN
- Datasheet:
-
IPG16N10S4L61AATMA1.pdf
- Description:
- MOSFET 2N-CH 100V 16A 8TDSON
- Quantity:
- Payment:

- Shipping:

Inventory:18,011
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
IPG16N10S4L61AATMA1 from Infineon Technologies is a dual-channel N-channel logic-level enhancement-mode MOSFET with 100 V VDS, 16 A continuous drain current (TC = 25 °C), and 61 mΩ RDS(on) at VGS = 10 V. It is AEC-Q101 qualified, rated for 175 °C operation, and housed in PG-TDSON-8-10 package - designed for automotive high-side/low-side switching in DC-DC converters and motor control.
For engineers reviewing the IPG16N10S4L61AATMA1 datasheet, IPG16N10S4L61AATMA1 pinout, IPG16N10S4L61AATMA1 application, or IPG16N10S4L61AATMA1 equivalent, key selection criteria include logic-level gate drive compatibility (VGS(th) = 1.1–2.1 V), 100% avalanche ruggedness (EAS = 33 mJ), thermal resistance (RthJC = 5.2 K/W), and AOI feasibility for automated optical inspection in automotive PCB assembly.
Technical Context
This dual N-channel MOSFET integrates two identical silicon die in a single PG-TDSON-8-10 thermally enhanced leadless package with exposed drain pad. Each channel supports independent logic-level gate drive (VGS(th) typ. 1.6 V) and delivers 16 A ID at TC = 25 °C with RDS(on) ≤ 61 mΩ at VGS = 10 V and ID = 16 A.
It features fully characterized dynamic parameters including Ciss = 845 pF (max), Qg = 11 nC (max), and tr/tf < 2 ns / < 4 ns, enabling high-frequency switching in synchronous buck regulators and H-bridge motor drivers under 100 V bus conditions.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VDS | 100 V - supports 48 V automotive systems with 2× safety margin against transients |
| RDS(on) max | 61 mΩ at VGS = 10 V, ID = 16 A - enables <1 W conduction loss at 10 A continuous load |
| ID cont | 16 A at TC = 25 °C - suitable for medium-power motor phases or DC-DC primary switches |
| EAS | 33 mJ - ensures robustness against inductive switching energy without external snubbers |
| RthJC | 5.2 K/W - allows >25 W power dissipation with moderate heatsinking on PCB copper area |
| VGS(th) | 1.1–2.1 V - compatible with 3.3 V and 5 V microcontroller GPIOs without level-shifting |
| Qg | 11 nC max - enables efficient gate driving with <1 W driver loss at 500 kHz switching |
Pinout & Package

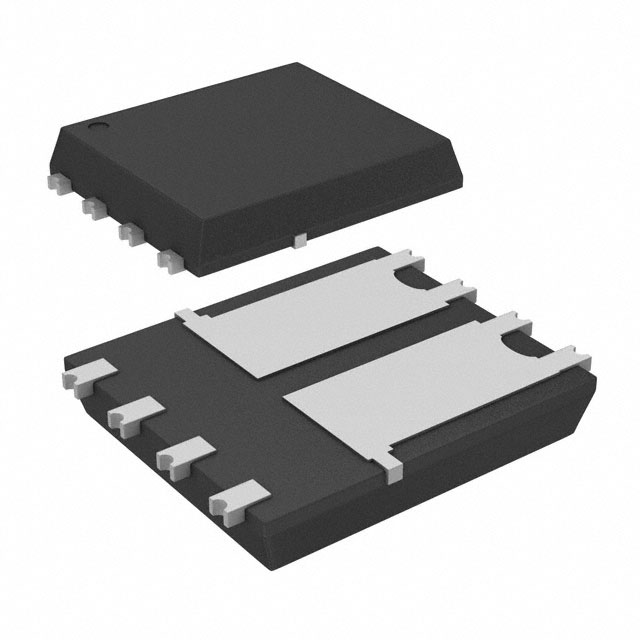

IPG16N10S4L61AATMA1 uses the PG-TDSON-8-10 (8-pin, 5 mm × 6 mm, 0.65 mm pitch) thermally optimized leadless package with dual drain pads for parallel current handling and low-inductance layout. The package is MSL1 rated for peak reflow up to 260 °C and supports automatic optical inspection (AOI).
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1, 2, 3, 4, 5, 6, 7, 8 (Drain) | Channel 1 & 2 Drain (shared) | Exposed copper pad connects both channels' drains - requires full-solder thermal pad for RthJC performance |
| Source 1 (Pin 1) | Channel 1 Source | Independent source terminal for half-bridge high-side configuration or dual low-side use |
| Source 2 (Pin 8) | Channel 2 Source | Electrically isolated source node - enables independent current sensing per channel |
| Gate 1 (Pin 2) | Channel 1 Gate | Logic-level input (VGS(th) ≤ 2.1 V) - direct drive from MCU PWM outputs |
| Gate 2 (Pin 7) | Channel 2 Gate | Separate gate control allows asynchronous or complementary switching of two loads |
Key Features
| Feature | Design Value |
|---|---|
| AEC-Q101 qualification | Validated for automotive under-hood applications including engine control and ADAS power stages |
| 100% unclamped inductive switching test | Guarantees single-pulse avalanche survival up to 33 mJ - eliminates need for external clamping diodes |
| Logic-level gate threshold | VGS(th) range 1.1–2.1 V enables reliable turn-on with 3.3 V controllers and reduces gate driver complexity |
| Thermal resistance RthJC = 5.2 K/W | Enables >29 W power dissipation with minimal PCB copper area - improves system power density |
| AOI-compatible marking | "4N10L61" laser marking meets IPC-A-610 Class 3 requirements for automated optical inspection in SMT lines |
Applications
| Automotive DC-DC Converters | Brushed DC Motor Drivers |
|---|---|
Use Scenario: 12 V to 5 V/3.3 V step-down converter in body control modules with transient immunity. IC Role / Device Role / Timing Role: Dual-channel synchronous rectifier and high-side switch operating at 250–500 kHz. Use Value: 61 mΩ RDS(on) and 11 nC Qg reduce conduction and switching losses, improving efficiency to >92% at 10 A output. | Use Scenario: Bidirectional 24 V brushed motor control in HVAC actuators and seat adjusters. IC Role / Device Role / Timing Role: Half-bridge high-side/low-side pair with independent gate control for direction and PWM speed regulation. Use Value: Dual-channel integration reduces PCB footprint by 40% vs discrete solutions while maintaining 175 °C junction rating for under-dash mounting. |
| Automotive LED Headlamp Drivers | Industrial Power Supplies |
Use Scenario: Constant-current LED string driver with overvoltage protection and PWM dimming. IC Role / Device Role / Timing Role: Low-side current sink switch with fast tf < 4 ns for precise 1–10 kHz dimming waveform fidelity. Use Value: 1.6 V typical VGS(th) ensures stable turn-on across temperature, eliminating flicker during cold cranking (-40 °C). | Use Scenario: 48 V input industrial SMPS with active OR-ing and hot-swap capability. IC Role / Device Role / Timing Role: Dual N-channel back-to-back switch for reverse polarity and inrush current protection. Use Value: 100 V VDS and 33 mJ EAS withstand 100 V surges and inductive kickback without failure during plug-in events. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar dual N-channel logic-level MOSFET applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| IPG16N10S4L61AATMA2 | Same die, alternate tape-and-reel packaging (1000 pcs/reel vs 3000 pcs/reel); identical electrical specs | No functional difference - only logistics variation for different production lot sizes | Select based on volume order requirements and line-side feeder compatibility |
| IRF7341TRPBF | Higher RDS(on) (100 mΩ), lower VDS (55 V), no AEC-Q101 qualification, SO-8 package | Limited to non-automotive 24 V systems; lacks avalanche ruggedness and high-temp reliability | Only acceptable for cost-sensitive industrial prototypes where automotive qualification is not required |
Compared with IPG16N10S4L61AATMA1, the A2 variant offers identical performance in alternate packaging, while IRF7341TRPBF trades automotive reliability and 100 V rating for lower cost in non-automotive 24 V applications - making the original part irreplaceable for AEC-Q101-compliant designs.
Availability
IPG16N10S4L61AATMA1 is available at Aetrix Electronics and suitable for automotive power conversion, brushed DC motor control, LED headlamp drivers, and industrial 48 V supply systems requiring stable component supply across extended temperature and lifetime requirements.
Supply support for IPG16N10S4L61AATMA1 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Infineon Technologies AG is a German semiconductor manufacturer specializing in power management, automotive electronics, and industrial control ICs, with global manufacturing and R&D centers.
This device belongs to the OptiMOS™-T2 Power-Transistor product line, engineered specifically for high-efficiency, high-reliability automotive power stages requiring AEC-Q101 compliance, logic-level drive, and robust avalanche performance.
FAQ
What is the maximum allowable gate-source voltage for IPG16N10S4L61AATMA1?
The absolute maximum VGS is ±16 V per datasheet Rev. 1.0. Exceeding this risks permanent gate oxide damage. Recommended operating range is –10 V to +12 V for reliable long-term performance, especially under temperature cycling. Gate drive circuits must include clamping (e.g., Zener diodes) if using higher-voltage drivers.
Does IPG16N10S4L61AATMA1 support paralleling of its two channels for higher current?
Yes - both channels share the same die characteristics and thermal path, enabling safe current sharing when gates are driven identically and sources are kept at equal potential. Layout symmetry and matched gate resistors are required to ensure <5% current imbalance at 32 A total load.
Is the PG-TDSON-8-10 package RoHS-compliant and halogen-free?
Yes - the device is certified as a Green Product per Infineon's documentation, meeting RoHS Directive 2011/65/EU and being completely halogen-free (no brominated flame retardants or chlorine-based materials). Full material declarations are available via Infineon's Eco Reports portal.
Can IPG16N10S4L61AATMA1 be used in linear mode (beyond saturation)?
No - it is not characterized or guaranteed for linear (ohmic) operation. Safe Operating Area (SOA) curves in the datasheet limit linear use to short pulses (<100 µs) below 20 V VDS and 8 A. Continuous linear operation risks thermal runaway due to positive temperature coefficient of RDS(on).
IPG16N10S4L61AATMA1 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Infineon Technologies
- Series:
- OptiMOS™
- Package/Case:
- 8-PowerVDFN
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Technology:
- MOSFET (Metal Oxide)
- Configuration:
- 2 N-Channel (Dual)
- FET Feature:
- Logic Level Gate
- Drain to Source Voltage (Vdss):
- 100V
- Current - Continuous Drain (Id) @ 25°C:
- 16A
- Rds On (Max) @ Id, Vgs:
- 61mOhm @ 16A, 10V
- Vgs(th) (Max) @ Id:
- 2.1V @ 90µA
- Gate Charge (Qg) (Max) @ Vgs:
- 11nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds:
- 845pF @ 25V
- Power - Max:
- 29W
- Operating Temperature:
- -55°C ~ 175°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Surface Mount, Wettable Flank
- Supplier Device Package:
- PG-TDSON-8-10
IPG16N10S4L61AATMA1 FAQ
1.How can I place an order for IPG16N10S4L61AATMA1 through Aetrix?
Please submit a Request for Quotation (RFQ) for IPG16N10S4L61AATMA1 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for IPG16N10S4L61AATMA1 reliable?
The price and inventory of IPG16N10S4L61AATMA1 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for IPG16N10S4L61AATMA1 is usually 5 days.
3.What payment methods are accepted for IPG16N10S4L61AATMA1?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for IPG16N10S4L61AATMA1 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for IPG16N10S4L61AATMA1?
IPG16N10S4L61AATMA1 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your IPG16N10S4L61AATMA1 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for IPG16N10S4L61AATMA1?
For technical support, including IPG16N10S4L61AATMA1 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your IPG16N10S4L61AATMA1 requirements.
6.How does Aetrix verify that IPG16N10S4L61AATMA1 is sourced from the original manufacturer or authorized distributors?
All IPG16N10S4L61AATMA1 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that IPG16N10S4L61AATMA1 meets industry standards.
7.What is the process for return or replacement of IPG16N10S4L61AATMA1?
All IPG16N10S4L61AATMA1 units undergo pre-shipment inspection (PSI). If there is an issue with IPG16N10S4L61AATMA1, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The IPG16N10S4L61AATMA1 part is unused and in its original packaging.
Return procedure for IPG16N10S4L61AATMA1:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
