STMicroelectronics STL50DN6F7

Part No.:
STL50DN6F7
Manufacturer:
STMicroelectronics
Category:
FET, MOSFET Arrays
Package:
8-PowerVDFN
Datasheet:
AetrixSTL50DN6F7.pdf
Description:
MOSFET 2N-CH 60V 57A POWERFLAT
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:3,392

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity*
Price
Name*
Company
Email*
Comments

Product details

Overview

STL50DN6F7 from STMicroelectronics is a dual N-channel 60 V Power MOSFET in PowerFLAT™ 5x6 double island package, delivering 9 mΩ typ. RDS(on) at VGS = 10 V and 57 A continuous drain current at TC = 25 °C. It features low Crss/Ciss ratio (53/1035 pF) for EMI immunity and high avalanche ruggedness, deployed in high-efficiency DC-DC converters and motor control half-bridges.

For engineers reviewing the STL50DN6F7 datasheet, STL50DN6F7 pinout, STL50DN6F7 application, or STL50DN6F7 equivalent, key selection criteria include its 60 V VDS, 9 mΩ RDS(on), 17 nC total gate charge, thermal resistance of 2.4 °C/W (j-case), and dual-channel layout enabling compact synchronous rectification or phase-leg switching.

Technical Context

This device implements STripFET™ F7 trench-gate technology to minimize conduction and switching losses simultaneously. Its dual-die configuration shares common source terminals and isolated drain islands, supporting independent gate drive while maintaining low parasitic inductance in high-frequency hard-switching topologies.

The internal structure enables fast switching with td(on) = 14.5 ns and tf = 8 ns under 4.7 Ω gate resistance, and supports unclamped inductive load operation up to 228 A pulsed drain current with robust avalanche energy rating per datasheet Figure 2 (SOA curve).

Key Specifications

ParameterValue and Actual Design Meaning
VDS60 V - Maximum blocking voltage for 48 V bus systems with margin
RDS(on) max11 mΩ - Ensures ≤0.63 W conduction loss at 7.5 A continuous
ID cont @ TC=25°C57 A - Supports high-current power stages without forced air cooling
Qg17 nC - Enables efficient 100–500 kHz switching with standard gate drivers
Rthj-case2.4 °C/W - Allows 26 W power dissipation before reaching 175 °C junction limit
Crss/Ciss53/1035 pF - Low ratio improves noise immunity in noisy automotive environments
VGS(th)2–4 V - Compatible with 3.3 V and 5 V logic-level gate drive

Pinout & Package

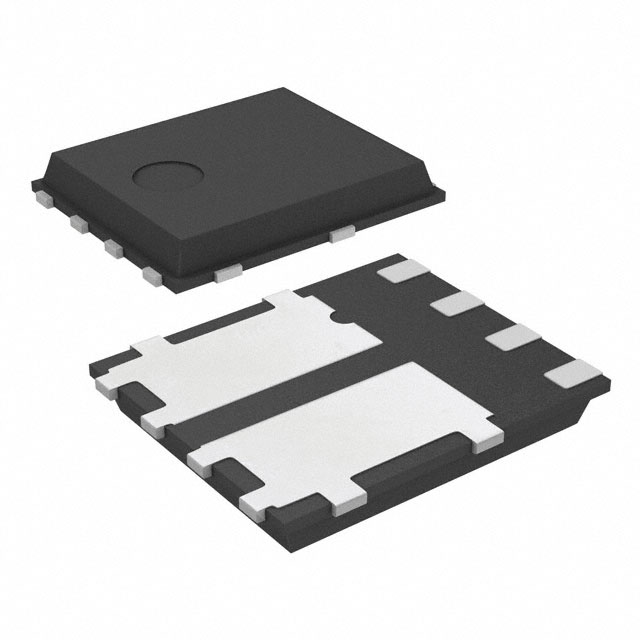

STL50DN6F7 uses the PowerFLAT™ 5x6 double island package (Type R), featuring two electrically isolated drain pads (D1, D2), shared source terminals (S1/S2 tied internally), and separate gate terminals (G1, G2). The thermally enhanced layout places both drain islands on the bottom side for direct PCB copper thermal spreading.

Pin/TerminalCircuit RoleDesign Meaning
G1Gate of Channel 1Independent control input for first N-channel MOSFET
G2Gate of Channel 2Independent control input for second N-channel MOSFET
S1/S2Common SourceInternally bonded source nodes-must be connected to same low-impedance ground plane
D1Drain of Channel 1Exposed copper pad on bottom side; primary thermal path and high-current output
D2Drain of Channel 2Second exposed copper pad; enables dual-phase or half-bridge high-side/low-side layout

Key Features

FeatureDesign Value
STripFET™ F7 trench processReduces RDS(on) × Qg FoM by >30% vs prior generation, improving efficiency at 200–500 kHz
Low Crss/Ciss ratio53/1035 pF = 0.051 - Minimizes Miller-induced shoot-through risk in synchronous buck converters
High avalanche ruggednessRated for repetitive unclamped inductive switching per Figure 16/17 - eliminates need for external snubbers in motor drives
PowerFLAT™ 5x6 double islandTwo isolated drain pads allow independent current routing and reduce PCB trace inductance by ≥40% vs SO-8
ECOPACK® compliantLead-free, halogen-free, RoHS-compliant construction with matte tin plating on exposed drains

Applications

DC-DC Synchronous Buck ConverterBrushless DC Motor Half-Bridge

Use Scenario: 12–48 V input, 3–12 V output, 20–40 A load in telecom power supplies.

IC Role / Device Role / Timing Role: High-side and low-side switch in single-phase buck stage; replaces discrete dual-MOSFET solutions.

Use Value: 9 mΩ RDS(on) cuts conduction loss by 35% vs comparable 12 mΩ parts; dual-island layout reduces layout parasitics for stable 500 kHz operation.

Use Scenario: 24 V battery-powered BLDC driver for power tools or drones.

IC Role / Device Role / Timing Role: Upper and lower switch in one leg of three-phase inverter; driven by 3-phase gate driver IC.

Use Value: 228 A pulsed ID capability handles motor stall currents; 26.8 ns trr enables clean commutation with minimal diode recovery loss.

Automotive Body Control ModuleIndustrial Solid-State Relay

Use Scenario: Load switching for headlights, HVAC fans, or seat actuators in 12 V/24 V systems.

IC Role / Device Role / Timing Role: High-side switch with integrated diagnostics; used with external current sense and protection logic.

Use Value: -55 to 175 °C operating range meets AEC-Q101 requirements; 60 V VDS withstands load dump transients up to ISO 7637-2 Pulse 5a.

Use Scenario: Replacement for electromechanical relays in PLC I/O modules and HVAC controllers.

IC Role / Device Role / Timing Role: Bidirectional load switch controlling resistive or inductive AC/DC loads up to 5 A RMS.

Use Value: 11 mΩ RDS(on) limits self-heating to <1.5 W at 15 A; dual-channel allows redundant switching or parallel operation for higher current.

Equivalent & Alternatives

The following parts are listed as comparable options for similar dual N-channel 60 V power MOSFET applications.

Alternative PartTechnical DifferenceApplication DifferenceSelection Advice
IRF7759L2TRPBFRDS(on) = 12.5 mΩ @ 10 V; Qg = 22 nC; single-channel dual-die in PQFN 5x6No internal source tie - requires external source connection; higher gate charge increases driver lossPrefer when discrete gate control of each channel is required and layout allows separate source routing
DMTH6006LPSQ-13RDS(on) = 6.5 mΩ @ 10 V; 60 V rating; AEC-Q101 qualified; single-channel in PowerFLAT 5x6Single-channel only; requires two devices for dual function; lower RDS(on) but higher cost per switchChoose when highest efficiency is critical and board area permits duplication

Compared with IRF7759L2TRPBF and DMTH6006LPSQ-13, STL50DN6F7 uniquely integrates dual channels with common-source topology and industry-leading FoM, offering optimal balance of conduction loss, switching speed, and PCB area in space-constrained 48 V systems.

Availability

STL50DN6F7 is available at Aetrix Electronics and suitable for DC-DC converters, BLDC motor drives, automotive body control modules, and industrial solid-state relays requiring stable component supply across extended temperature ranges and long production lifecycles.

Supply support for STL50DN6F7 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

STMicroelectronics is a global semiconductor leader headquartered in Geneva, designing and manufacturing microcontrollers, power transistors, sensors, and analog ICs for industrial, automotive, and consumer markets.

STL50DN6F7 belongs to the STripFET™ F7 Power MOSFET product line, engineered specifically for high-frequency, high-efficiency power conversion in space- and thermal-constrained applications such as server VRMs and e-bike controllers.

FAQ

What is the maximum allowable PCB temperature for continuous operation?

The datasheet specifies ID = 11 A continuous at Tpcb = 100 °C, based on Rthj-pcb = 31.3 °C/W for a 1 in² FR-4 board with 2 oz Cu. Exceeding this temperature requires derating per Figure 3 (thermal impedance vs time) or improved copper area/thermal vias.

Can STL50DN6F7 be used in linear mode (constant current regulation)?

No - it is not characterized or rated for linear-mode operation. The Safe Operating Area (Figure 2) shows limited DC capability beyond 10 A at VDS > 10 V. For constant-current applications, use dedicated linear regulators or MOSFETs explicitly specified for analog operation.

Is the internal source connection between S1 and S2 accessible externally?

No - S1 and S2 are bonded together internally and exit the package via a single source terminal (pin 3 in footprint). External separation is not possible; the device functions as a true common-source dual switch, not two independent MOSFETs.

Does STL50DN6F7 support paralleling multiple units for higher current?

Yes - its positive temperature coefficient of RDS(on) (Figure 10) ensures inherent current sharing. However, layout symmetry (matched gate and source inductance) is critical; mismatch >10% in gate loop inductance may cause dynamic current imbalance during switching transitions.

STL50DN6F7 Specifications

Product attributes
Attribute value
Manufacturer:
STMicroelectronics
Series:
STripFET™
Package/Case:
8-PowerVDFN
Packaging:
Tape & Reel (TR)
Product Status:
Active
Technology:
MOSFET (Metal Oxide)
Configuration:
2 N-Channel (Dual)
FET Feature:
-
Drain to Source Voltage (Vdss):
60V
Current - Continuous Drain (Id) @ 25°C:
57A (Tc)
Rds On (Max) @ Id, Vgs:
11mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id:
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:
17nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:
1035pF @ 30V
Power - Max:
62.5W
Operating Temperature:
-55°C ~ 175°C (TJ)
Grade:
-
Qualification:
-
Mounting Type:
Surface Mount
Supplier Device Package:
PowerFlat™ (5x6)
