STMicroelectronics STL7N60M2
- Part No.:
- STL7N60M2
- Manufacturer:
- STMicroelectronics
- Category:
- FETs, MOSFETs
- Package:
- 8-PowerVDFN
- Datasheet:
-
STL7N60M2.pdf
- Description:
- MOSFET N-CH 600V 5A POWERFLAT
- Quantity:
- Payment:
- Shipping:
Inventory:2,900
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
STL7N60M2 from STMicroelectronics is an N-channel 600 V, 5 A Power MOSFET using MDmesh™ M2 technology in a PowerFLAT™ 5x5 package. It delivers 0.92 Ω typ. RDS(on), 8.8 nC total gate charge, and 15 V/ns diode recovery dv/dt ruggedness-enabling high-efficiency flyback and PFC stages in industrial AC-DC power supplies.
For engineers reviewing the STL7N60M2 datasheet, STL7N60M2 pinout, STL7N60M2 application, or STL7N60M2 equivalent, key selection criteria include its 1.05 Ω max RDS(on) at 10 VGS, 150 °C max junction temperature, Zener-protected gate, and 100% avalanche tested reliability for hard-switched topologies.
Technical Context
This device employs ST's MDmesh™ M2 strip-based vertical structure to minimize conduction loss while optimizing switching performance. Its low Coss (15.7 pF typ.) and ultra-low Qgd/Qgs ratio (4.3/1.8 nC) reduce switching losses and improve EMI behavior in high-frequency SMPS designs.
The integrated Zener-protected gate withstands ±25 V transient stress, and the 80 mJ single-pulse avalanche energy rating supports unclamped inductive switching. Its 31.3 °C/W Rthj-pcb enables thermal management on standard FR-4 PCBs without heatsinks in ≤1.2 A continuous Tpcb applications.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VDS Rating | 600 V - Supports 400 V AC input rectified systems with 50% safety margin |
| RDS(on) max | 1.05 Ω @ 10 VGS, 25 °C - Enables <1.3 W conduction loss at 5 A DC |
| Qg | 8.8 nC - Reduces gate drive power and allows use of low-current drivers |
| Coss eq. | 75.5 pF - Low stored output capacitance energy (EOSS < 1 µJ @ 400 V) |
| ID cont. @ TC | 5 A @ 25 °C case - Sustains full load in compact heatsink-limited designs |
| Tj max | 150 °C - Allows operation in sealed enclosures with ambient up to 85 °C |
| EAS | 80 mJ - Withstands repetitive unclamped inductive spikes in PFC boost stages |
Pinout & Package

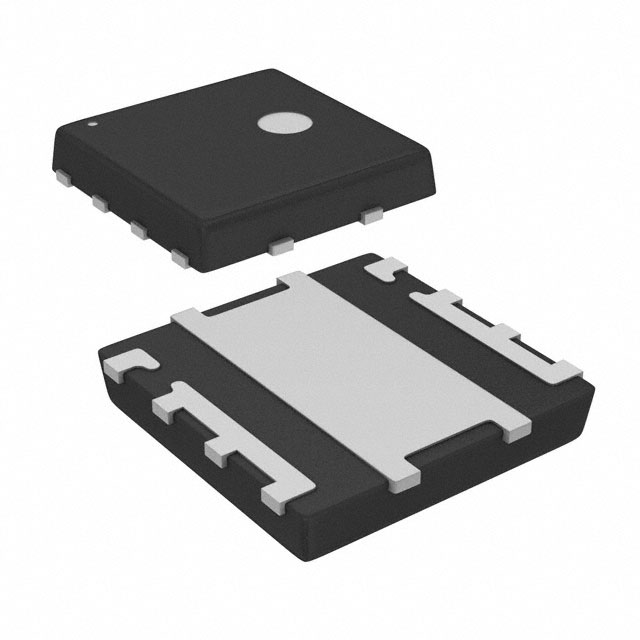

STL7N60M2 uses the PowerFLAT™ 5x5 surface-mount package (ECOPACK® compliant), measuring 5.0 × 5.0 × 1.0 mm with exposed drain pad for thermal conduction. Pin 1 is marked by a notch on the top side.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | No Connect | Internally isolated; must remain floating or grounded per layout guidelines |
| 2, 3, 4, 7, 8, 9 | Source | Common source terminals tied to internal die; low-inductance parallel routing required |
| 5, 6, 11, 12 | Drain | Exposed drain pad + four perimeter pins - primary thermal path to PCB copper |
| 10 | Gate | Single gate input; requires RC snubber if driving >100 kHz due to 7.2 Ω intrinsic RG |
Key Features
| Feature | Design Value |
|---|---|
| MDmesh™ M2 technology | Optimized strip layout reduces RDS(on) × area product by 35% vs prior generation |
| Zener-protected gate | Integrated 25 V bidirectional clamp eliminates need for external gate protection diodes |
| 100% avalanche tested | Each unit validated for single-pulse EAS ≥ 80 mJ - ensures robustness in overcurrent events |
| Low Coss profile | 15.7 pF typ. output capacitance minimizes turn-off loss and improves ZVS capability |
| PowerFLAT™ 5x5 package | 0.83 °C/W Rthj-case enables >67 W dissipation with minimal footprint and no leads |
Applications
| Industrial AC-DC Adapters | Server PSU Primary Switch |
|---|---|
|
Use Scenario: 300–500 W open-frame power supply for telecom equipment operating at 100–240 VAC input. IC Role / Device Role / Timing Role: Primary-side switching transistor in continuous conduction mode (CCM) PFC boost stage. Use Value: 0.92 Ω RDS(on) and 8.8 nC Qg enable >95% efficiency at 100 kHz switching frequency with minimal gate drive loss. |
Use Scenario: High-density 1U server power supply requiring high power density and thermal resilience. IC Role / Device Role / Timing Role: Main switch in LLC resonant half-bridge primary side, driven at 300–500 kHz. Use Value: Low Coss (15.7 pF) and optimized Coss linearity support zero-voltage switching across wide load range. |
| LED Driver Flyback | Solar Microinverter DC-DC Stage |
|
Use Scenario: Isolated constant-current LED driver for street lighting with 300–400 VDC bus. IC Role / Device Role / Timing Role: Primary-side MOSFET in quasi-resonant flyback converter operating at variable frequency up to 130 kHz. Use Value: 15 V/ns diode recovery dv/dt ruggedness prevents false triggering during transformer reset. |
Use Scenario: DC-DC boost stage in single-phase microinverter interfacing PV panels to 400 V grid. IC Role / Device Role / Timing Role: High-side switch in interleaved boost converter handling 10–15 A DC input current. Use Value: 150 °C Tj rating and 31.3 °C/W Rthj-pcb allow sustained operation under 65 °C ambient without forced air. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar high-voltage power MOSFET applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| IPP60R190C6 | 650 V, 190 mΩ RDS(on), TO-220FP package, higher Qg (29 nC) | Requires heatsink; better suited for lower-frequency, higher-current (<10 A) designs | Choose when board space allows through-hole mounting and thermal mass is available |
| STW20NK60Z | 600 V, 200 mΩ RDS(on), TO-247 package, Zener-protected, but higher Coss (110 pF) | Higher switching loss; used in legacy 50–100 kHz fixed-frequency converters | Prefer only when replacing obsolete designs where layout and drive circuitry are unchanged |
Compared with IPP60R190C6 and STW20NK60Z, STL7N60M2 offers superior power density and high-frequency efficiency due to its 5x5 package, lower Qg, and optimized Coss profile-making it optimal for space-constrained, >100 kHz SMPS where thermal interface to PCB is primary cooling path.
Availability
STL7N60M2 is available at Aetrix Electronics and suitable for industrial AC-DC adapters, server PSU primary switches, and LED driver flyback converters requiring stable component supply and long-term production continuity.
Supply support for STL7N60M2 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
STMicroelectronics is a global semiconductor leader headquartered in Geneva, Switzerland, designing and manufacturing analog, MCU, power, and sensor solutions for industrial, automotive, and consumer markets.
This device belongs to ST's MDmesh™ M2 high-voltage Power MOSFET product line, engineered specifically for high-efficiency, high-frequency switched-mode power supplies demanding low RDS(on), low gate charge, and rugged avalanche performance.
FAQ
What is the maximum continuous drain current at PCB temperature of 100 °C?
The STL7N60M2 supports 0.8 A continuous drain current when mounted on a 1-inch² FR-4 PCB with 2 oz copper at 100 °C PCB temperature. This rating reflects its 31.3 °C/W junction-to-PCB thermal resistance and is validated under pulsed conditions (t < 10 s, 1.5% duty cycle).
Does STL7N60M2 require external gate protection?
No. The device integrates a bidirectional Zener diode between gate and source, rated for ±25 V, eliminating the need for external gate protection components in standard gate drive configurations. This simplifies layout and improves system reliability against ESD and transient overvoltage.
Can STL7N60M2 be used in avalanche mode repeatedly?
Yes. Each unit undergoes 100% production avalanche testing at IAR = 1 A and EAS = 80 mJ (single pulse, Tj = 25 °C). Repetitive avalanche operation is permitted within SOA limits defined in Figure 2, provided peak junction temperature remains below 150 °C and pulse width is constrained by thermal time constants.
What is the recommended PCB footprint for thermal performance?
ST recommends a minimum 200 mm² exposed copper area connected to pins 5/6/11/12 and the bottom drain pad, with ≥4 thermal vias (0.3 mm diameter, 0.8 mm pitch) to inner ground plane. Figure 21 in DocID027417 Rev 1 specifies exact dimensions: 4.05–4.25 mm D1 width and 2.25–2.45 mm E2 length for solder mask opening.
STL7N60M2 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Series:
- MDmesh™
- Package/Case:
- 8-PowerVDFN
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 600 V
- Current - Continuous Drain (Id) @ 25°C:
- 5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):
- 10V
- Rds On (Max) @ Id, Vgs:
- 1.05Ohm @ 2A, 10V
- Vgs(th) (Max) @ Id:
- 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:
- 8.8 nC @ 10 V
- Vgs (Max):
- ±25V
- Input Capacitance (Ciss) (Max) @ Vds:
- 271 pF @ 100 V
- FET Feature:
- -
- Power Dissipation (Max):
- 4W (Ta), 67W (Tc)
- Operating Temperature:
- 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- PowerFLAT™ (5x5)
STL7N60M2 FAQ
1.How can I place an order for STL7N60M2 through Aetrix?
Please submit a Request for Quotation (RFQ) for STL7N60M2 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for STL7N60M2 reliable?
The price and inventory of STL7N60M2 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for STL7N60M2 is usually 5 days.
3.What payment methods are accepted for STL7N60M2?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for STL7N60M2 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for STL7N60M2?
STL7N60M2 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your STL7N60M2 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for STL7N60M2?
For technical support, including STL7N60M2 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your STL7N60M2 requirements.
6.How does Aetrix verify that STL7N60M2 is sourced from the original manufacturer or authorized distributors?
All STL7N60M2 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that STL7N60M2 meets industry standards.
7.What is the process for return or replacement of STL7N60M2?
All STL7N60M2 units undergo pre-shipment inspection (PSI). If there is an issue with STL7N60M2, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The STL7N60M2 part is unused and in its original packaging.
Return procedure for STL7N60M2:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
